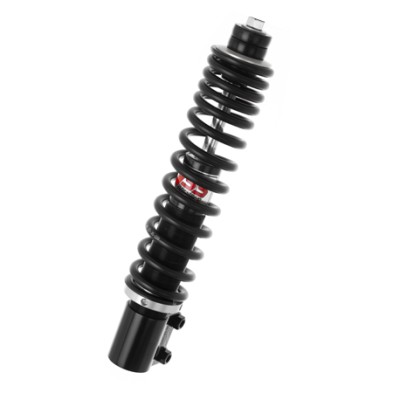

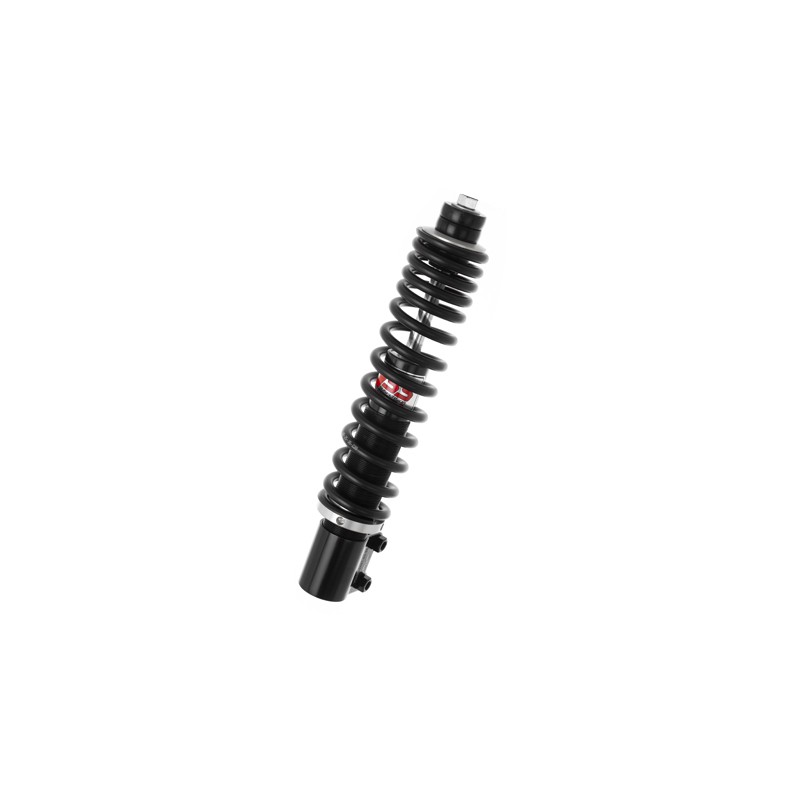

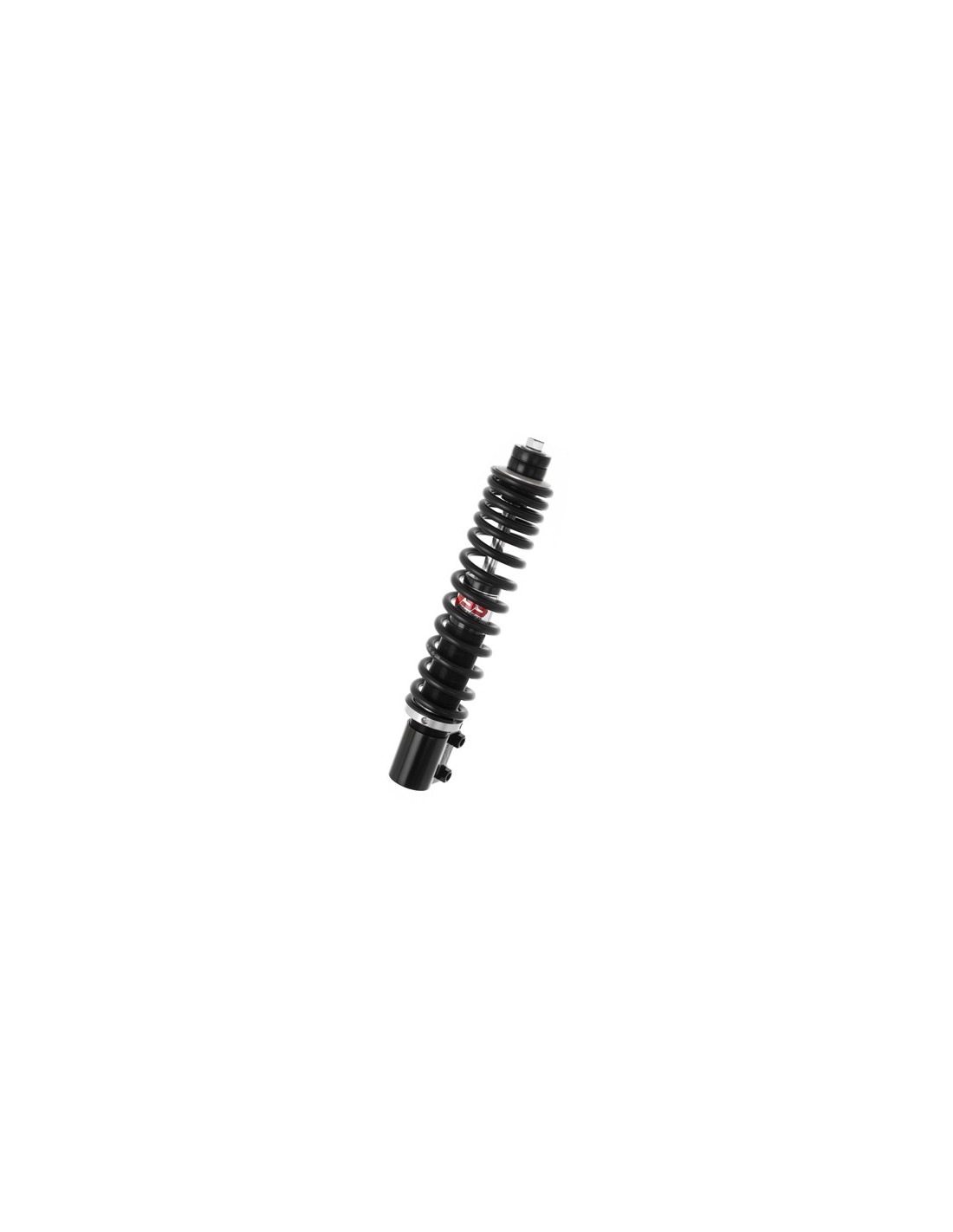

YSS SHOCK ABSORBER VD222-240T-02-88
HIGH-PERFORMANCE MONO SHOCK ABSORBER
VD222-240T-02-88
High-performance twin-tube hydraulic shock absorber. PRO-X offers high durability, extended service life, and a comfortable ride.
YSS SHOCK ABSORBER VD222-240T-02-88
HIGH-PERFORMANCE MONO SHOCK ABSORBER
VD222-240T-02-88
High-performance twin-tube hydraulic shock absorber. PRO-X offers high durability, extended service life, and a comfortable ride.
VD222-240T-02 / HEXAGON 125 (2T/4T) 1997-2000
VD222-240T-02 / HEXAGON 150 (2T) 1994-1998
VD222-240T-02 / HEXAGON 180 LXT (2T LC) 1998-2000
VD222-240T-02 / HEXAGON 250 GT (4T LC) 1998-2001
VD222-240T-02 / VESPA GT 125 4T LC 2003-2006
VD222-240T-02 / VESPA GT 200 4T LC 2003-2006
VD222-240T-02 / VESPA GT 200 L 4T LC (GT) 2003-2006
VD222-240T-02 / VESPA GT 250 GT 60º I.E. 2006-2007
VD222-240T-02 / VESPA GTS 125 4T 2013-2017
VD222-240T-02 / VESPA GTS 125 4T ABS 2017-2018
VD222-240T-02 / VESPA GTS 125 4T I.E. 4V IGET 2016-2018
VD222-240T-02 / VESPA GTS 125 4T I.E. 4V IGET 2018-2020
VD222-240T-02 / VESPA GTS 125 4T I.E. 4V IGET SUPER 2018-2020
VD222-240T-02 / VESPA GTS 125 4T I.E. 4V IGET SUPER SPORT 2016-2018
VD222-240T-02 / VESPA GTS 125 4T I.E. 4V IGET SUPERTECH 4V IGET 2018-2020
VD222-240T-02 / VESPA GTS 125 4T I.E. 4V IGET TOURING 2016-2018
VD222-240T-02 / VESPA GTS 125 4T I.E. 4V IGET TOURING 2018-2020
VD222-240T-02 / VESPA GTS 150 4T 3V IE SUPER 2014-2017
VD222-240T-02 / VESPA GTS 150 4T 4V IGET/TOURING 2016-2018
VD222-240T-02 / VESPA GTS 150 4T 4V IGET/TOURING ABS 2017-2019
VD222-240T-02 / VESPA GTS 250 2005-2014
VD222-240T-02 / VESPA GTS 250 2007-2009
VD222-240T-02 / VESPA GTS 250 ABS 2005-2009
VD222-240T-02 / VESPA GTS 300 2008-2016
VD222-240T-02 / VESPA GTS 300 2014-2016
VD222-240T-02 / VESPA GTS 300 4V HPE 2019-2020
VD222-240T-02 / VESPA GTS 300 ABS 2016-2018
VD222-240T-02 / VESPA GTS 300 ABS 2017-2018
VD222-240T-02 / VESPA GTS I.E. SUPER 125 85/B EURO3 2011-2011
VD222-240T-02 / VESPA GTS I.E. SUPER 125 SPORT 2011-2011
VD222-240T-02 / VESPA GTS I.E. SUPER 300 2008-2010
VD222-240T-02 / VESPA GTS I.E. SUPER 300 SPORT 2010-2010
VD222-240T-02 / VESPA GTS I.E. SUPER 300 SPORT 742/B 2011-2011
VD222-240T-02 / VESPA GTS I.E. SUPER 300 SPORT 85/B 2011-2011
VD222-240T-02 / VESPA GTS I.E. SUPER 300 TOURING 2011-2012
VD222-240T-02 / VESPA GTV 125 EURO 3 2006-2006
VD222-240T-02 / VESPA GTV 125 NAVY EURO 3 2007-2008
VD222-240T-02 / VESPA GTV 250 EURO 3 2006-2009
VD222-240T-02 / VESPA GTV 250 IE 2007-2008
VD222-240T-02 / VESPA GTV 250 NAVY EURO 3 2007-2007
VD222-240T-02 / VESPA GTV 300 4V 2010-2013
VD222-240T-02 / VESPA GTV 300 IE SEI GIORNI 2017-2018
VD222-240T-02 / VESPA GTV 300 IE SEI GIORNI 4V HPE 2019-2021
VD222-240T-02 / VESPA GTV 300 SEI GIORNI EURO 4 2017-2017
VD222-240T-02 / VESPA GTV 300 VIA MONTENAPOLEONE 2010-2010
How to interpret the YSS product reference:
Digit 1 (product group):
F: Front double shock absorber.
V: Front monotube shock absorber.
R: Rear double shock absorber.
M: Rear monotube shock absorber.
T: Rear scooter double shock absorber.
O: Rear scooter monotube shock absorber.
I: Inner tube.
K: Front cartridge.
Digit 2 (product type):
G, C: Piggy Back gas shock absorber with external upper reservoir (G=Top Line and C=Eco Line).
U, K: Piggy Back gas shock absorber with external reservoir button (U=Top Line and K=Eco Line).
X, O: Gas shock absorber with external Piggy Back reservoir in the hose (X=Top Line and O=Eco Line).
A: Gas shock absorber with split piston.
Z, E: Emulsion gas shock absorber (Z=Top Line and E=Eco Line). T: Triple piston (ATPD).
B: Gas - DTG.
D: Shock absorber with double hydraulic tube.
S: Shock absorber with 1 hydraulic tube.
Digit 3-5 (piston and shaft diameter):
168: 16 mm piston + 8 mm shaft.
188: 18 mm piston + 8 mm shaft.
220: 22 mm piston + 10 mm shaft.
222: 16 mm piston + 12 mm shaft.
302: 30mm piston + 12mm shaft.
304: 30mm piston + 14mm shaft.
306: 30mm piston + 16mm shaft.
308: 30mm piston + 8mm shaft.
362: 36mm piston + 12mm shaft.
364: 36mm piston + 14mm shaft.
366: 36mm piston + 16mm shaft.
456: 45mm piston + 16mm shaft.
506: 50mm piston + 16mm shaft.
3020: 30mm piston + 20mm shaft.
Digit 6: This digit will be marked with a dash (-) or a slash (/):
Digit 7: This digit indicates the length of the shock absorber in millimeters. Digit 10-13 (characteristics):
P: Spring preload adjustment using a scale.
T: Spring preload adjustment using a thread.
H: Hydraulic spring preload adjustment.
HI: Hydraulic spring preload adjustment (on the hose).
H2: Adjustment with pneumatic preload regulator.
MI: Mechanical preload adjustment.
R: Adjustable rebound.
C: Adjustable compression.
W: Adjustable high and low speed compression.
V: VBSC- High and low compression.
L: Adjustable height +5/-5mm.
Digit 14: This digit will be marked with a dash (-) or a slash (/):
Digit 15-16: This digit indicates the specification sheet number. Digit 18-19 (tube/spring/reservoir color (optional):
1: Chrome / 9 HT (Hard) / Pearl / Bronze. 2: White / A Silver. 3: Gold / P Pink. 4: Yellow / Z Zinc. 5: Red / T Platinum Gray. 6: Blue / Q Turqoise. 7: Orange / G Gray. 8: Black / Non Reservoir.
Digit 20 (optional):
AB: Shock with bearing and 30 clicks of compression.
B: Black Edition shock (complete).
F: Off-Road shock.
I: Idol shock (90-degree reservoir against the shock body).
O: Shock with off-set fork or eye-let.
R: Racing Product.
S: Classic Series (Black decal instead of red)
V: Barrel Spring.
