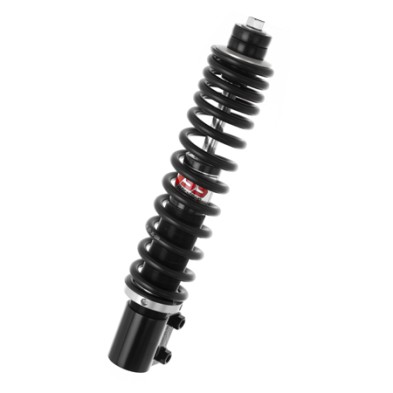

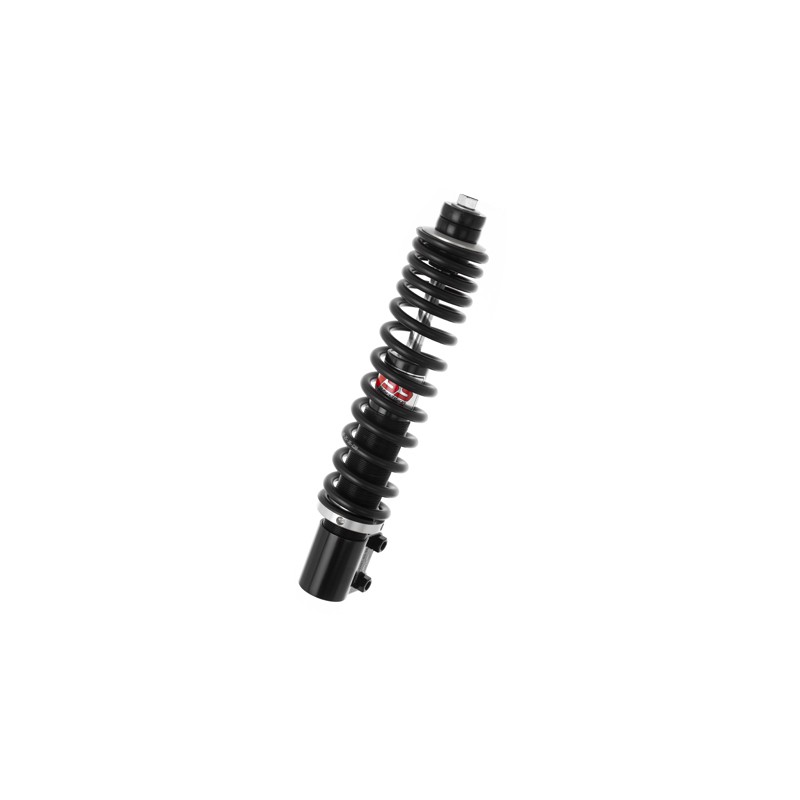

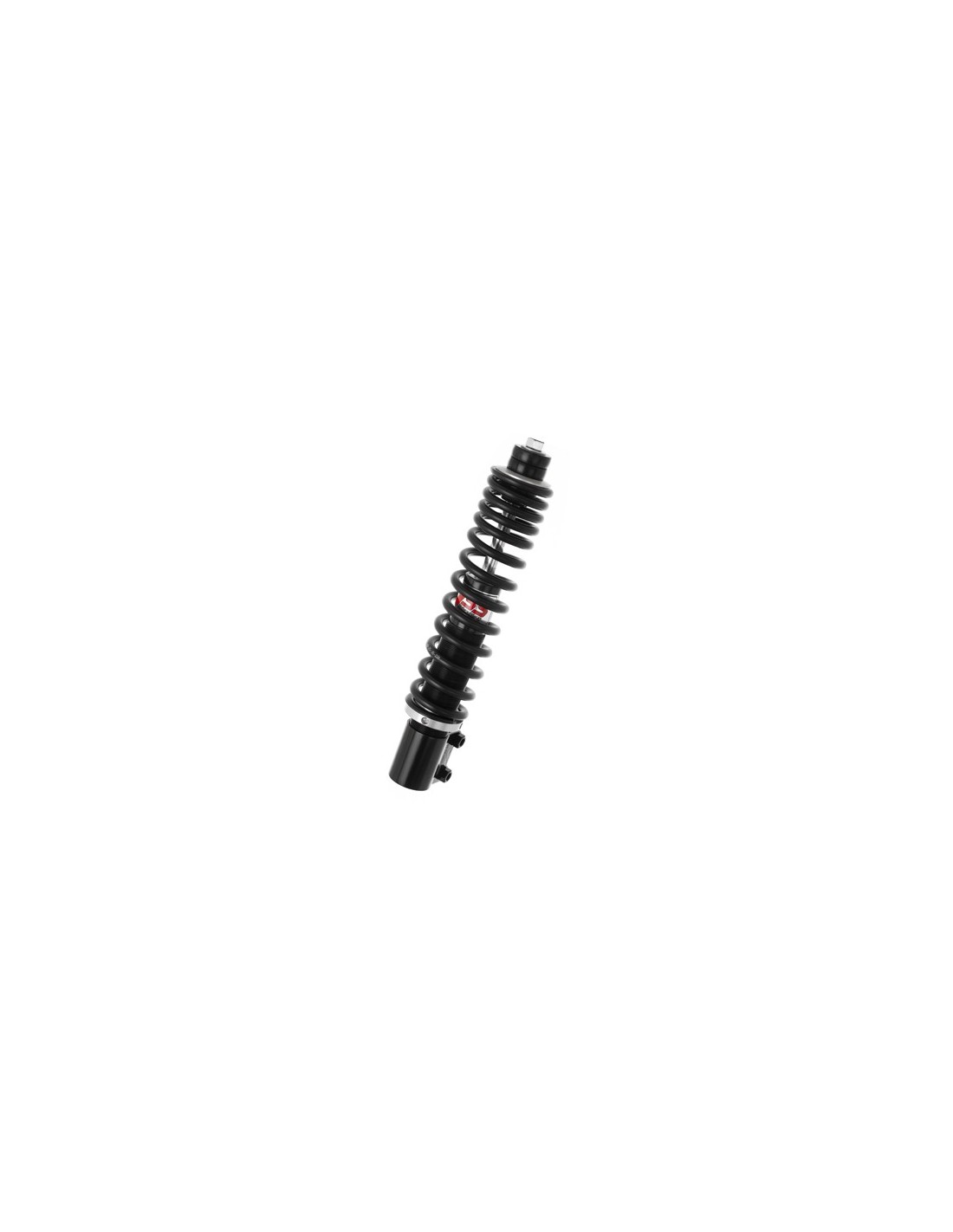

YSS SHOCK ABSORBER VD222-210T-01-88
HIGH-PERFORMANCE MONO SHOCK ABSORBER
VD222-210T-01-88
High-performance twin-tube hydraulic shock absorber.
PRO-X offers high durability, longer service life, and a comfortable ride.
YSS SHOCK ABSORBER VD222-210T-01-88
HIGH-PERFORMANCE MONO SHOCK ABSORBER
VD222-210T-01-88
High-performance twin-tube hydraulic shock absorber.
PRO-X offers high durability, longer service life, and a comfortable ride.
VD222-210T-01 / QUARTZ 50 1992-1997
VD222-210T-01 / SFERA 50 (NSL) 1991-1995
VD222-210T-01 / SFERA 50 (RST) 1991-1995
VD222-210T-01 / SFERA 80 1991-1996
VD222-210T-01 / SKR 125 1994-1997
VD222-210T-01 / SKR 150 1997-1998
VD222-210T-01 / VESPA ET2 2T 1997-2005
VD222-210T-01 / VESPA ET2 CAT (EURO 2) 2T 1997-2005
VD222-210T-01 / VESPA ET2 INJECTION 2T 1997-2000
VD222-210T-01 / VESPA ET4 125 ET4 ALT 1996-2000
VD222-210T-01 / VESPA ET4 125 LEADER 2000-2005
VD222-210T-01 / VESPA ET4 150 ET4 ALT 1996-1999
VD222-210T-01 / VESPA ET4 150 LEADER 2000-2005
VD222-210T-01 / VESPA ET4 50 2000-2005
VD222-210T-01 / VESPA LX 125 4T 2V 2005-2011
VD222-210T-01 / VESPA LX 125 4T I.E.2V 2009-2012
VD222-210T-01 / VESPA LX 125 4T I.E.3V 2012-2013
VD222-210T-01 / VESPA LX 125 4T I.E.3V TOURING 2005-2009
VD222-210T-01 / VESPA LX 125 4T I.E.3V TOURING 2012-2013
VD222-210T-01 / VESPA LX 125 EURO 3 2006-2008
VD222-210T-01 / VESPA LX 125 EURO 3 IE 2009-2011
VD222-210T-01 / VESPA LX 125 NAVY EURO 3 2007-2008
VD222-210T-01 / VESPA LX 150 2005-2009
VD222-210T-01 / VESPA LX 150 2006-2009
VD222-210T-01 / VESPA LX 150 4T 2009-2012
VD222-210T-01 / VESPA LX 150 4T I.E.2V 2012-2013
VD222-210T-01 / VESPA LX 150 4T I.E.3V 2012-2014
VD222-210T-01 / VESPA LX 150 4T I.E.3V TOURING 2012-2014
VD222-210T-01 / VESPA LX 150 EURO3 IE TOURING 2009-2012
VD222-210T-01 / VESPA LX 50 2T 1998-2013
VD222-210T-01 / VESPA LX 50 2T TOURING 1998-2013
VD222-210T-01 / VESPA LX 50 4T 2V 2005-2009
VD222-210T-01 / VESPA LX 50 4T 4V 2009-2013
VD222-210T-01 / VESPA LX 50 4T 4V TOURING 2009-2013
VD222-210T-01 / VESPA LXV 125 4T 2006-2009
VD222-210T-01 / VESPA LXV 125 4T 2V 2007-2009
VD222-210T-01 / VESPA LXV 125 4T I.E.2V 2010-2013
VD222-210T-01 / VESPA LXV 125 4T I.E.3V 2013-2016
VD222-210T-01 / VESPA LXV 150 2V 2007-2009
VD222-210T-01 / VESPA LXV 150 4T I.E.3V 2013-2016
VD222-210T-01 / VESPA LXV 50 2T NAVY 2006-2009
VD222-210T-01 / VESPA S 125 4T 2V 2007-2010
VD222-210T-01 / VESPA S 125 4T 2V IE 2009-2012
VD222-210T-01 / VESPA S 125 4T 3V 2012-2015
VD222-210T-01 / VESPA S 150 4T 2V 2007-2010
VD222-210T-01 / VESPA S 150 4T 2V 2009-2013
VD222-210T-01 / VESPA S 150 4T 3V 2012-2015
VD222-210T-01 / VESPA S 50 2T 2007-2012
VD222-210T-01 / VESPA S 50 2T COLLEGE 2007-2012
VD222-210T-01 / VESPA S 50 2T SPORT 2007-2012
VD222-210T-01 / VESPA S 50 4T 2V 2010-2012
VD222-210T-01 / VESPA S 50 4T 2V SPORT 4V 2010-2012
VD222-210T-01 / VESPA S 50 4T 4V 2008-2013
VD222-210T-01 / VESPA S 50 4T SPORT 4V 2008-2013
VD222-210T-01 / ZIP 50 SP 1996-2000
How to interpret the YSS product reference:
Digit 1 (product group):
F: Front double shock absorber.
V: Front monotube shock absorber.
R: Rear double shock absorber.
M: Rear monotube shock absorber.
T: Rear scooter double shock absorber.
O: Rear scooter monotube shock absorber.
I: Inner tube.
K: Front cartridge.
Digit 2 (product type):
G, C: Piggy Back gas shock absorber with external upper reservoir (G=Top Line and C=Eco Line).
U, K: Piggy Back gas shock absorber with external reservoir button (U=Top Line and K=Eco Line).
X, O: Gas shock absorber with external Piggy Back reservoir in the hose (X=Top Line and O=Eco Line).
A: Gas shock absorber with split piston.
Z, E: Emulsion gas shock absorber (Z=Top Line and E=Eco Line). T: Triple piston (ATPD).
B: Gas - DTG.
D: Shock absorber with double hydraulic tube.
S: Shock absorber with 1 hydraulic tube.
Digit 3-5 (piston and shaft diameter):
168: 16 mm piston + 8 mm shaft.
188: 18 mm piston + 8 mm shaft.
220: 22 mm piston + 10 mm shaft.
222: 16 mm piston + 12 mm shaft.
302: 30mm piston + 12mm shaft.
304: 30mm piston + 14mm shaft.
306: 30mm piston + 16mm shaft.
308: 30mm piston + 8mm shaft.
362: 36mm piston + 12mm shaft.
364: 36mm piston + 14mm shaft.
366: 36mm piston + 16mm shaft.
456: 45mm piston + 16mm shaft.
506: 50mm piston + 16mm shaft.
3020: 30mm piston + 20mm shaft.
Digit 6: This digit will be marked with a dash (-) or a slash (/):
Digit 7: This digit indicates the length of the shock absorber in millimeters. Digit 10-13 (characteristics):
P: Spring preload adjustment using a scale.
T: Spring preload adjustment using a thread.
H: Hydraulic spring preload adjustment.
HI: Hydraulic spring preload adjustment (on the hose).
H2: Adjustment with pneumatic preload regulator.
MI: Mechanical preload adjustment.
R: Adjustable rebound.
C: Adjustable compression.
W: Adjustable high and low speed compression.
V: VBSC- High and low compression.
L: Adjustable height +5/-5mm.
Digit 14: This digit will be marked with a dash (-) or a slash (/):
Digit 15-16: This digit indicates the specification sheet number. Digit 18-19 (tube/spring/reservoir color (optional):
1: Chrome / 9 HT (Hard) / Pearl / Bronze. 2: White / A Silver. 3: Gold / P Pink. 4: Yellow / Z Zinc. 5: Red / T Platinum Gray. 6: Blue / Q Turqoise. 7: Orange / G Gray. 8: Black / Non Reservoir.
Digit 20 (optional):
AB: Shock with bearing and 30 clicks of compression.
B: Black Edition shock (complete).
F: Off-Road shock.
I: Idol shock (90-degree reservoir against the shock body).
O: Shock with off-set fork or eye-let.
R: Racing Product.
S: Classic Series (Black decal instead of red)
V: Barrel Spring.
