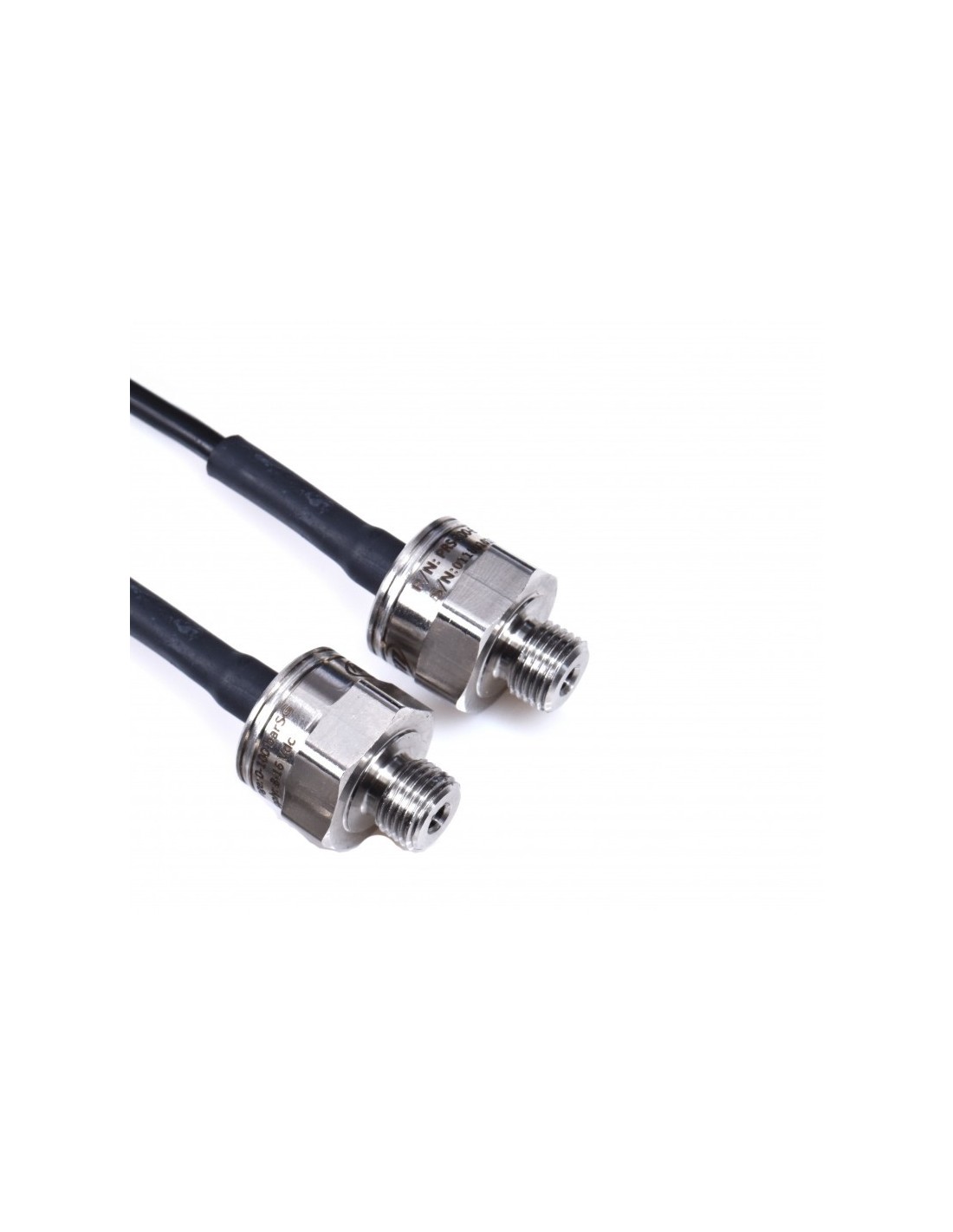

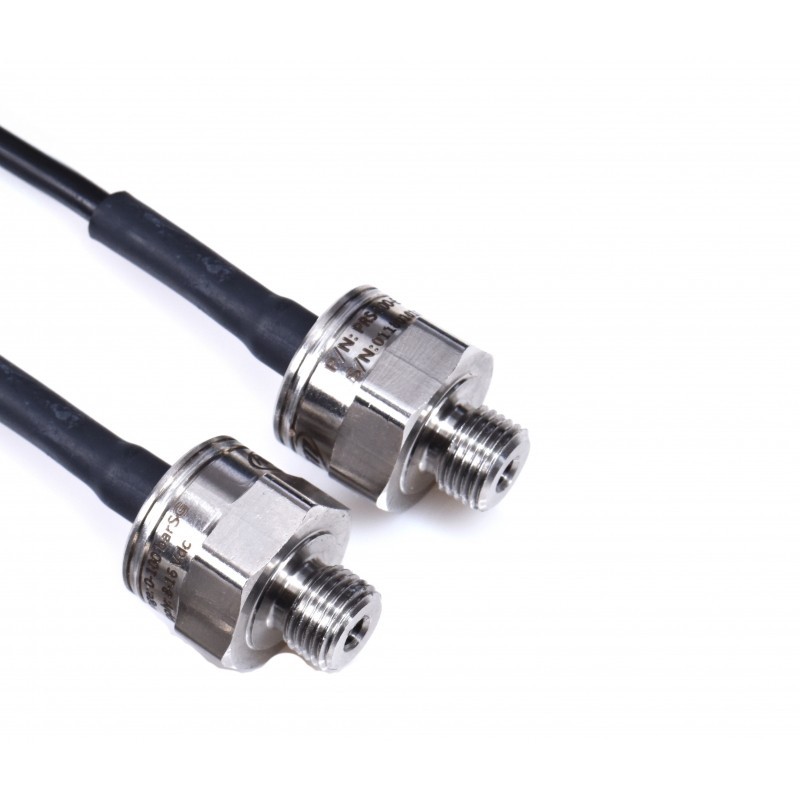

AIM OIL/WATER PRESSURE SENSOR 0-5 BAR
AiM Pressure Sensor 0-5 Bar (Oil/Water)
Reference: X05PSA00005B10K
AIM offers a complete range of sensors specifically designed and tested to interface with our data systems, enabling the monitoring and recording of all vital vehicle parameters.
AIM sensors are developed to withstand the harsh motorsport environment in terms of vibration and to provide reliable data.
AIM OIL/WATER PRESSURE SENSOR 0-5 BAR
AiM Pressure Sensor 0-5 Bar (Oil/Water)
Reference: X05PSA00005B10K
AIM offers a complete range of sensors specifically designed and tested to interface with our data systems, enabling the monitoring and recording of all vital vehicle parameters.
AIM sensors are developed to withstand the harsh motorsport environment in terms of vibration and to provide reliable data.
Engine temperature, water/oil temperature, and tire temperature can be constantly monitored, as well as oil pressure and brake fluid pressure.
Brake pressure can be combined with longitudinal G-force analysis to determine braking effectiveness and the driver's ability to use it.
AiM Pressure Sensor 0-5 to 0-160 Bar
Ideal for measuring the pressure of any engine with the measurement range and maximum accuracy provided by this AiM sensor. Precise installation is advised.
We recommend installation in a specialized workshop.
Once installed, the sensor must be configured using Race Studio 3 software.
Technical Data AiM Press Sensor
Measurement Range
Accuracy
Working Range
Temperature Compensation Range
0-5 Bar
+/- 0.5%
-20ºC/125ºC
-10ºC/125ºC
Output Signal 0.5V to 4.5V
Power Supply 10-30V
Consumption <10mA
Installation M10x1
IP66 Sealing
Weight 30g
Cable Length 500mm
