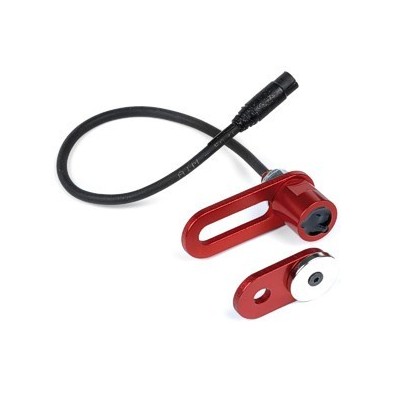

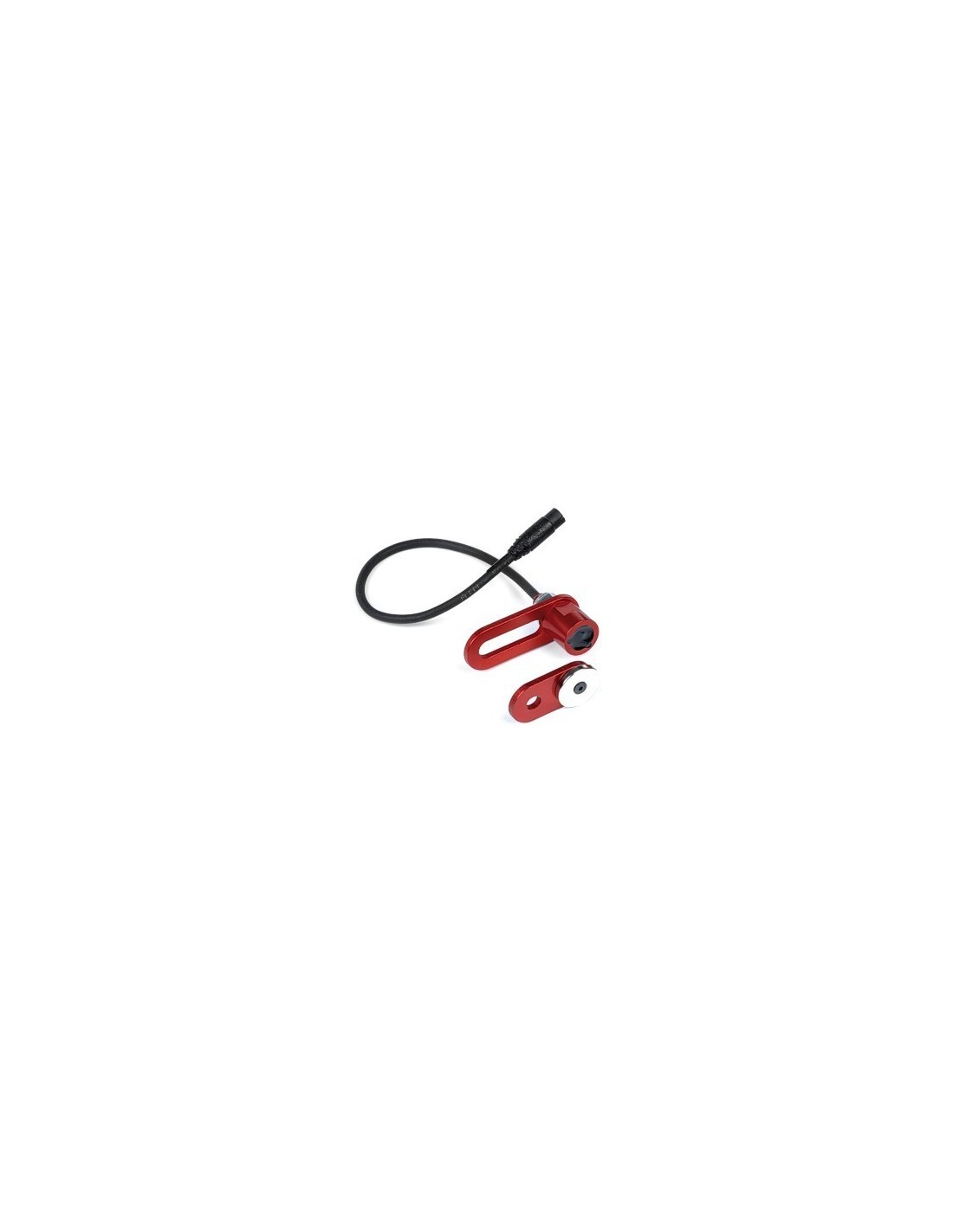

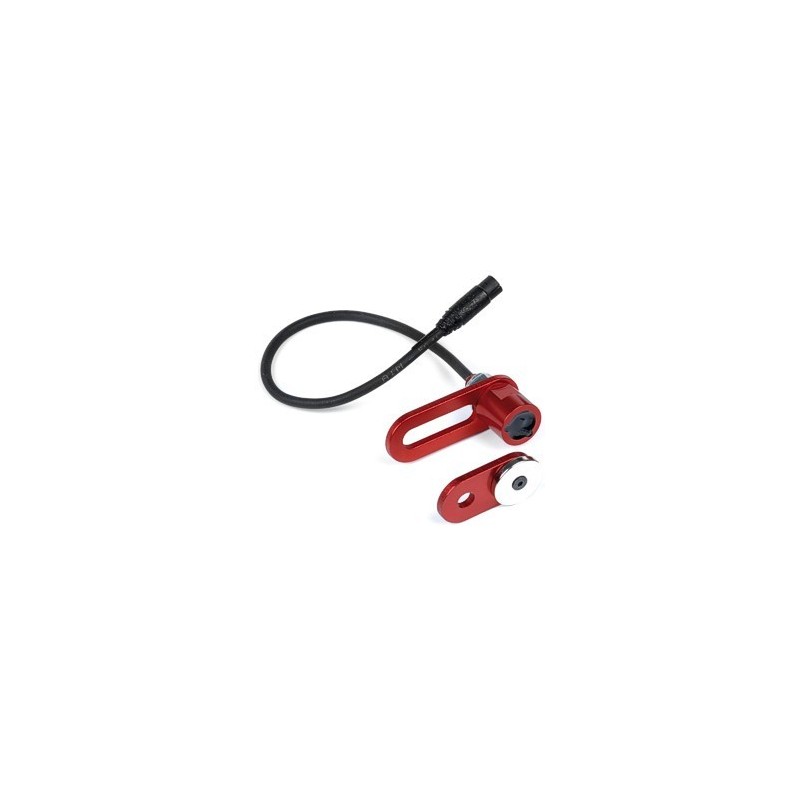

AIM GAS/BRAKE POSITION SENSOR
Gas/Brake Position Sensor
Reference: X05SNAFME0
AiM Gas/Brake Position Sensor.
Gas/Brake Position Sensor
The accelerator/brake pedal position sensor is a key tool for kart drivers.
It provides a precise indication of the timing and intensity of braking/acceleration.
This allows you to understand if the driver has accelerated or braked at the right time and with the correct force.
This is very important for evaluating driver behavior and improving performance.
The data can be acquired by MyChron connected to MyChron Expansion/ACC3 and analyzed on your PC.
Made of anodized aluminum, this is a very robust sensor.
It is also water-resistant. Calibration is immediate. Once installed, connect the sensor to MyChron Expansion/ACC3 and you will obtain the pedal position.
Technical Data Gas/Brake Sensor
Sensor Type: Inductive
Range: 5-40mm
Dimensions: 55x34x20mm
Material: Anodized Aluminum
Protection Rating: IP65
Cable Length: 25cm
Weight: 78g
