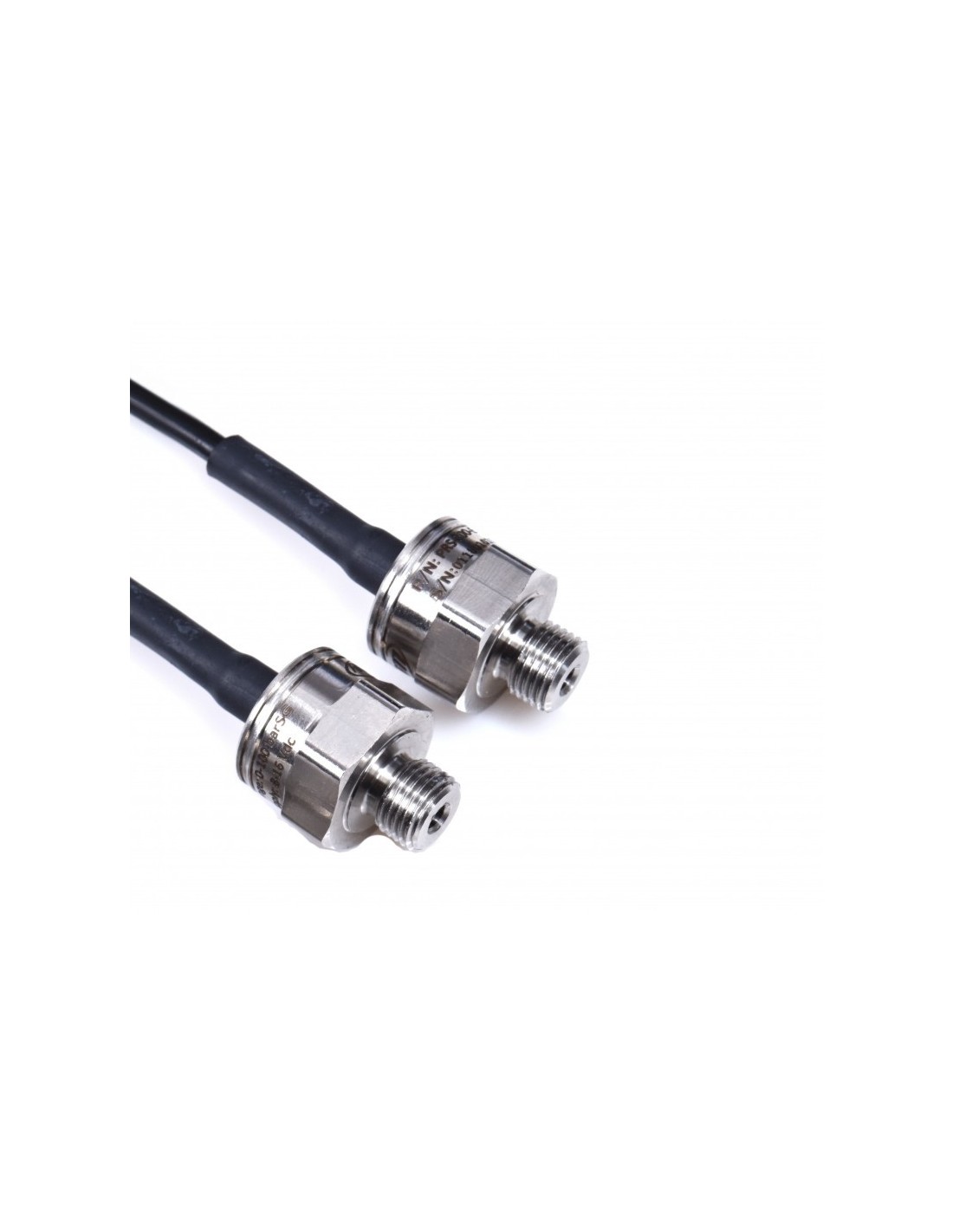

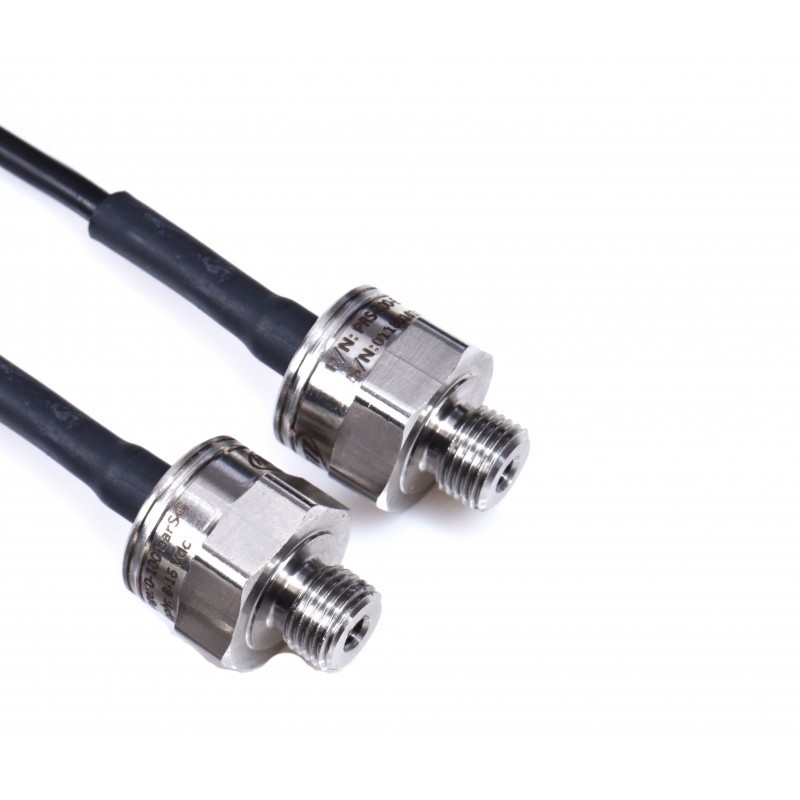

AiM Pressure Sensor 0-5 Bar Absolute (Ambient/Air Box)

Reference: X05PSA00005B10AK

AIM offers a complete range of sensors specifically designed and tested to interface with our data systems, enabling the monitoring and recording of all vital vehicle parameters.

AIM sensors are developed to withstand the harsh motorsport environment in terms of vibration and to provide reliable data.

Engine temperature, water/oil temperature, and tire temperature can be constantly monitored, as well as oil pressure and brake fluid pressure.

Brake pressure can be combined with longitudinal G-force analysis to determine braking effectiveness and the driver's ability to use it.

AiM Pressure Sensor 0-5 to 0-160 Bar

Ideal for measuring the pressure of any engine with the measurement range and maximum accuracy provided by this AiM sensor. Precise installation is recommended. We recommend professional installation. Once installed, the sensor must be configured using Race Studio 3 software. AiM Press Sensor Technical Data

Measurement Range

Accuracy

Operating Range

Temperature Compensation Range

0-5 Bar Absolute

+/- 0.5%

-20ºC/125ºC

-10ºC/125ºC

Output Signal 0.5V to 4.5V

Power Supply 10-30V

Current Consumption <10mA

Installation M10x1

IP66 Rating

Weight 30g

Cable Length 500mm
