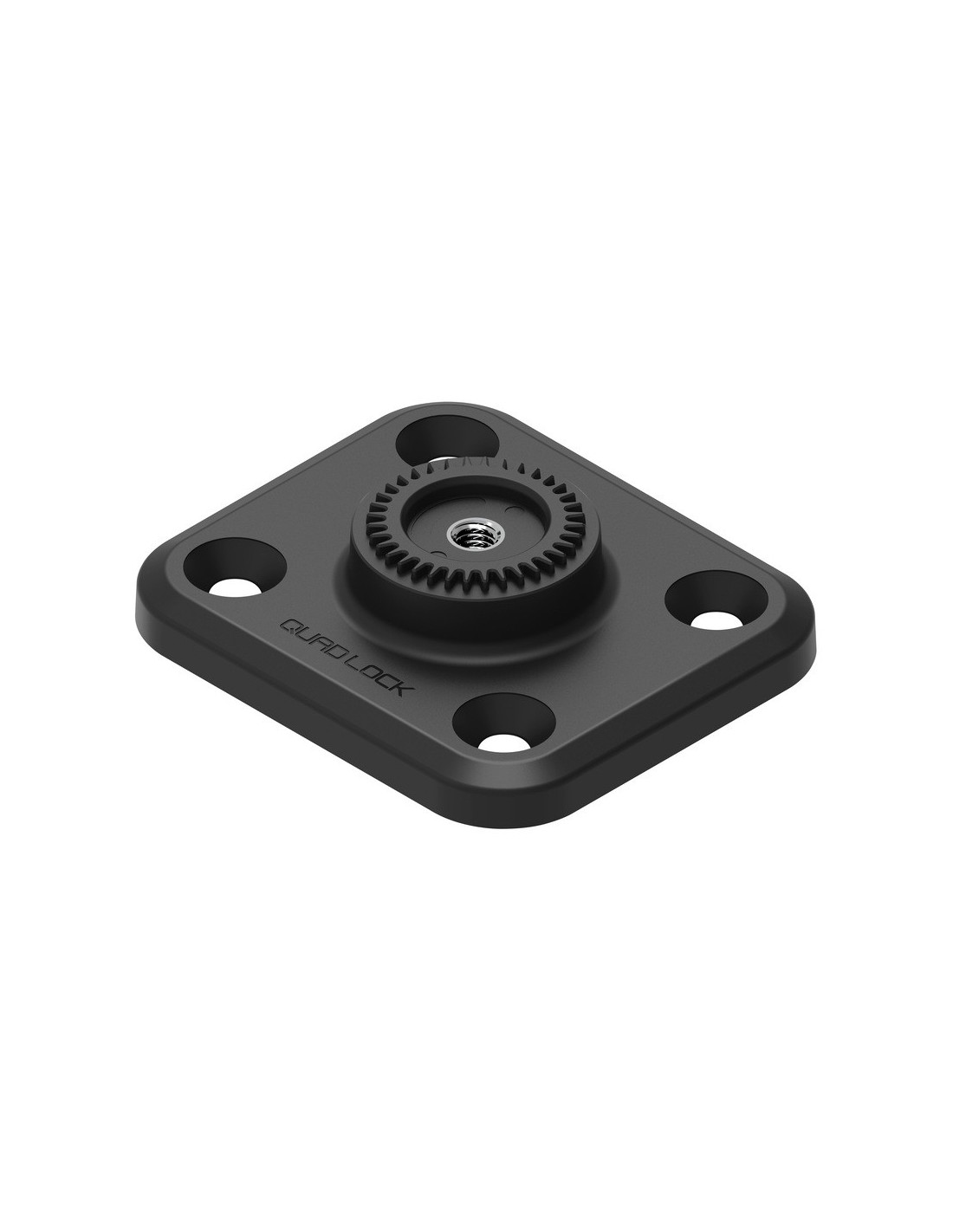

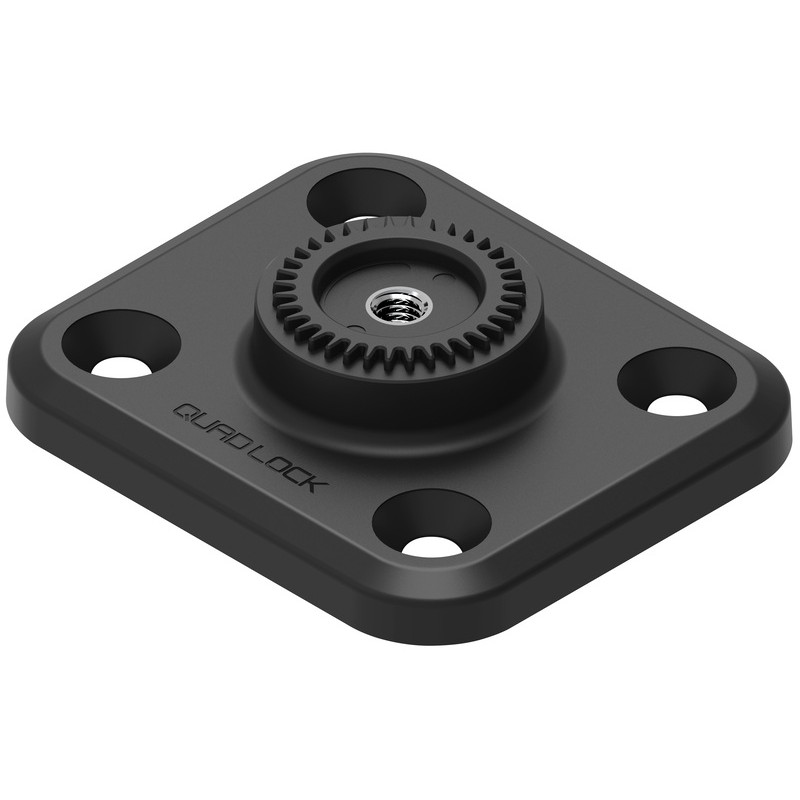

QUAD LOCK 360 4-Hole Rectangular Base

Securely attach your mount to flat surfaces using one of the Rectangular Flat Hole Bases.

Choose from a 2-hole or 4-hole base. Both bases can be fixed to flat surfaces vertically, diagonally, or horizontally.

Each base uses the universal AMPs hole spacing standard, and the holes will accept 10G or M5 countersunk fixings. If using the 4-hole base, we recommend using all 4 screws for a stronger connection.

10mm standoffs and two screws are supplied to connect the standoff to a Quad Lock 360 HEAD or ARM.

Please note:

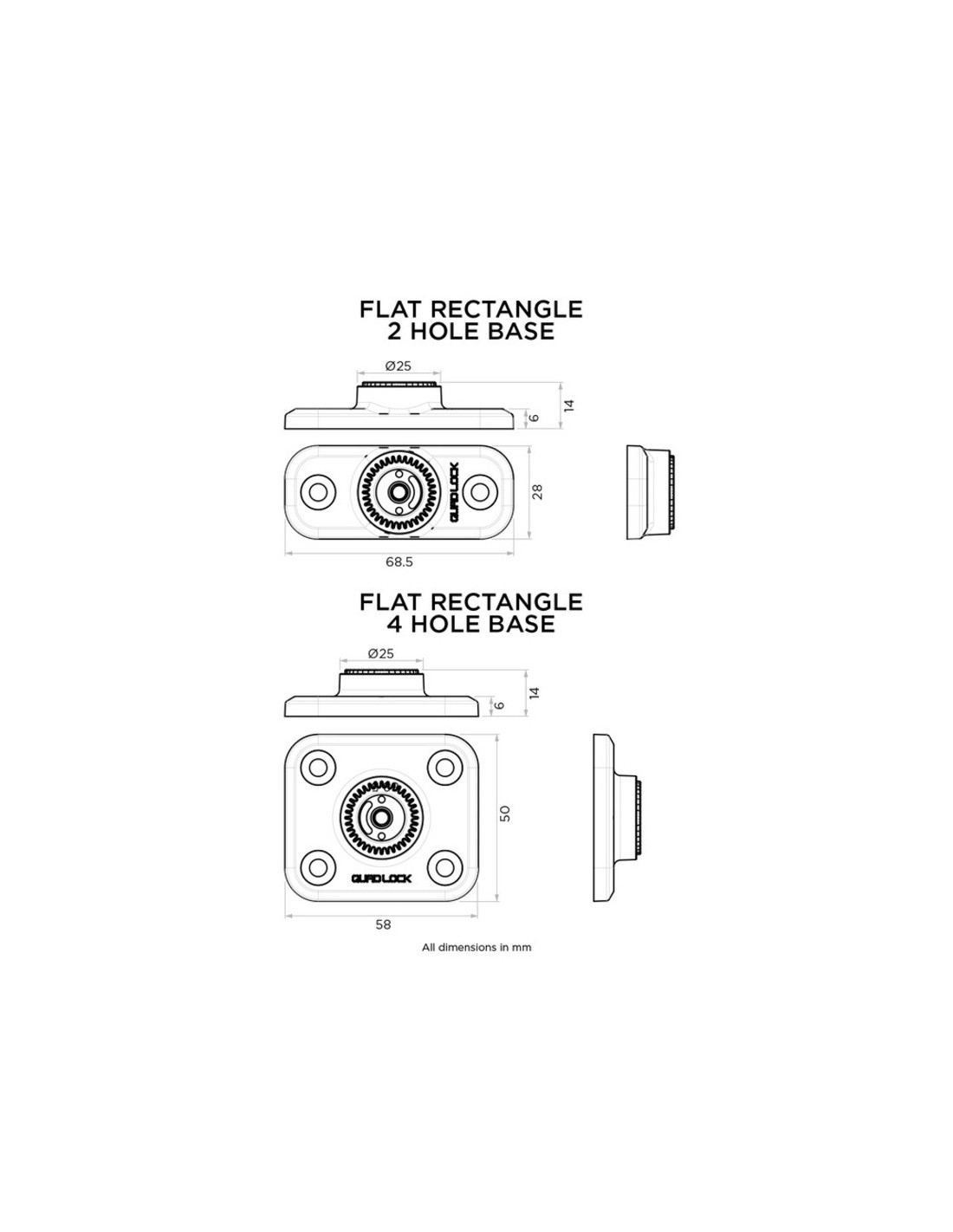

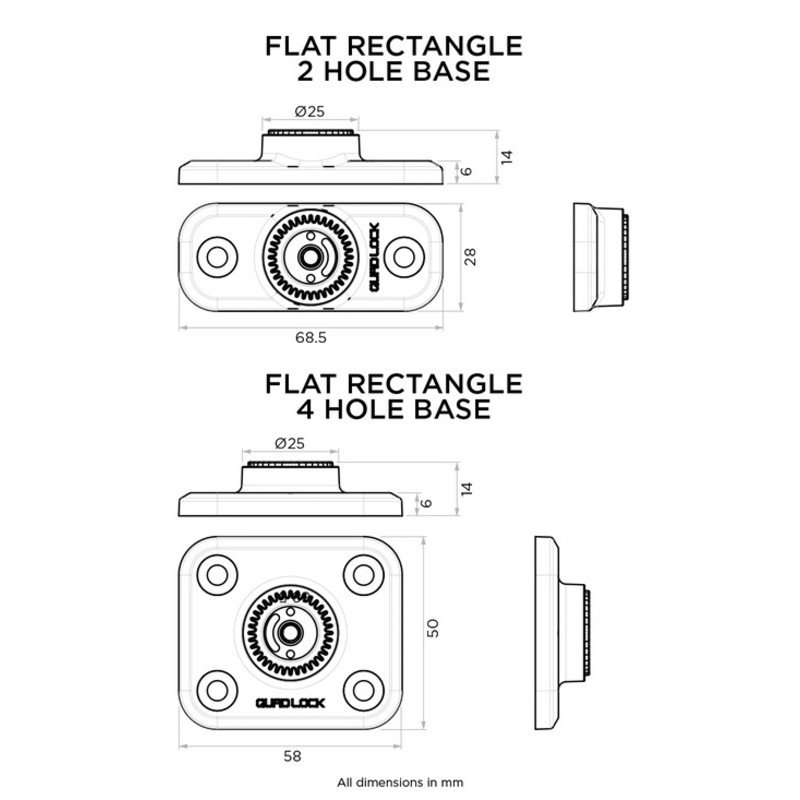

No screws are provided to mount the base to the required surface. Both Rectangular Bases are constructed from durable nylon and use the universal AMPs hole spacing standard. The holes will accept 10G or M5 countersunk fixings. 58mm (2.3") long x 50mm (2") wide x 14mm (0.55") high AMPs Hole Pitch: 38mm (1.5") x 30mm (1.2") Included: 1 x 4-Hole Flat Rectangular Base 1 x 10mm Standoffs 1 x M5x30 Screw (for connecting the Standoff to the Pry Head or 360º Arm) 1 x M5x45 Screw (for connecting the Standoff to the Waterproof Wireless Charging Head)
