QUAD LOCK RECTANGULAR BASE QLP-360-F2H

QUAD LOCK RECTANGULAR BASE QLP-360-F2H

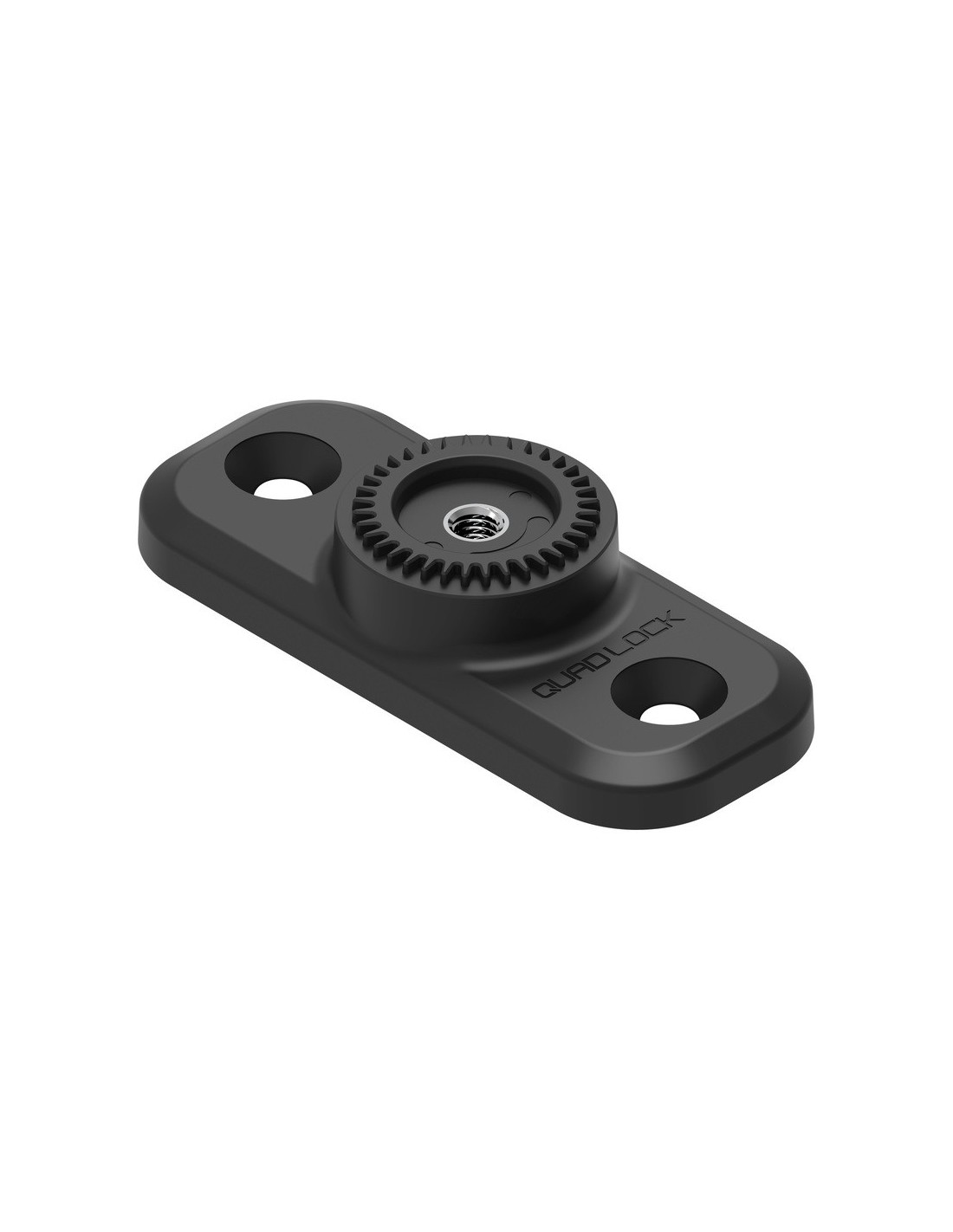

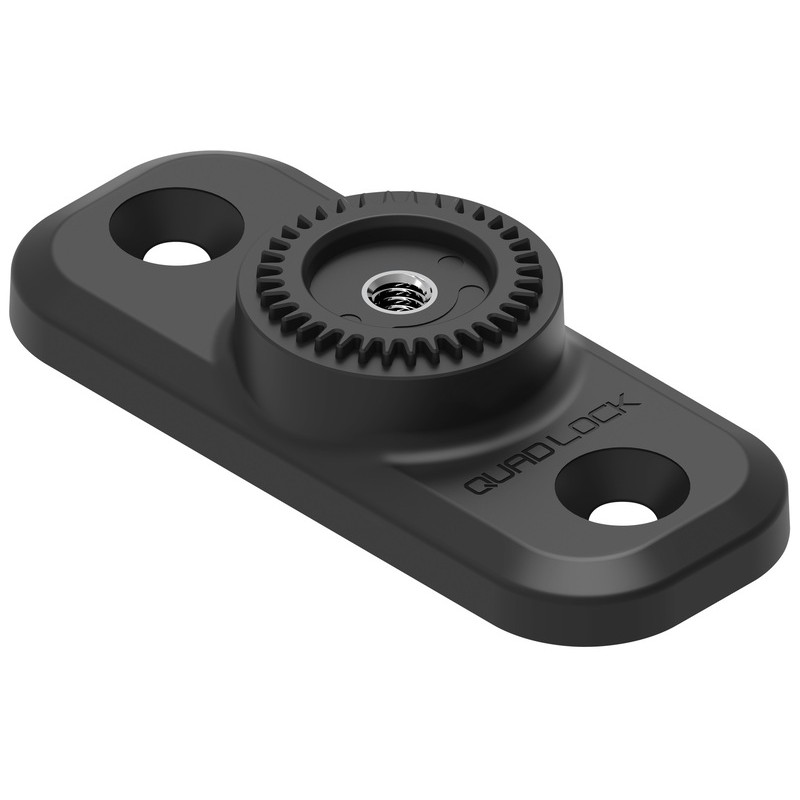

QUAD LOCK 360 2-Hole Rectangular Base

Attach your mount to flat surfaces with one of our rectangular bases with flat holes.

Choose from a 2- or 4-hole base.

Both bases can be fixed to flat surfaces vertically, diagonally, or horizontally.

Each base uses the universal AMPs hole spacing standard, and the holes accept 10G or M5 countersunk fixings.

A 10mm spacer and two screws are provided to connect the spacer to a Quad Lock 360 head or arm.

Both rectangular bases are made of high-strength nylon and use the universal AMPs hole spacing standard.

The holes accept 10G or M5 countersunk fixings.

2-Hole Base

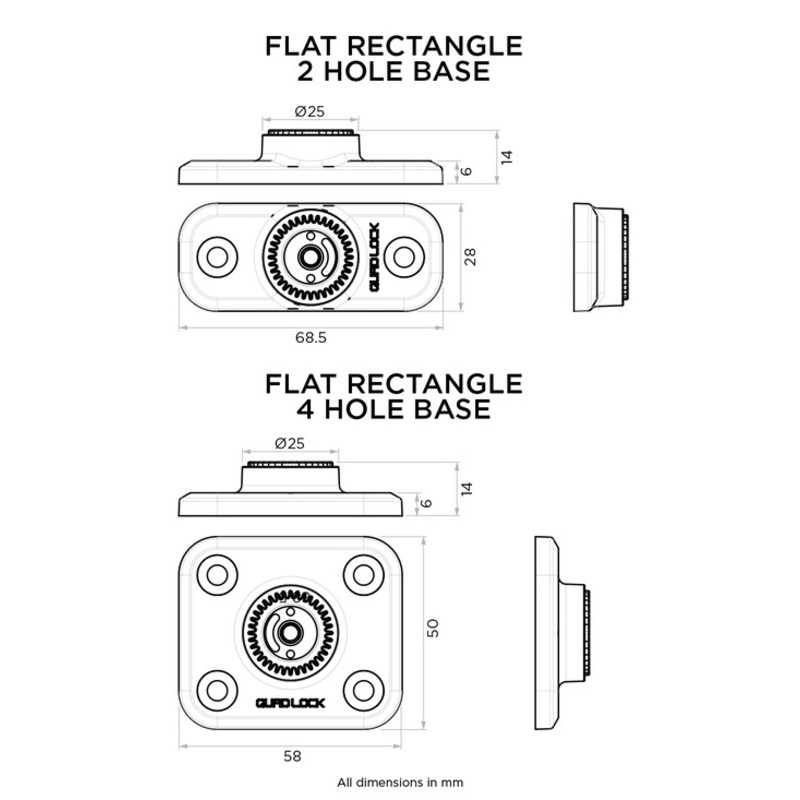

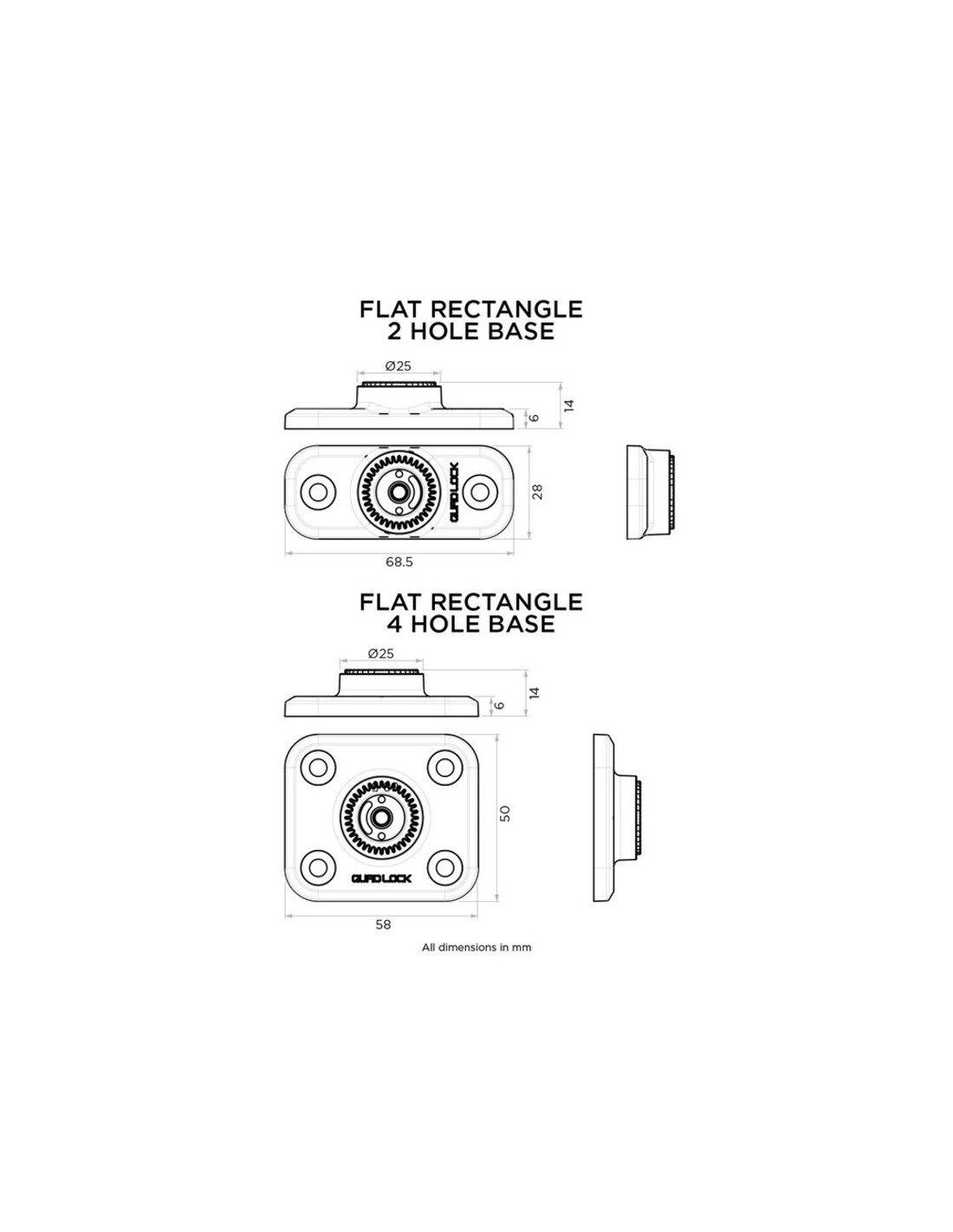

68.5mm (2.7") long x 28mm (1.1") wide x 14mm (0.55") high.

AMPS hole pitch: 48.5mm (1.9")

1 x 2-Hole Rectangular Flat Base

1 x 10mm (3/8") Spacer

1 x M5x30 Screw (to connect the spacer to the lever head or 360º arm)

1 x M5x45 Screw (to connect the spacer to the waterproof wireless charging head)
