QUAD LOCK 360 Flexible Adhesive Base

The Flexible Adhesive Base is suitable for mounting on flat or curved surfaces*.

Using a super-secure 3M Adhesive, the Flexible Adhesive Base has 4 tabs that can be bent to fit the curved surface.

A 10mm spacer and two screws (one M5x30 and one M5x45) are supplied to connect the spacer to a Quad Lock 360 HEAD or ARM.

*Note: Not intended for highly curved surfaces (e.g., 180 degrees).

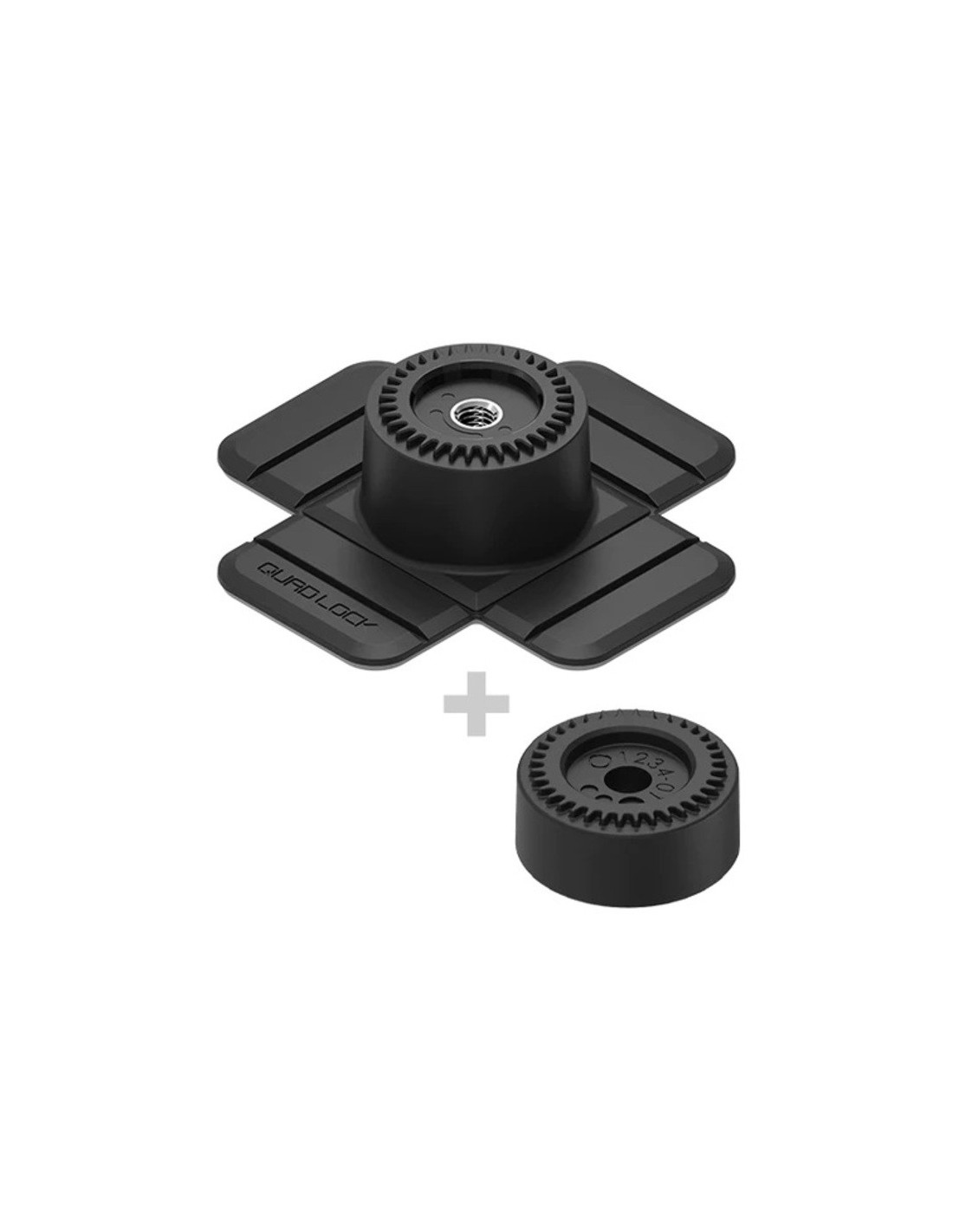

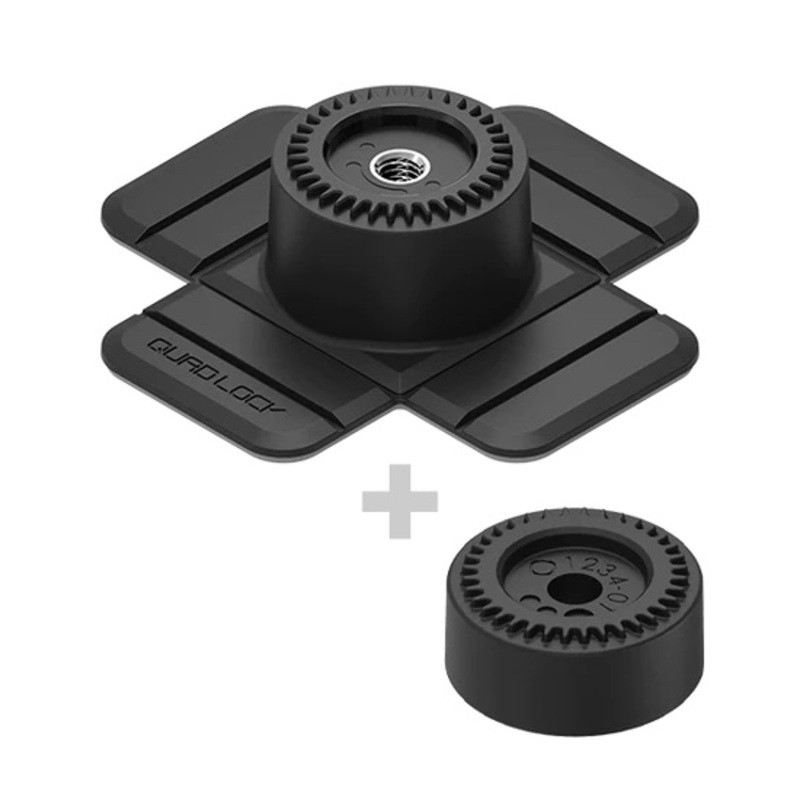

1 x Flexible Adhesive Base

1 x 10mm Spacers

1 x M5x30 Screw (to connect the spacer to the lever head or 360º arms)

1 x M5x45 Screw (to connect the spacer to the weatherproof wireless charging head)

1 Isopropyl alcohol wipe

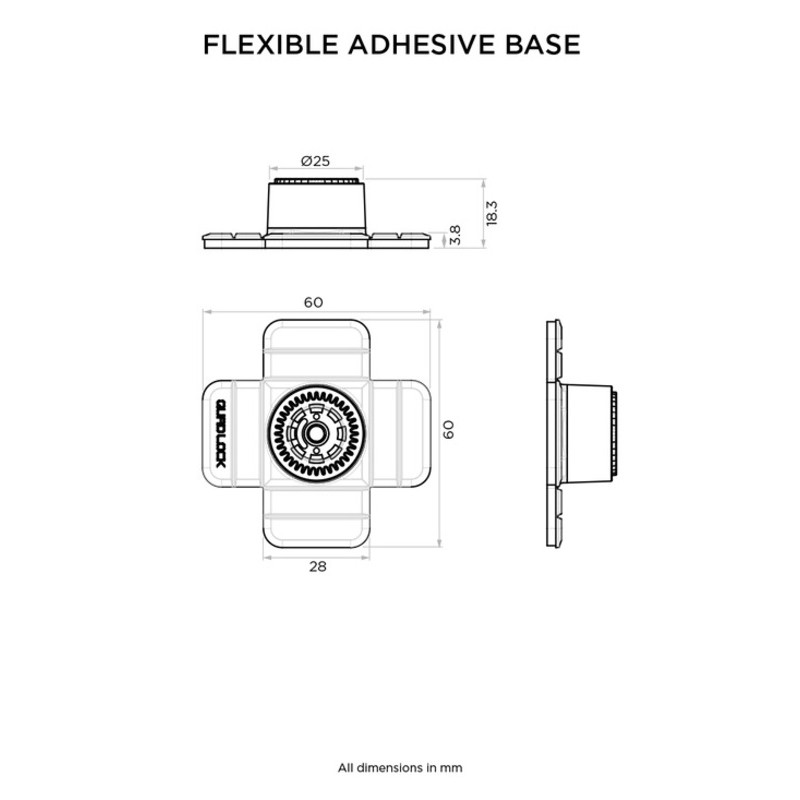

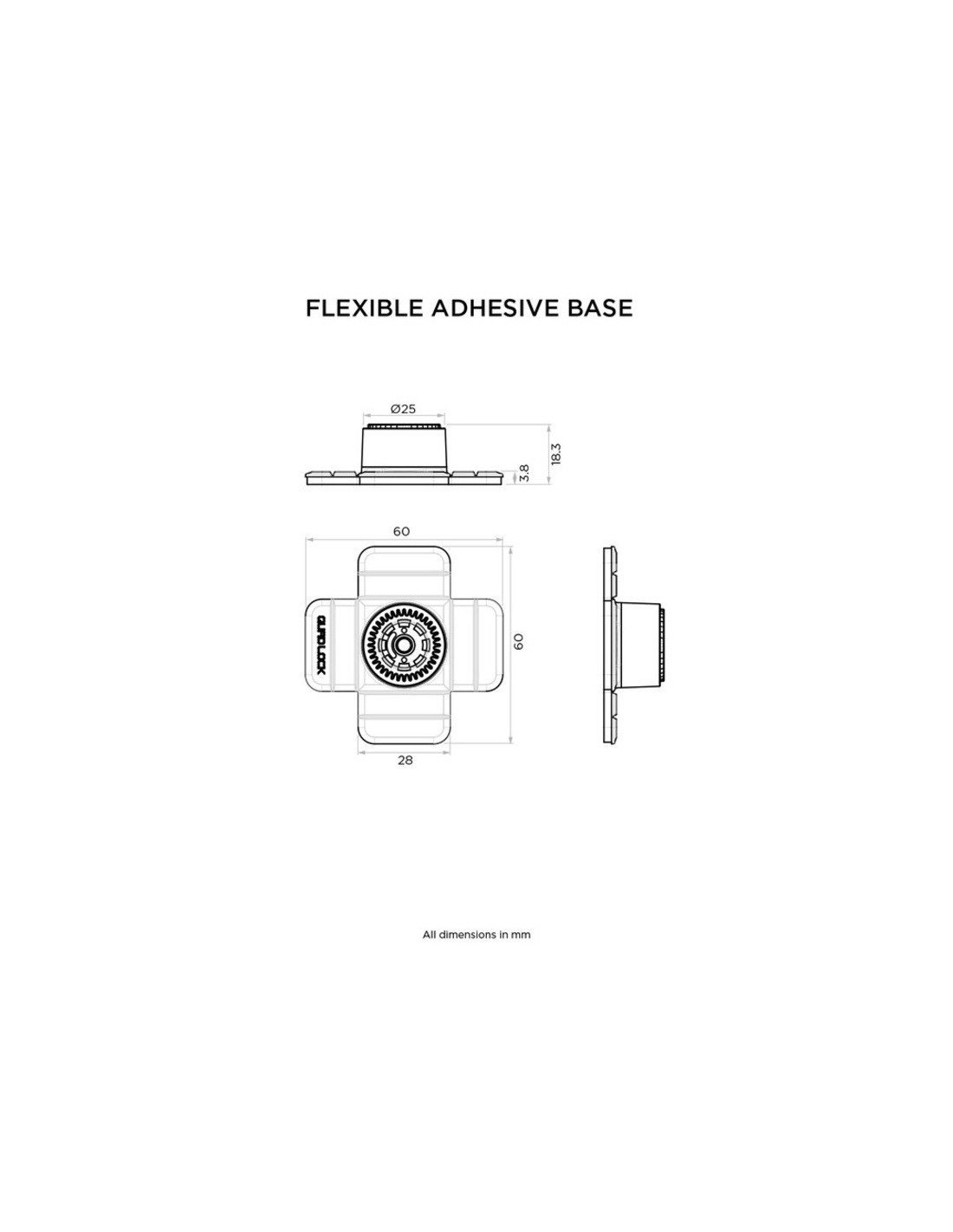

Made of durable nylon, the Flexible Adhesive Base measures 60mm x 60mm with a height of 18.3mm.

Each tab is 28mm wide and has two grooves, which are flex points to allow it to grip curved surfaces. They can be used concave or convex.

The adhesive used is the renowned 3M Adhesive for an extra strong hold.

Compatible with all Quad Lock 360 ARMS and HEADS.

Note: We recommend thoroughly cleaning the surface before applying the Flexible Adhesive Base with an alcohol-based cleaner.
