MALOSSI DELTA SYSTEM CLUTCH 5220385

MALOSSI DELTA SYSTEM CLUTCH 5220385

Description

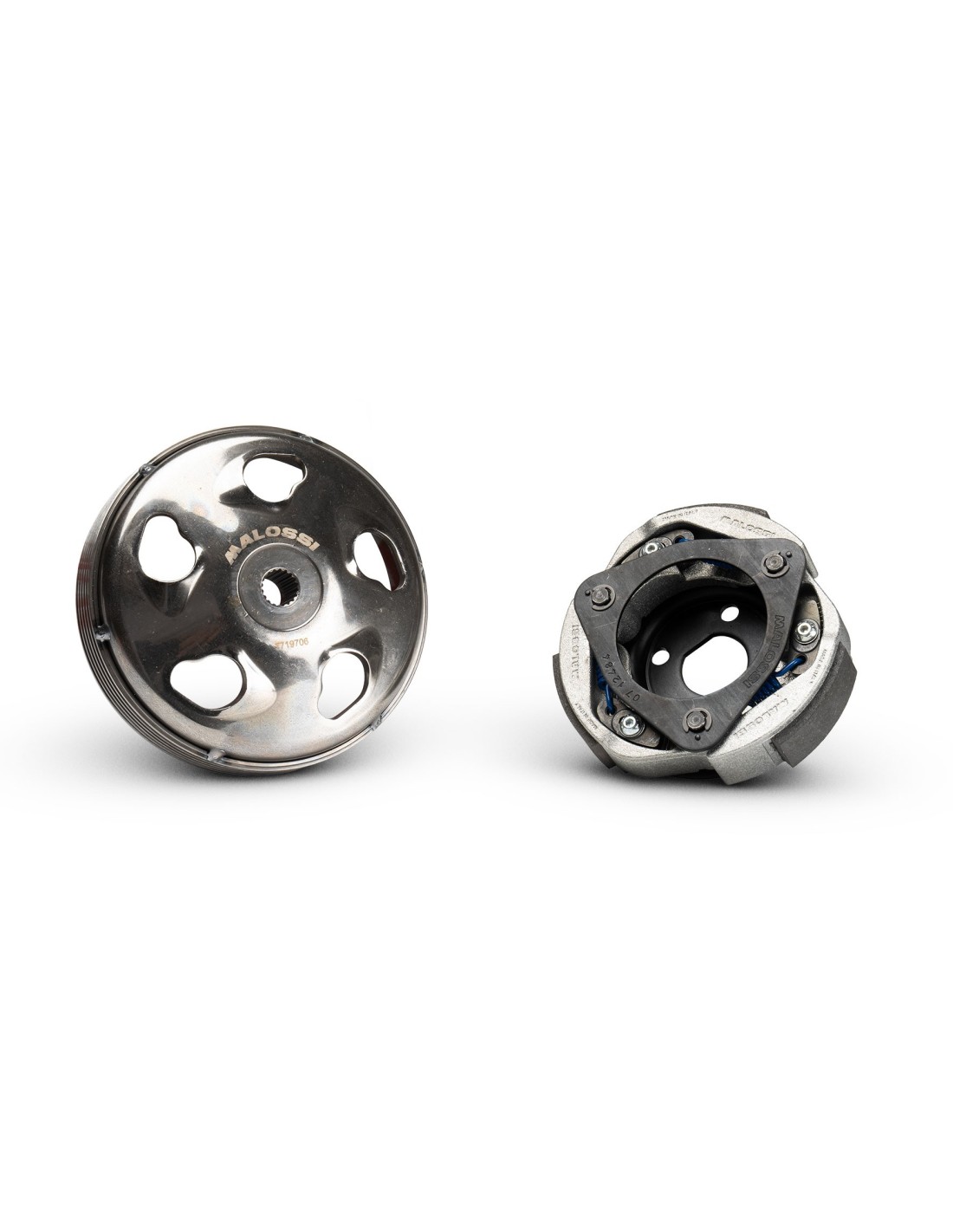

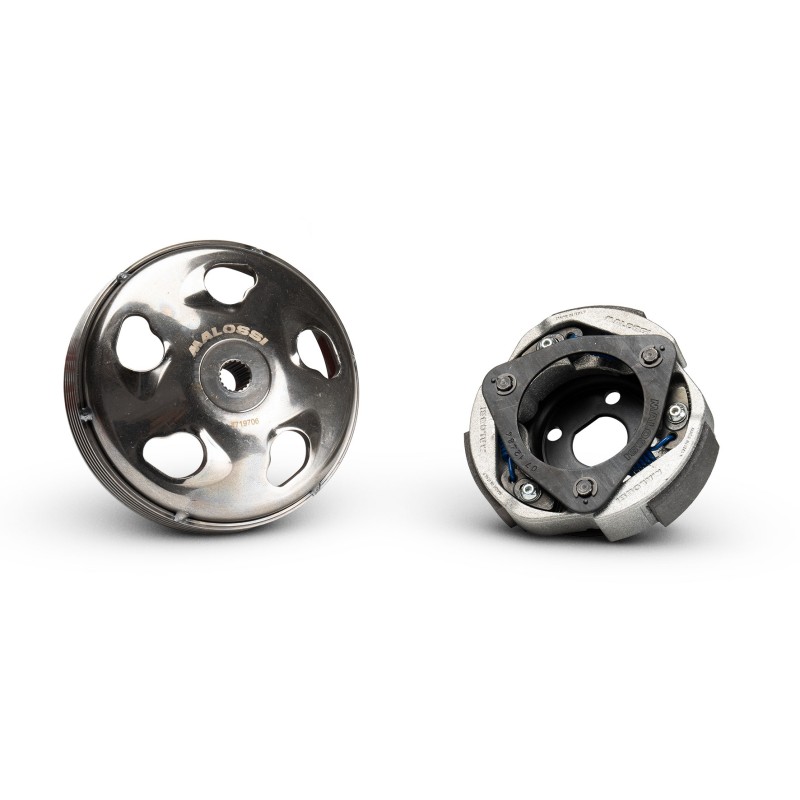

DELTA SYSTEM 5220385

Complete centrifugal clutch assembly with bell for RACING scooters

BENELLI - CFMOTO - HONDA - KAWASAKI - KEWAY - KYMCO - MALAGUTI - PEUGEOT - SYM - VOGE - WOTTAN MOTOR

System comprised of the renowned:

patented adjustable clutch (Delta Clutch)

plus the reinforced bell (Wing Clutch Bell) with dynamically balanced cooling fins, designed for everyday and sport riding

Delta Clutch

The Delta Clutch is a clutch born in the world of scooter racing and quickly became the benchmark tool for vehicle tuning.

The system's simplicity allows for quick adjustment of the spring tension opposing the centrifugal force and the possibility of replacing the spring itself with others of a different K value, as indicated in the Malossi catalog.

The other prerogative is the ability to vary the position of the weight that determines the pressure of the friction material against the inner walls of the bell, and the possibility of replacing the weight itself with one of a different weight.

The entire system is patented to protect it from counterfeiters and copycats who brazenly try to circumvent the invention by any means. Over time, Delta has gained the recognition of all the most qualified technicians, as evidenced by its adoption by all racing teams and a vast array of sporting customers, resulting in continuous sales growth.

As is typical of Malossi, the product has always been closely monitored throughout its development: Delta has been optimized daily with small but significant modifications to keep the product at the forefront of innovation. It is important to note that Malossi clutches have never used asbestos, a fact of which we are proud. Clearly, to achieve the current levels of quality and reliability, the company has invested heavily in research, especially on friction materials, and can now confidently claim to possess exclusive formulas for producing high-temperature resistant materials capable of maintaining an unchanged coefficient of friction even under prolonged stress.

Wing Clutch Bell

Technical Specifications

Bell made of DC04 mild steel, cold-formed;

Central pin made of carbon steel, machined from bar stock and attached by TIG welding;

Moderate nitriding thermochemical treatment;

Alloyed carbon steel reinforcement ring, machined by honing, with interference fit;

100% dynamically balanced.

Given the high level of interest in these two items, we have decided to offer a kit that includes both products, something our customers will appreciate. This allows Malossi to supply two quality products in a single package at a slightly more affordable price.

Products are reserved exclusively for competitions in the venues designated according to the regulations of the relevant sporting authorities. We disclaim all liability for improper use.
