HEALTECH IQSE-W1 SHIFT WIRING

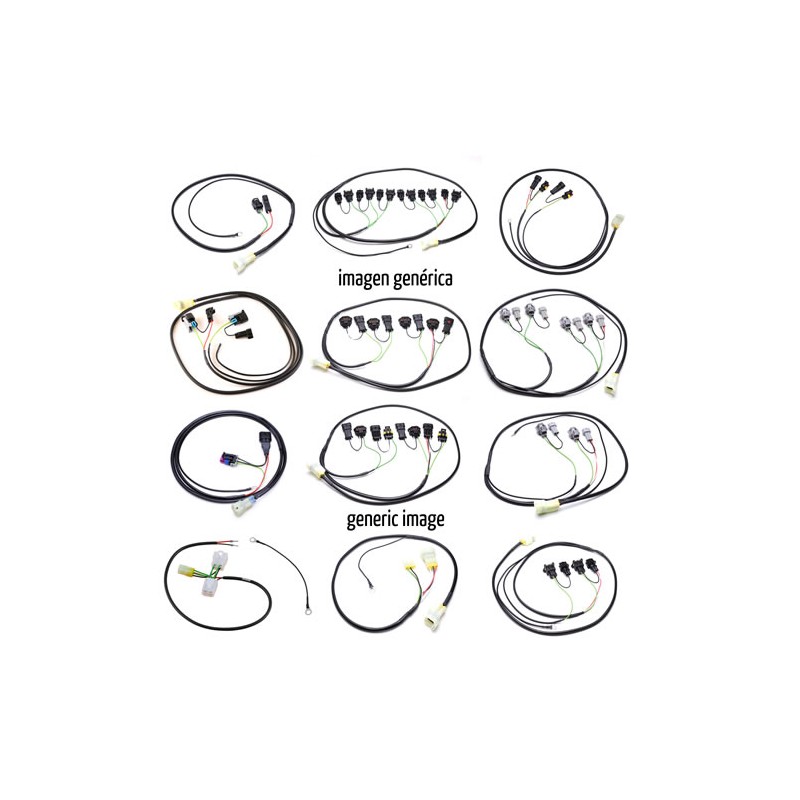

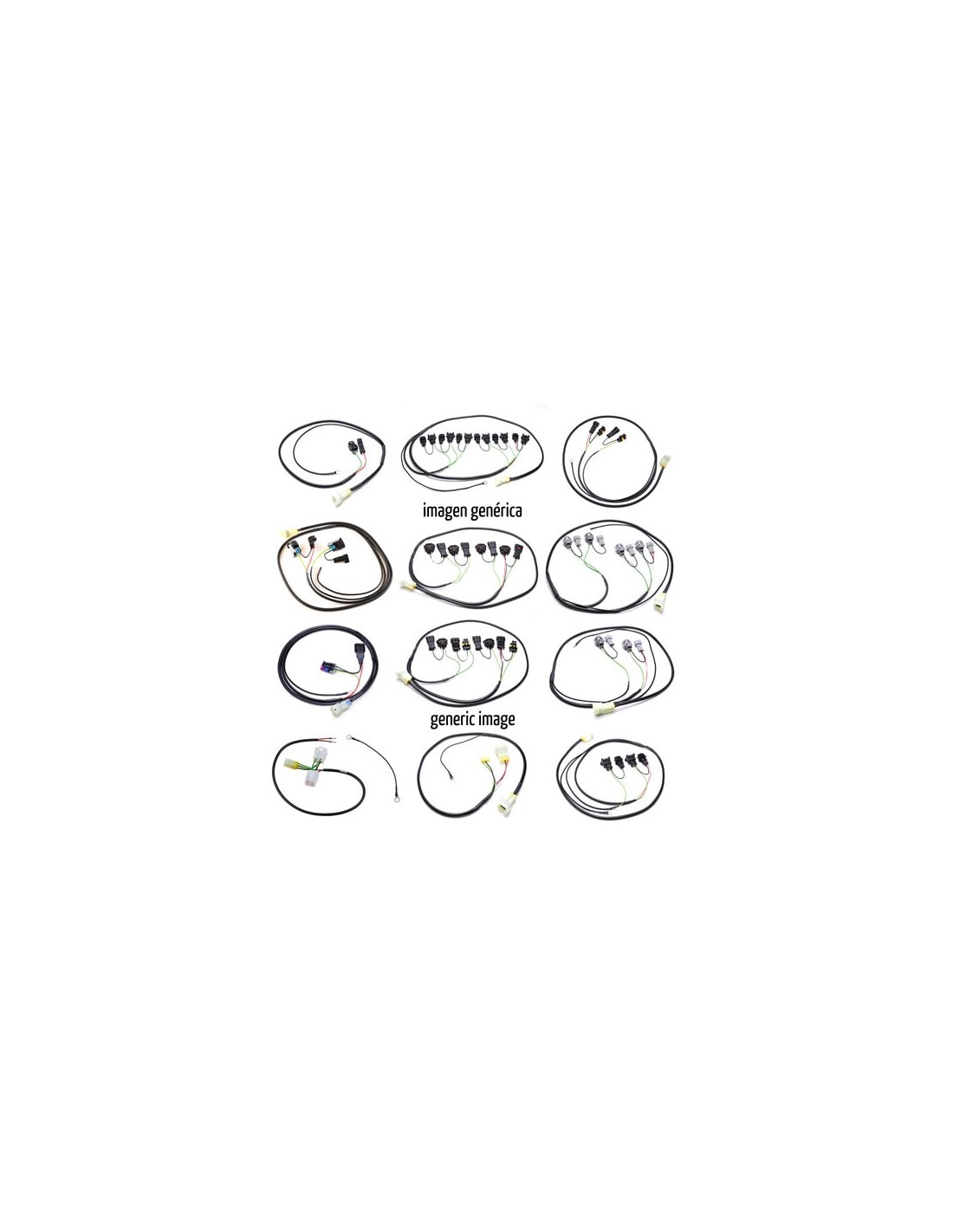

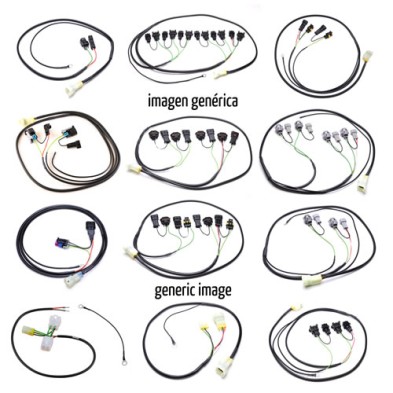

QSH-P1A wiring for the Quickshifter easy semi-automatic gearbox, to be used with the iQSE-W1 module.
INDICATE THE MODEL AND YEAR OF YOUR MOTORCYCLE
Notes
In general, the wiring recommended by the Finder is simply the easiest to install (to the injectors or to the coils).
"QSH-Fxx": They connect to the injectors.
"QSH-Pxx": They connect to the coils.
"QSH-P2T/QSH-P4T": It is necessary to make a jumper in the power cable to the coils. The kit includes all the necessary components.
"QSX": They include additional electronics in the wiring. Some motorcycles detect the ignition cut and show an "FI" error on the dashboard. The additional electronics prevent this problem.
"QSR": Includes a replacement of the shift rod to be able to install the ring sensor.
