HEALTECH STVE-17 SECONDARY THROTTLE THROTTLE EMULATOR
The STVE-17 secondary throttle emulator allows you to remove the secondary throttle without the ECU displaying errors on the dashboard.
This product is compatible with these bikes:
Suzuki GSX-R600 - 2001-2003
Suzuki GSX1400 - 2001-2003
Suzuki GSX1400 - 2004
Suzuki GSX1400 - 2005-2006
Suzuki GSX1400 - 2007-2009
Why remove the secondary throttles?
The secondary throttle actuator/servomotor (STVA) often fails and is usually not available as a spare part, but only together with the complete throttle body (very expensive!). It is therefore common to remove the secondary throttles to avoid this unnecessary cost.
On some bikes, removing the secondary throttles can also increase performance.
Removing the throttle valves and the servo motor will cause the ECU to detect two faults:
- the absence of the STVA actuator/servo motor
- an incorrect signal from the STPS secondary throttle valve position sensor.

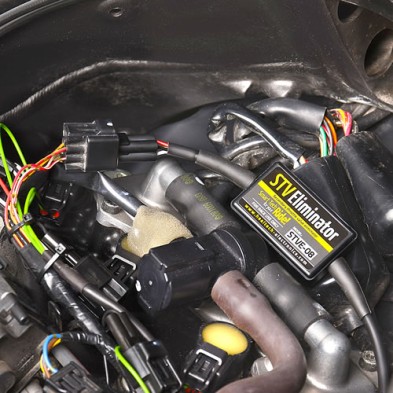

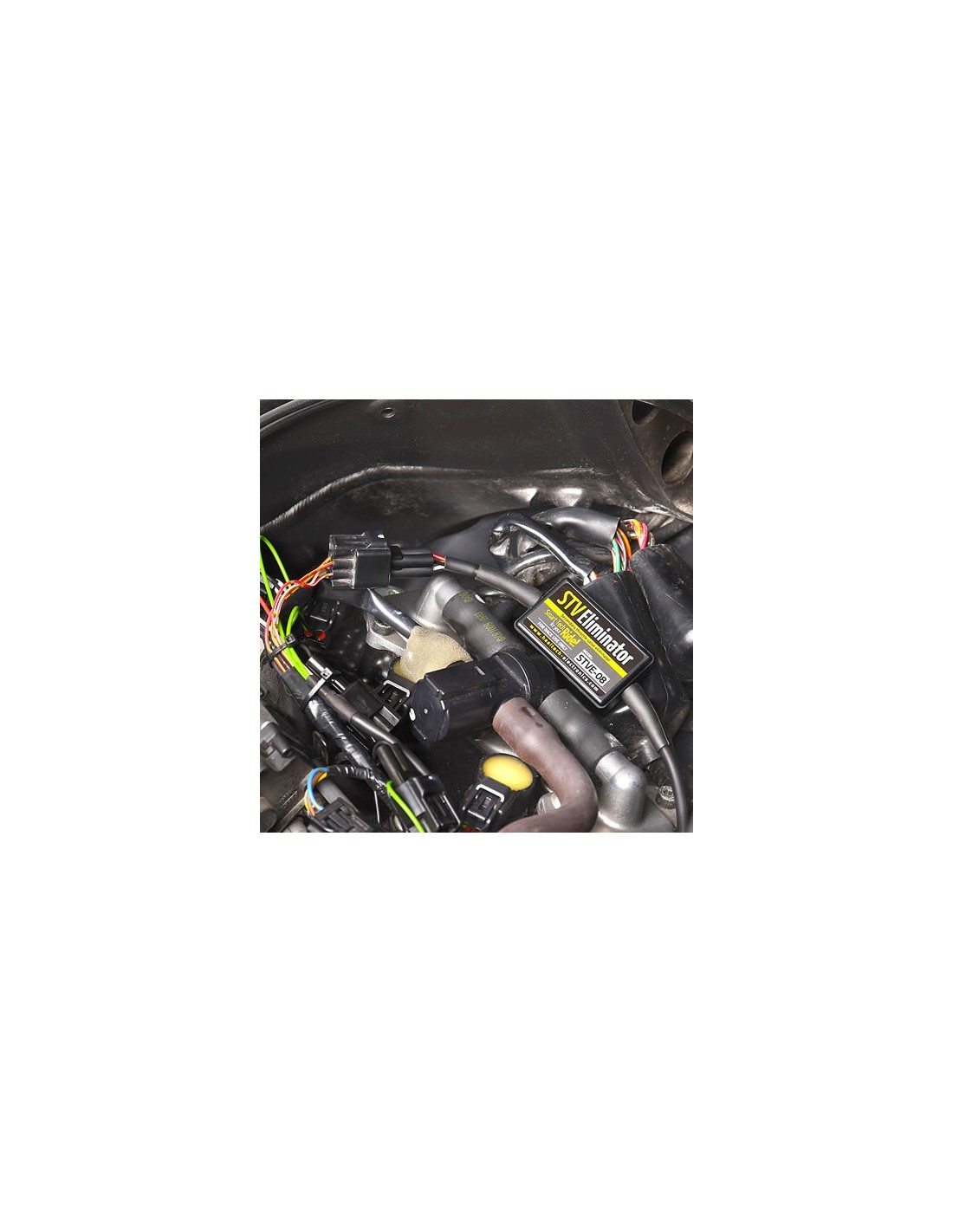

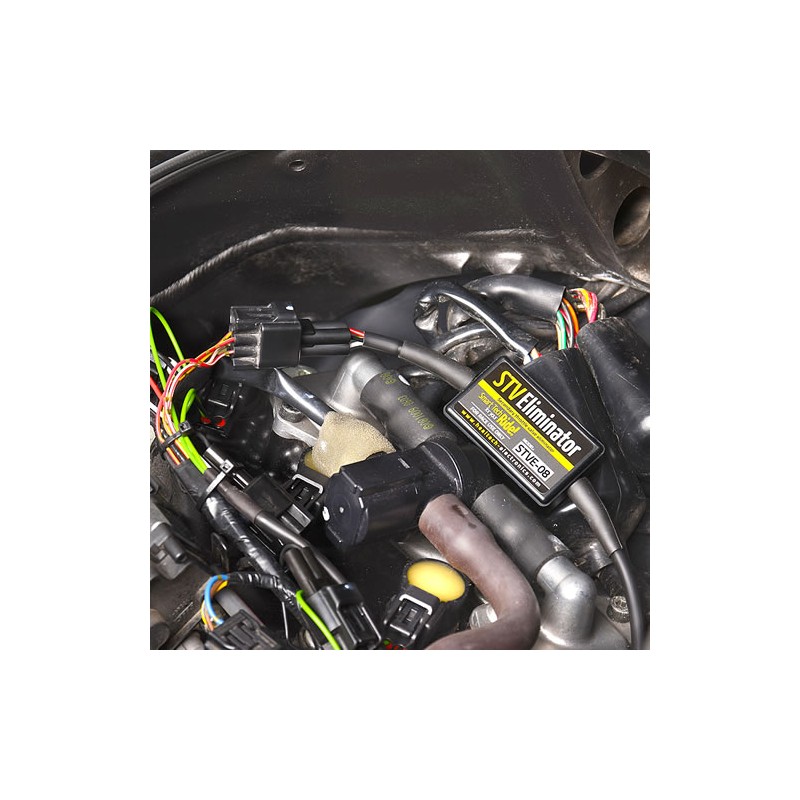

The STVE emulator connects to the STVA and STPS pins of the ECU to provide the correct signals and thus avoid the detection of the two faults.
