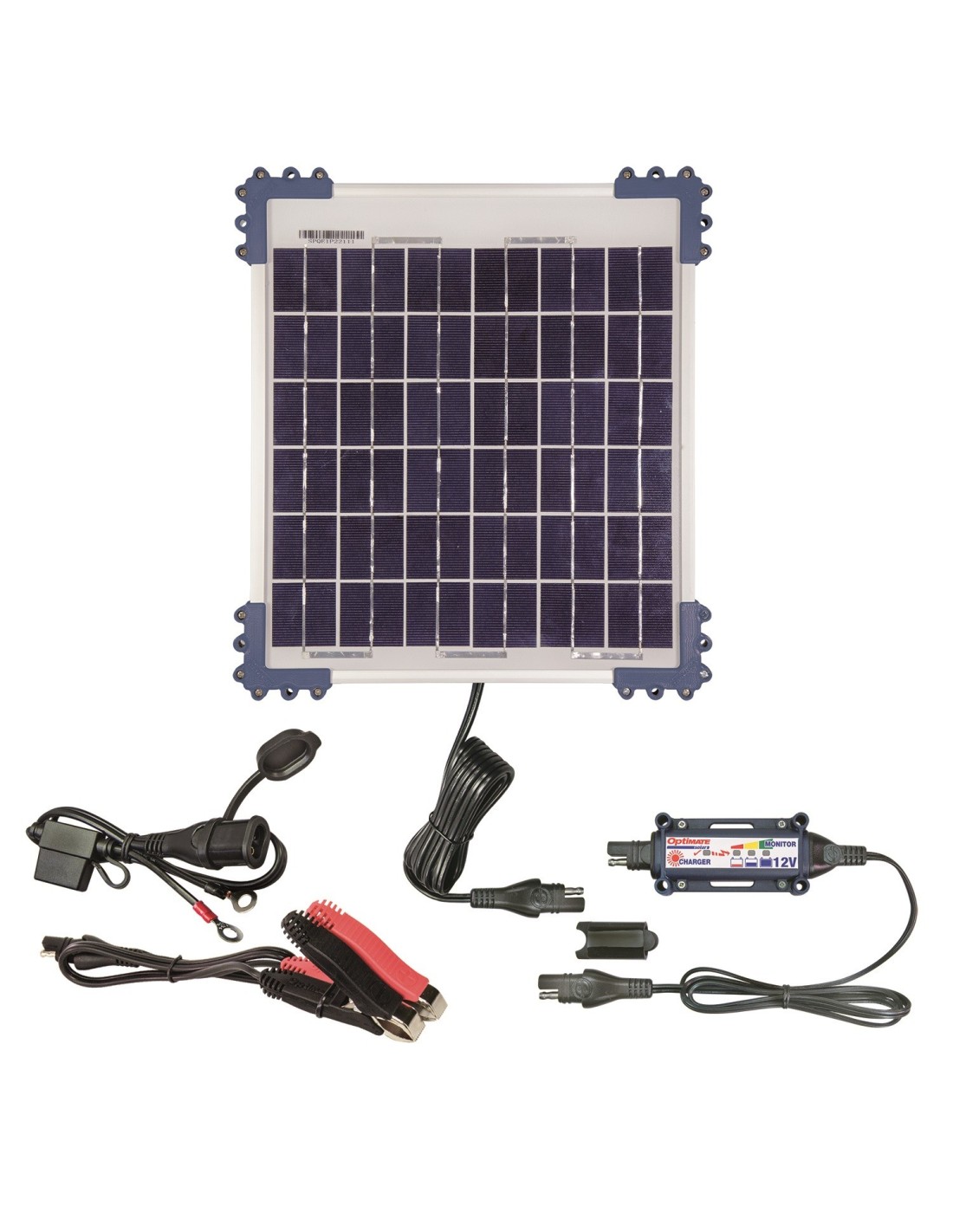

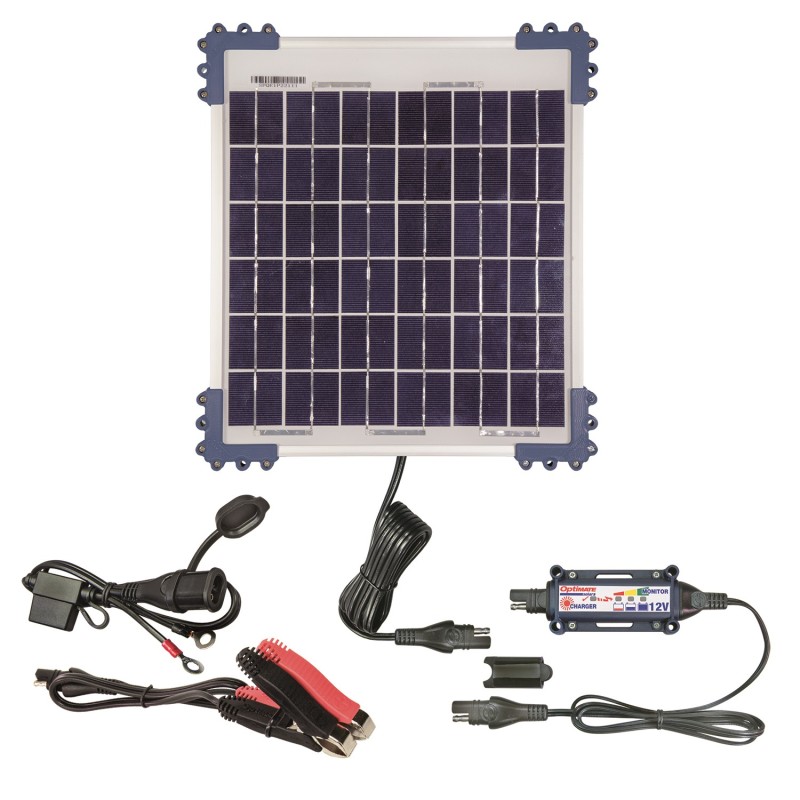

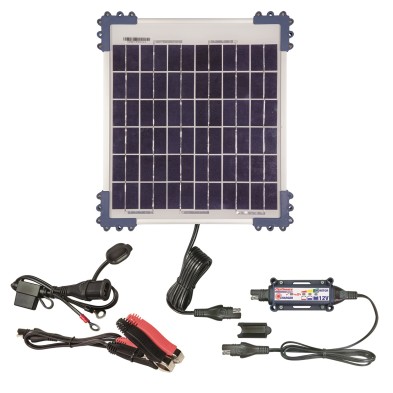

Solar charger/maintainer for acid, gel or AGM batteries.
Ref: 00600524. TM522-1
Solar charger/maintainer with recovery mode for sealed 12V 0.83A 6-phase batteries with 10 W panel
Special features
Fully sealed smart charge controller converts solar energy and provides a maximum of 0.83A in full sun or a pulse charge if it is cloudy to your 12V lead-acid (STD, AGM, GEL) starter or deep cycle battery.
The controller's night monitor mode indicates the battery's state of charge on a 3LED panel

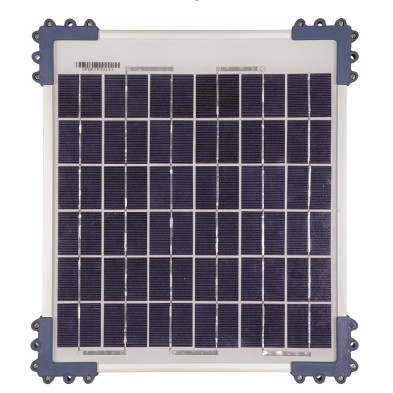

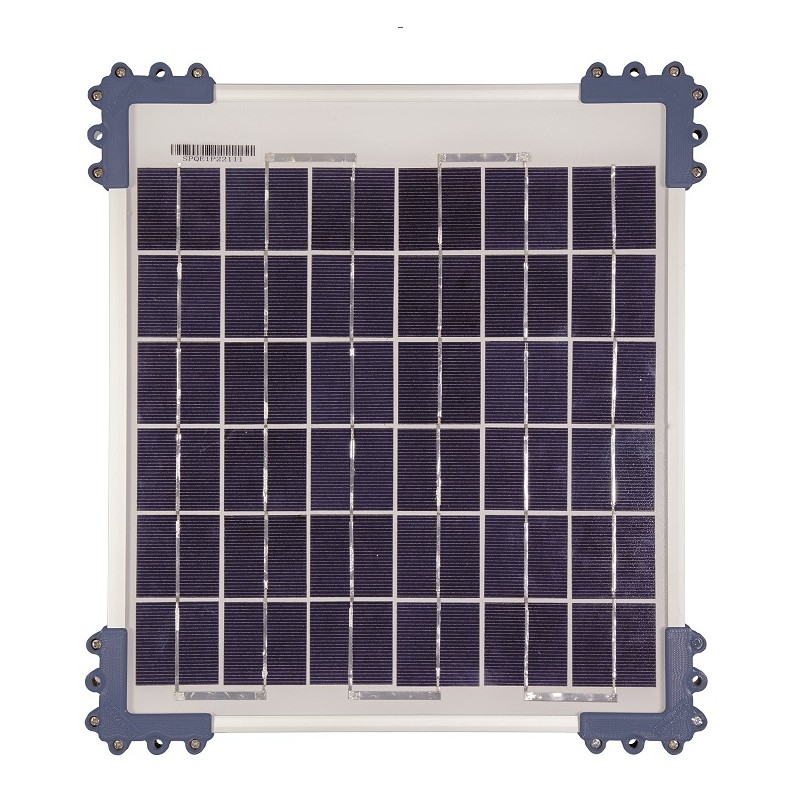

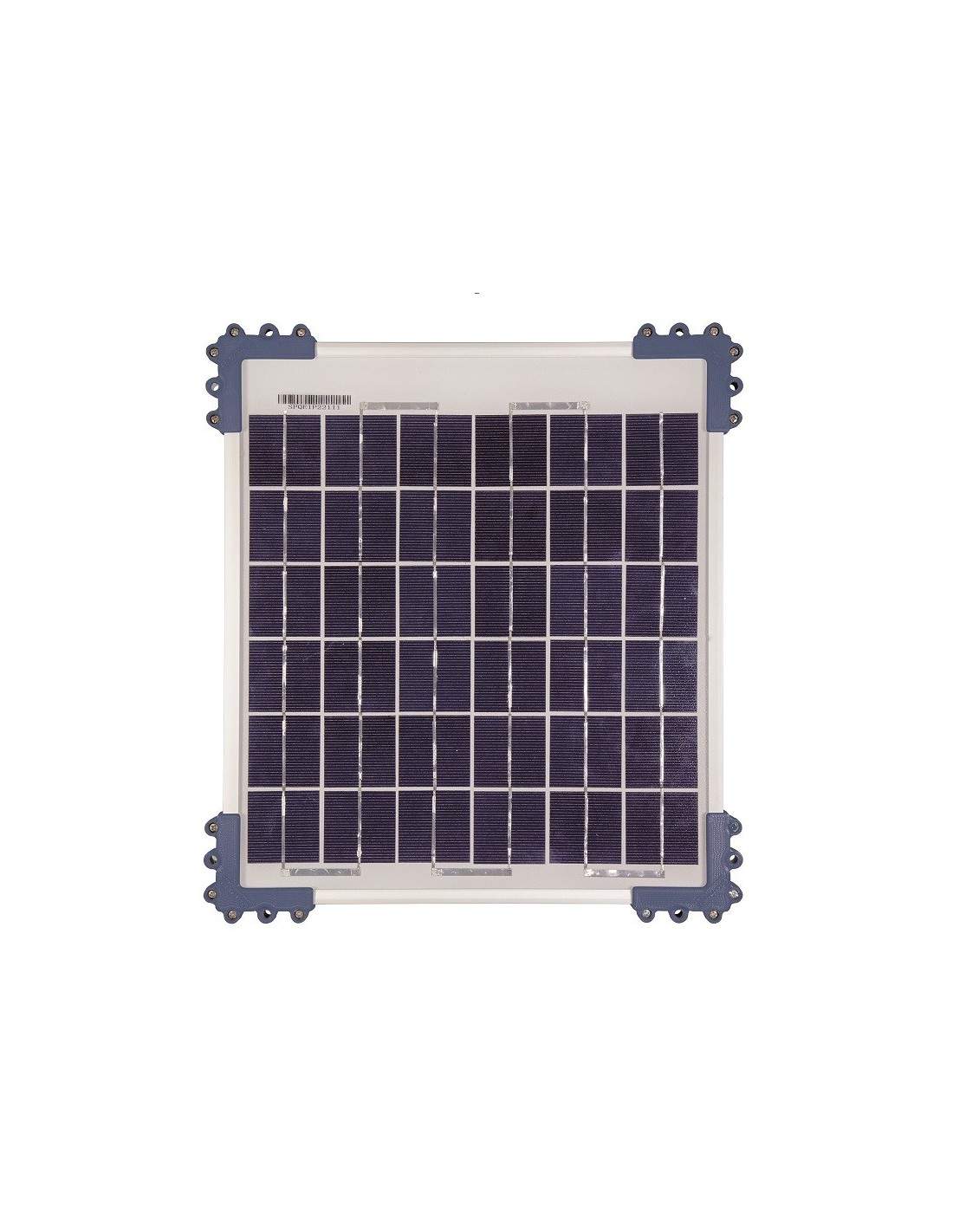

Large weatherproof polycrystalline panel with angle mounting operates in all weather conditions
Unique pulse recovery mode recovers fully discharged sulphated batteries with as little as 1V
Technical features:
POWER SUPPLY: 10 watts (max.)
VOLTAGE: 12V nominal, 22V max.
USE: indoors or outdoors.

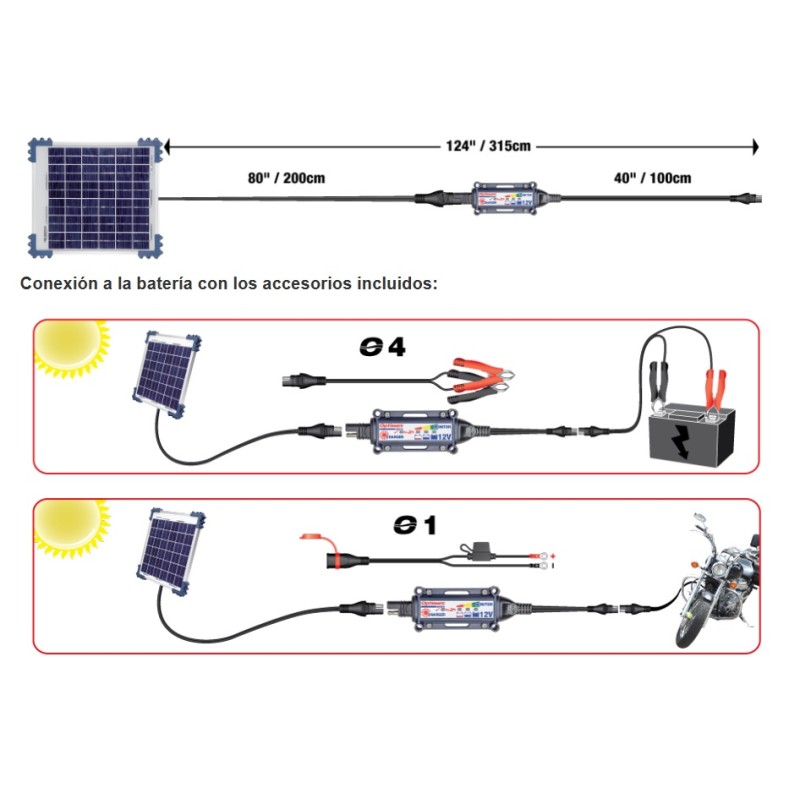

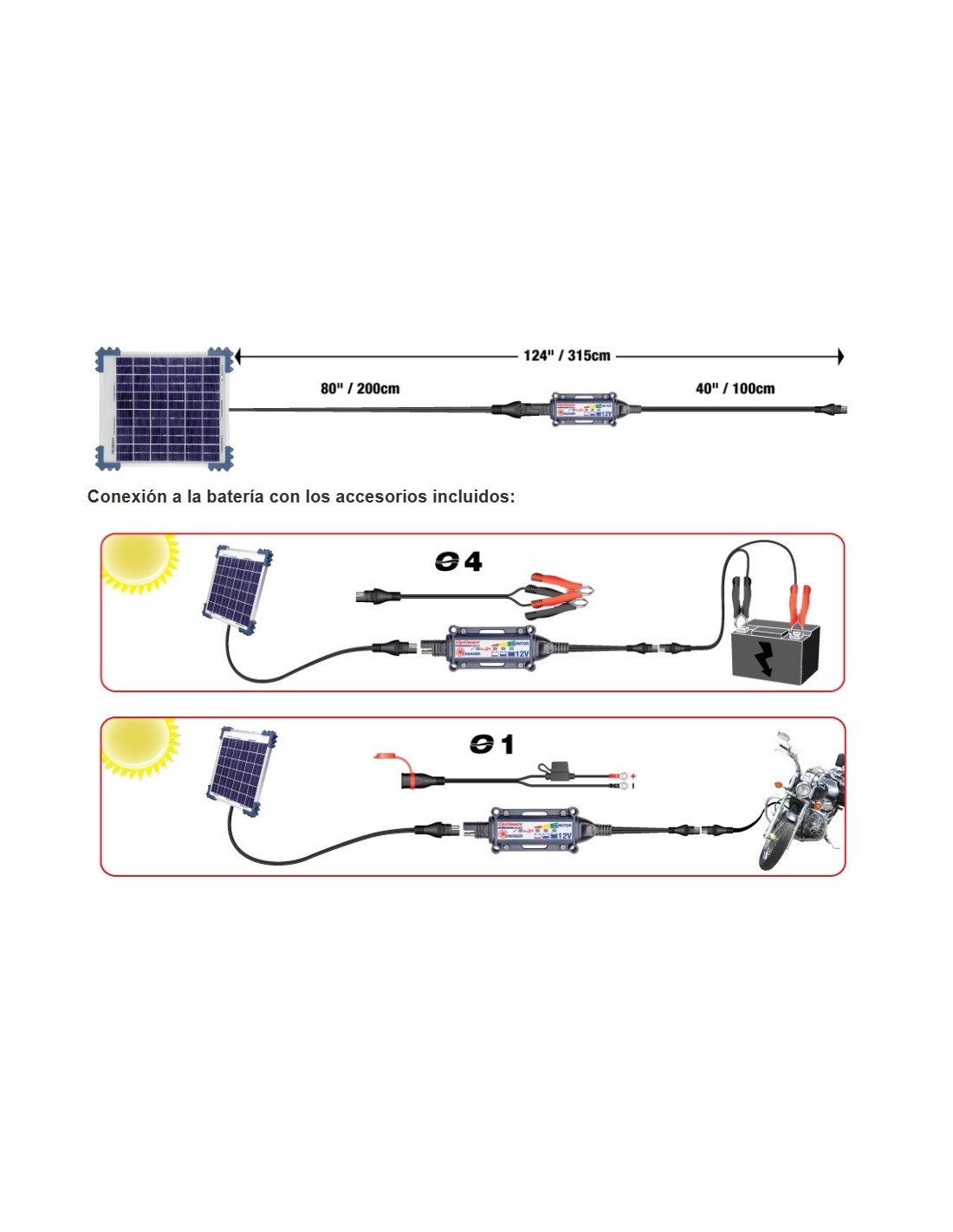

SUPPLY: splash-proof, aluminium frame with 4 mounting brackets, 200 cm / 80" output cable with SAE connector.

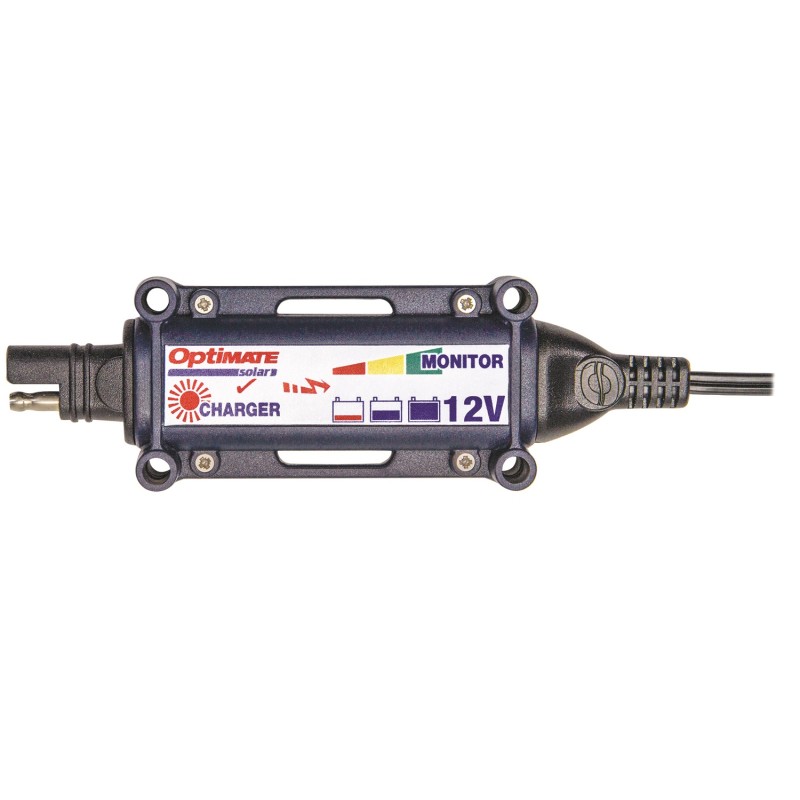

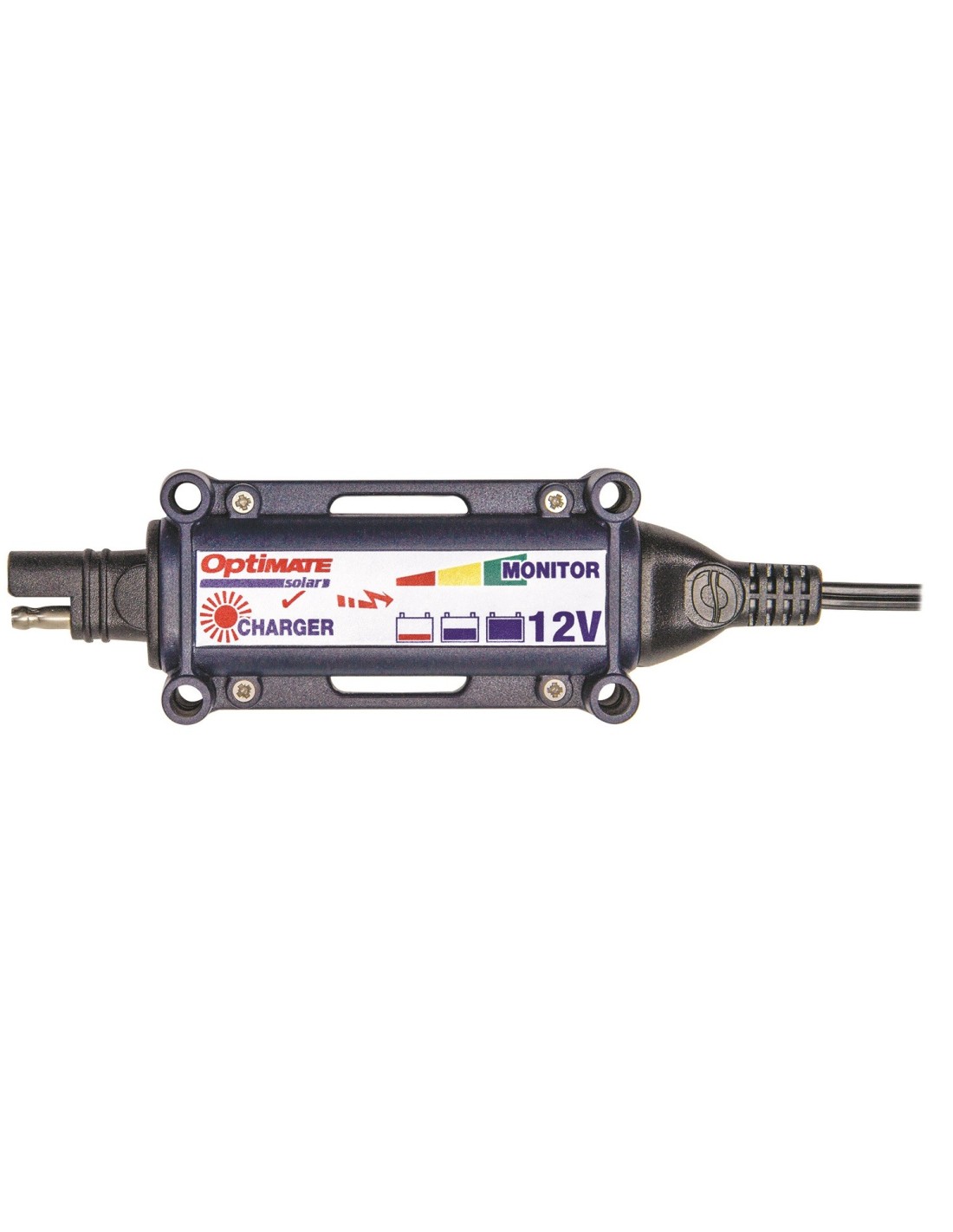

OptiMate controller and load monitor:
LOAD AMPERAGE: 0.83 A from a 10 W plate (max. average current), 3-5 A pulse current.
USAGE: Indoor or outdoor (minimum temperature: -20 ºC / -4 ºF).
RECOVERY: 1 V low voltage start
PERFECT FOR: 12 V STD, AGM and GEL batteries from 2 to 240 Ah.
POWER SUPPLY: 15-22 V
STYLE: Splash proof charge controller housing with mounting holes and strap loops (for Velcro or flange type strap). SAE input connector for solar panel and 100 cm / 40" output cable that connects to the battery with the included splash-proof battery cable and standard battery clamp assembly.
SAFETY: No risk of overcharging. Completely safe for the vehicle's electronics. Spark suppression. Safe for long term battery maintenance. Automatic disconnection when battery is shorted or disconnected.
