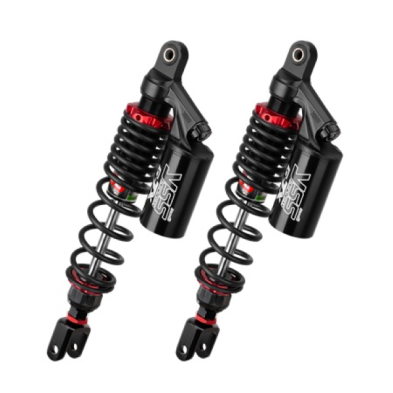

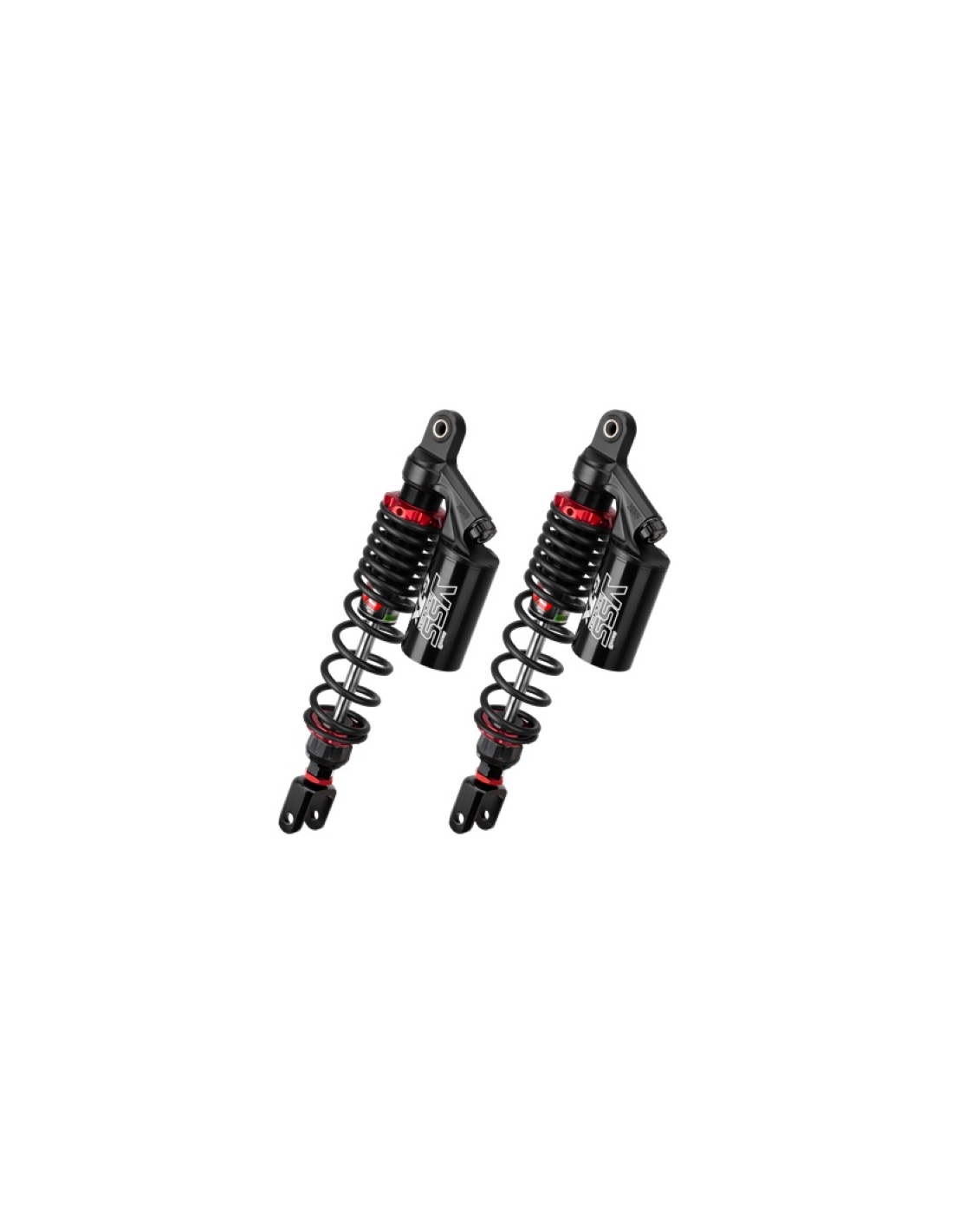

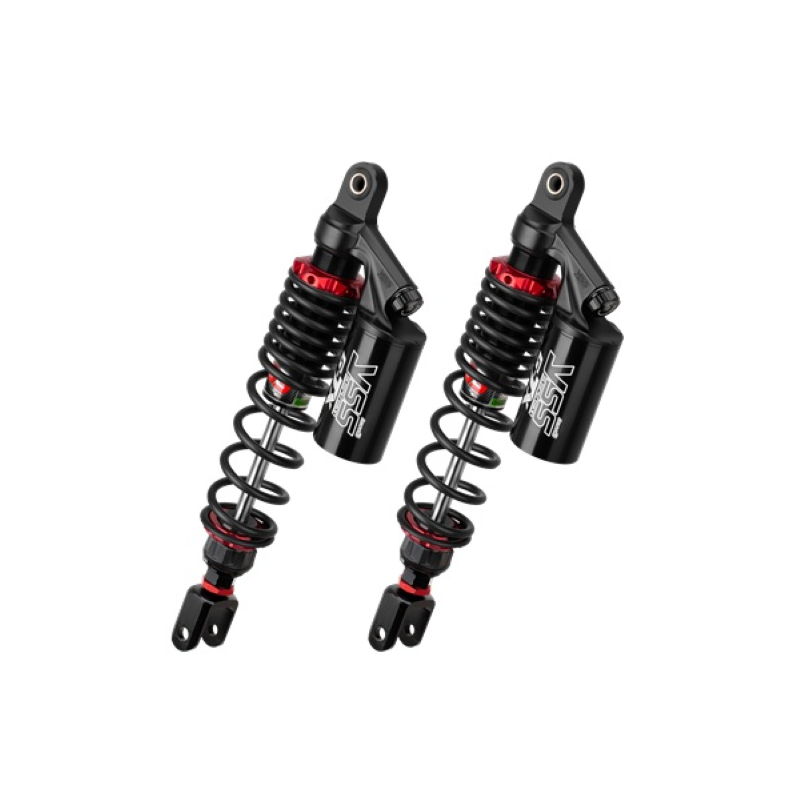

YSS SHOCK ABSORBER TG302-365TRCL05AL-88A
High-performance gas shock absorbers at an excellent price for those looking to enhance their riding experience.
Made with high-quality materials.
Preload, rebound, and compression are adjustable to suit your riding style.
YSS, a leading Thai company in the development and production of suspensions worldwide, focuses on continuous innovation with the constant goal of offering quality products and advanced technology to ensure the best performance.
BRAND MODEL CC YEARS CHASSIS
ZONTES 350E 350 2024-2025
ZONTES 368K 368 2025-2025
YSS SHOCK ABSORBER TG302-365TRCL05AL-88A
High-performance gas shock absorbers at an excellent price for those looking to enhance their riding experience.
Made with high-quality materials.
Preload, rebound, and compression are adjustable to suit your riding style.
YSS, a leading Thai company in the development and production of suspensions worldwide, focuses on continuous innovation with the constant goal of offering quality products and advanced technology to ensure the best performance.
BRAND MODEL CC YEARS CHASSIS
ZONTES 350E 350 2024-2025
ZONTES 368K 368 2025-2025
How to interpret the YSS product reference:
Digit 1 (product group):
F: Front twin shock absorber.
V: Front monotube shock absorber.
R: Rear twin shock absorber.
M: Rear monotube shock absorber.
T: Rear twin shock absorber (scooter).
O: Rear monotube shock absorber (scooter). I: Inner tube.
K: Front cartridge.
Digit 2 (product type):
G, C: Piggyback gas shock absorber with external reservoir (G=Top Line and C=Eco Line).
U, K: Piggyback gas shock absorber with external reservoir button (U=Top Line and K=Eco Line).
X, O: Piggyback gas shock absorber with external reservoir on the hose (X=Top Line and O=Eco Line).
A: Split piston gas shock absorber.
Z, E: Emulsion gas shock absorber (Z=Top Line and E=Eco Line). T: Triple piston (ATPD).
B: Gas - DTG.
D: Shock absorber with double hydraulic tube.
S: Shock absorber with 1 hydraulic tube. Digits 3-5 (piston and shaft diameter):
168: 16 mm piston + 8 mm shaft.
188: 18 mm piston + 8 mm shaft.
220: 22 mm piston + 10 mm shaft.
222: 16 mm piston + 12 mm shaft.
302: 30 mm piston + 12 mm shaft.
304: 30 mm piston + 14 mm shaft.
306: 30 mm piston + 16 mm shaft.
308: 30 mm piston + 8 mm shaft.
362: 36 mm piston + 12 mm shaft.
364: 36 mm piston + 14 mm shaft. 366: 36 mm piston + 16 mm shaft.
456: 45 mm piston + 16 mm shaft.
506: 50 mm piston + 16 mm shaft.
3020: 30 mm piston + 20 mm shaft.
Digit 6: This digit will display a hyphen (-) or a slash (/):
Digit 7: This digit indicates the length of the shock absorber in millimeters. Digits 10-13 (characteristics):
P: Spring preload adjustment via scale.
T: Spring preload adjustment via thread.
H: Hydraulic spring preload adjustment.
HI: Hydraulic spring preload adjustment (on the hose).
H2: Adjustment with pneumatic preload adjuster.
MI: Mechanical preload adjustment.
R: Adjustable rebound.
C: Adjustable compression.
W: Adjustable high and low speed compression.
V: VBSC - High and low speed compression.
L: Adjustable height +5/-5 mm.
Digit 14: This digit will contain a hyphen (-) or a slash (/):
Digits 15-16: This digit indicates the specification sheet number. Digit 18-19 (tube/spring/reservoir color (optional):
1: Chrome / 9 HT (Hard) / Pearl / Bronze. 2: White / A Silver. 3: Gold / P Pink. 4: Yellow / Z Zinc. 5: Red / T Platinum Gray. 6: Blue / Q Turquoise. 7: Orange / G Gray. 8: Black / Non Reservoir.
Digit 20 (optional):
AB: Damper with bearing and 30 clicks of compression.
B: Black Edition Damper (complete).
F: Off-Road Damper.
I: Idol Damper (90-degree reservoir against the damper body).
O: Shock with offset fork or eyelet.
R: Racing Product.
S: Classic Series (black sticker instead of red).
V: Barrel Spring.
