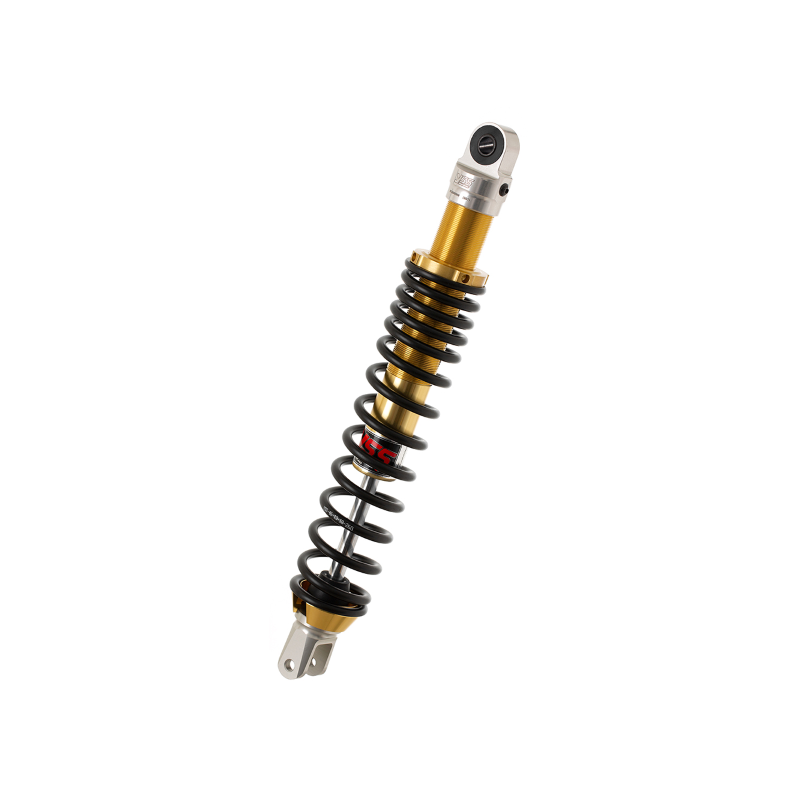

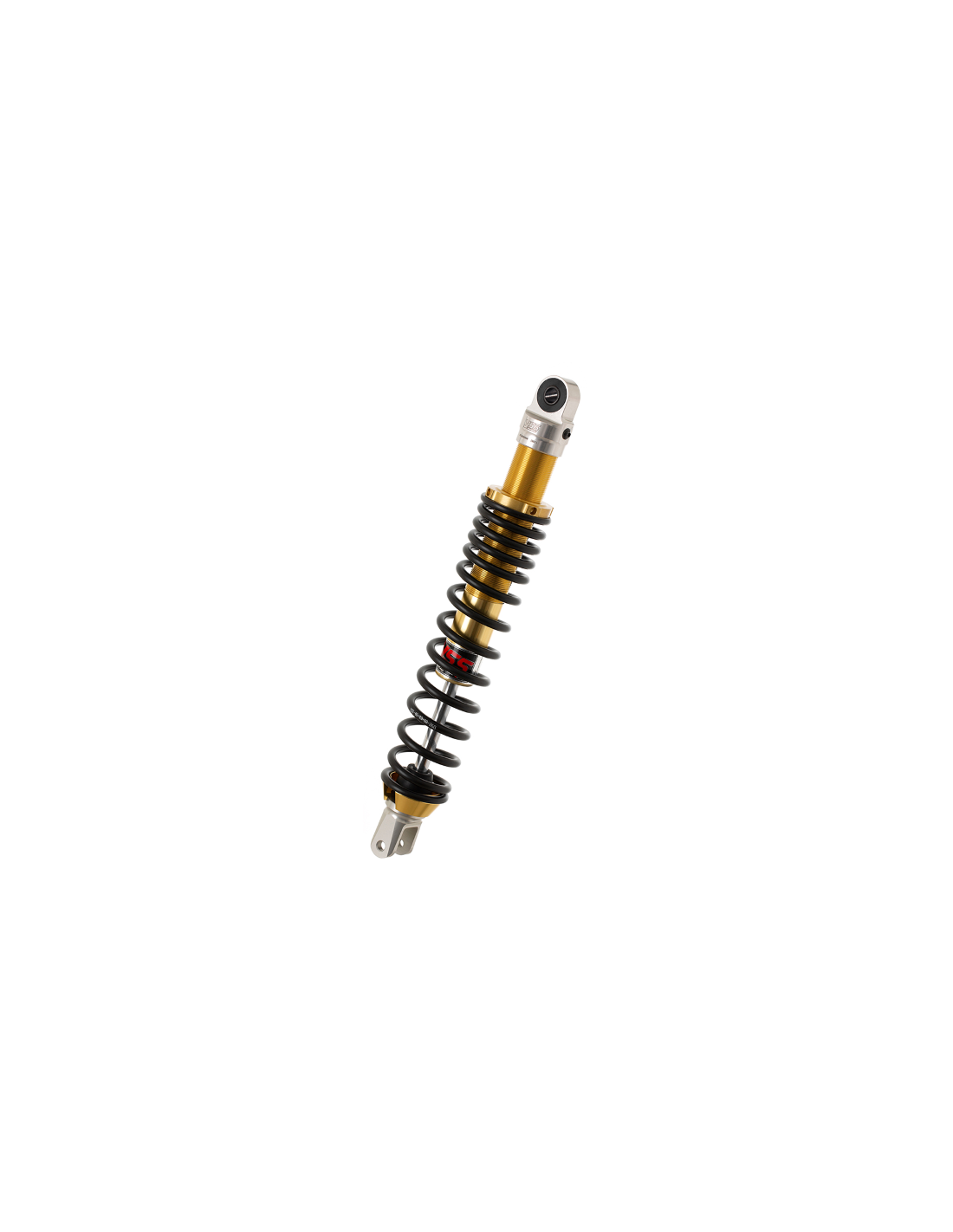

YSS SHOCK ABSORBER TE302-405T-04AL
YSS-ECO LINE twin scooter rear shock absorber with emulsion gas damper.
YAMAHA X-MAX 400 2013-2017 YP400R
YSS World Class Suspension is a leading Thai company in the development and production of suspensions worldwide, focused on continuous innovation, with the constant objective of offering quality products and advanced technology to guarantee the best performance.

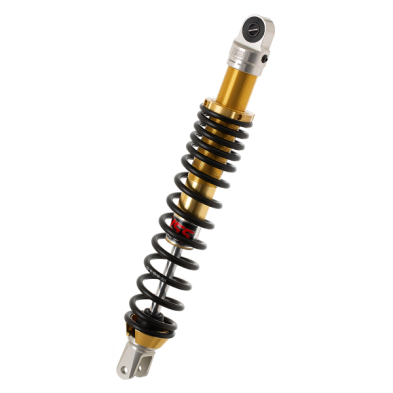

YSS SHOCK ABSORBER TE302-405T-04AL
YSS-ECO LINE twin scooter rear shock absorber with emulsion gas damper.
YAMAHA X-MAX 400 2013-2017 YP400R
YSS World Class Suspension is a leading Thai company in the development and production of suspensions worldwide, focused on continuous innovation, with the constant objective of offering quality products and advanced technology to guarantee the best performance.
How to interpret the YSS product reference:
Digit 1 (product group):
F: Front twin shock absorber.
V: Front monotube shock absorber.
R: Rear twin shock absorber.
M: Rear monotube shock absorber.
T: Rear twin shock absorber (scooter).
O: Rear monotube shock absorber (scooter). I: Inner tube.
K: Front cartridge.
Digit 2 (product type):
G, C: Piggyback gas shock absorber with external reservoir (G=Top Line and C=Eco Line).
U, K: Piggyback gas shock absorber with external reservoir button (U=Top Line and K=Eco Line).
X, O: Piggyback gas shock absorber with external reservoir on the hose (X=Top Line and O=Eco Line).
A: Split piston gas shock absorber.
Z, E: Emulsion gas shock absorber (Z=Top Line and E=Eco Line). T: Triple piston (ATPD).
B: Gas - DTG.
D: Shock absorber with double hydraulic tube.
S: Shock absorber with 1 hydraulic tube. Digits 3-5 (piston and shaft diameter):
168: 16 mm piston + 8 mm shaft.
188: 18 mm piston + 8 mm shaft.
220: 22 mm piston + 10 mm shaft.
222: 16 mm piston + 12 mm shaft.
302: 30 mm piston + 12 mm shaft.
304: 30 mm piston + 14 mm shaft.
306: 30 mm piston + 16 mm shaft.
308: 30 mm piston + 8 mm shaft.
362: 36 mm piston + 12 mm shaft.
364: 36 mm piston + 14 mm shaft. 366: 36 mm piston + 16 mm shaft.
456: 45 mm piston + 16 mm shaft.
506: 50 mm piston + 16 mm shaft.
3020: 30 mm piston + 20 mm shaft.
Digit 6: This digit will display a hyphen (-) or a slash (/):
Digit 7: This digit indicates the length of the shock absorber in millimeters. Digits 10-13 (characteristics):
P: Spring preload adjustment via scale.
T: Spring preload adjustment via thread.
H: Hydraulic spring preload adjustment.
HI: Hydraulic spring preload adjustment (on the hose).
H2: Adjustment with pneumatic preload adjuster.
MI: Mechanical preload adjustment.
R: Adjustable rebound.
C: Adjustable compression.
W: Adjustable high and low speed compression.
V: VBSC - High and low speed compression.
L: Adjustable height +5/-5 mm.
Digit 14: This digit will contain a hyphen (-) or a slash (/):
Digits 15-16: This digit indicates the specification sheet number. Digit 18-19 (tube/spring/reservoir color (optional):
1: Chrome / 9 HT (Hard) / Pearl / Bronze. 2: White / A Silver. 3: Gold / P Pink. 4: Yellow / Z Zinc. 5: Red / T Platinum Gray. 6: Blue / Q Turquoise. 7: Orange / G Gray. 8: Black / Non Reservoir.
Digit 20 (optional):
AB: Damper with bearing and 30 clicks of compression.
B: Black Edition Damper (complete).
F: Off-Road Damper.
I: Idol Damper (90-degree reservoir against the damper body).
O: Shock with offset fork or eyelet.
R: Racing Product.
S: Classic Series (black sticker instead of red).
V: Barrel Spring.
