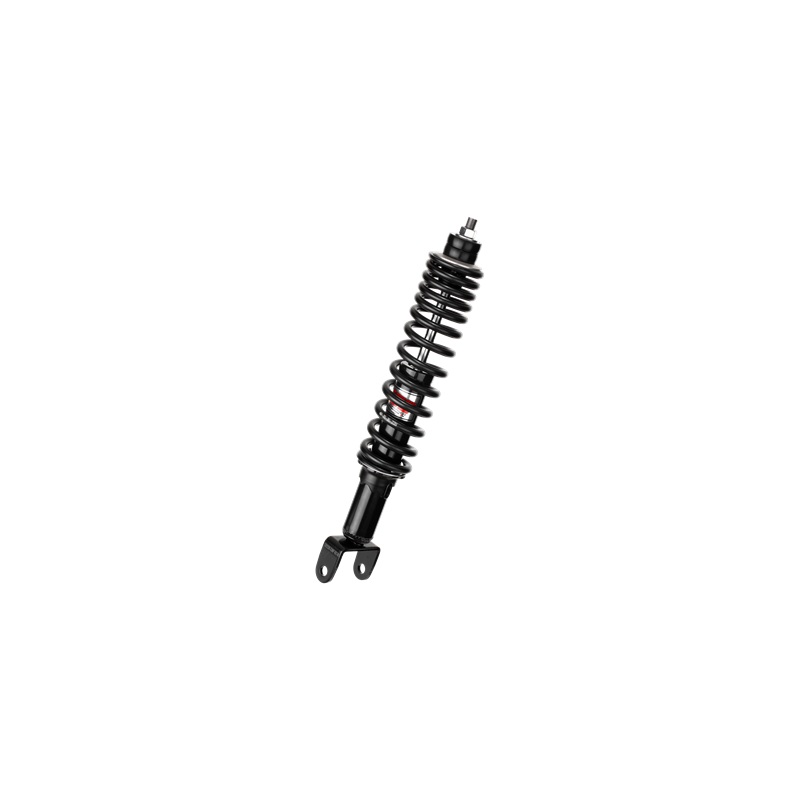

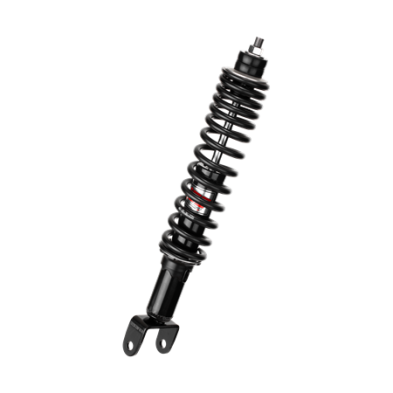

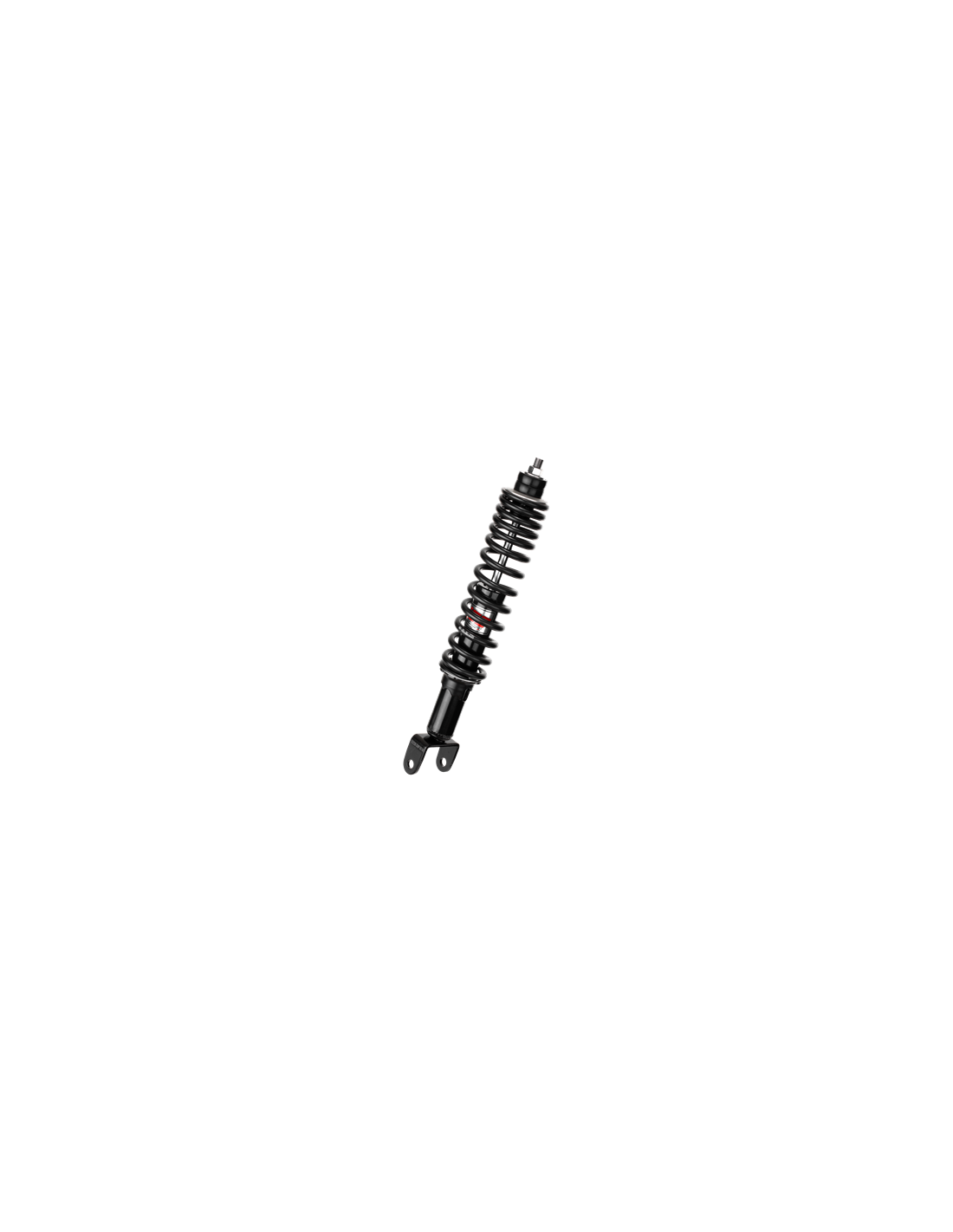

YSS SHOCK ABSORBER OD220-330P-02-88
HIGH PERFORMANCE PRO-X
OD220-330P-02-88
YSS SHOCK ABSORBER OD220-330P-02-88
HIGH PERFORMANCE PRO-X
OD220-330P-02-88
OD220-330P-02 / VESPA 125 1965-1983
OD220-330P-02 / VESPA 125 GT 1961-1973
OD220-330P-02 / VESPA 125 GTR 1968-1978
OD220-330P-02 / VESPA 125 PRIMAVERA 1967-1983
OD220-330P-02 / VESPA 125 PRIMAVERA ET3 1976-1990
OD220-330P-02 / VESPA 125 SPRINT 1959-1990
OD220-330P-02 / VESPA 125 SUPER 1965-1969
OD220-330P-02 / VESPA 125 TS 1975-1978
OD220-330P-02 / VESPA 150 1965-1979
OD220-330P-02 / VESPA 150 GL 1962-1965
OD220-330P-02 / VESPA 150 GS (GS4) 1962-1964
OD220-330P-02 / VESPA 150 SPRINT 1965-1974
OD220-330P-02 / VESPA 150 SPRINT VELOCE 1969-1979
OD220-330P-02 / VESPA 150 SUPER 1966-1979
OD220-330P-02 / VESPA 180 1965-1973
OD220-330P-02 / VESPA 180 RALLY 1968-1973
OD220-330P-02 / VESPA 180 SS SUPER SPORT 1965-1968
OD220-330P-02 / VESPA 50 ELESTART 1969-1975
OD220-330P-02 / VESPA 50 L 1966-1970
OD220-330P-02 / VESPA 50 N 1963-1971
OD220-330P-02 / VESPA 50 N 1972-1983
OD220-330P-02 / VESPA 50 R 1969-1983
OD220-330P-02 / VESPA 50 SPECIAL 1969-1983
OD220-330P-02 / VESPA 50 SS SUPER SPRINTER 1965-1971
OD220-330P-02 / VESPA 50S 1963-1993
OD220-330P-02 / VESPA 50SR 1975-1979
OD220-330P-02 / VESPA 90 1963-1988
OD220-330P-02 / VESPA 90 RACER 1963-1984
OD220-330P-02 / VESPA 90SS SUPER SPRINT 1965-1971
OD220-330P-02 / VESPA ET3 125 1976-1990
OD220-330P-02 / VESPA P 125 X 1959-1990
OD220-330P-02 / VESPA P 150 E 1962-1979
OD220-330P-02 / VESPA P 150 S 1962-1979
OD220-330P-02 / VESPA P 150 X 1978-1981
OD220-330P-02 / VESPA PK 125 1982-1985
OD220-330P-02 / VESPA PK 125 ELESTART 1983-1991
OD220-330P-02 / VESPA PK 50 ELESTART 1983-1998
OD220-330P-02 / VESPA PK 50 S 1982-1986
OD220-330P-02 / VESPA PK 50 S E-START 1983-1984
OD220-330P-02 / VESPA PK 50 S LUSSO 1985-1986
OD220-330P-02 / VESPA PK 50 S LUSSO E-START 1985-1986
OD220-330P-02 / VESPA PK 50 SS 1982-1989
OD220-330P-02 / VESPA PK 50 XL 1986-1990
OD220-330P-02 / VESPA PK 80 S 1982-1986
OD220-330P-02 / VESPA PK 80 S E START 1983-1988
OD220-330P-02 / VESPA PK 80 S LUSSO 1985-1985
How to interpret the YSS product reference:
Digit 1 (product group):
F: Front double shock absorber.
V: Front monotube shock absorber.
R: Rear double shock absorber.
M: Rear monotube shock absorber.
T: Rear scooter double shock absorber.
O: Rear scooter monotube shock absorber.
I: Inner tube.
K: Front cartridge.
Digit 2 (product type):
G, C: Piggy Back gas shock absorber with external upper reservoir (G=Top Line and C=Eco Line).
U, K: Piggy Back gas shock absorber with external reservoir button (U=Top Line and K=Eco Line).
X, O: Gas shock absorber with external Piggy Back reservoir in the hose (X=Top Line and O=Eco Line).
A: Gas shock absorber with split piston.
Z, E: Emulsion gas shock absorber (Z=Top Line and E=Eco Line). T: Triple piston (ATPD).
B: Gas - DTG.
D: Shock absorber with double hydraulic tube.
S: Shock absorber with 1 hydraulic tube.
Digit 3-5 (piston and shaft diameter):
168: 16 mm piston + 8 mm shaft.
188: 18 mm piston + 8 mm shaft.
220: 22 mm piston + 10 mm shaft.
222: 16 mm piston + 12 mm shaft.
302: 30mm piston + 12mm shaft.
304: 30mm piston + 14mm shaft.
306: 30mm piston + 16mm shaft.
308: 30mm piston + 8mm shaft.
362: 36mm piston + 12mm shaft.
364: 36mm piston + 14mm shaft.
366: 36mm piston + 16mm shaft.
456: 45mm piston + 16mm shaft.
506: 50mm piston + 16mm shaft.
3020: 30mm piston + 20mm shaft.
Digit 6: This digit will be marked with a dash (-) or a slash (/):
Digit 7: This digit indicates the length of the shock absorber in millimeters. Digit 10-13 (characteristics):
P: Spring preload adjustment using a scale.
T: Spring preload adjustment using a thread.
H: Hydraulic spring preload adjustment.
HI: Hydraulic spring preload adjustment (on the hose).
H2: Adjustment with pneumatic preload regulator.
MI: Mechanical preload adjustment.
R: Adjustable rebound.
C: Adjustable compression.
W: Adjustable high and low speed compression.
V: VBSC- High and low compression.
L: Adjustable height +5/-5mm.
Digit 14: This digit will be marked with a dash (-) or a slash (/):
Digit 15-16: This digit indicates the specification sheet number. Digit 18-19 (tube/spring/reservoir color (optional):
1: Chrome / 9 HT (Hard) / Pearl / Bronze. 2: White / A Silver. 3: Gold / P Pink. 4: Yellow / Z Zinc. 5: Red / T Platinum Gray. 6: Blue / Q Turqoise. 7: Orange / G Gray. 8: Black / Non Reservoir.
Digit 20 (optional):
AB: Shock with bearing and 30 clicks of compression.
B: Black Edition shock (complete).
F: Off-Road shock.
I: Idol shock (90-degree reservoir against the shock body).
O: Shock with off-set fork or eye-let.
R: Racing Product.
S: Classic Series (Black decal instead of red)
V: Barrel Spring.
