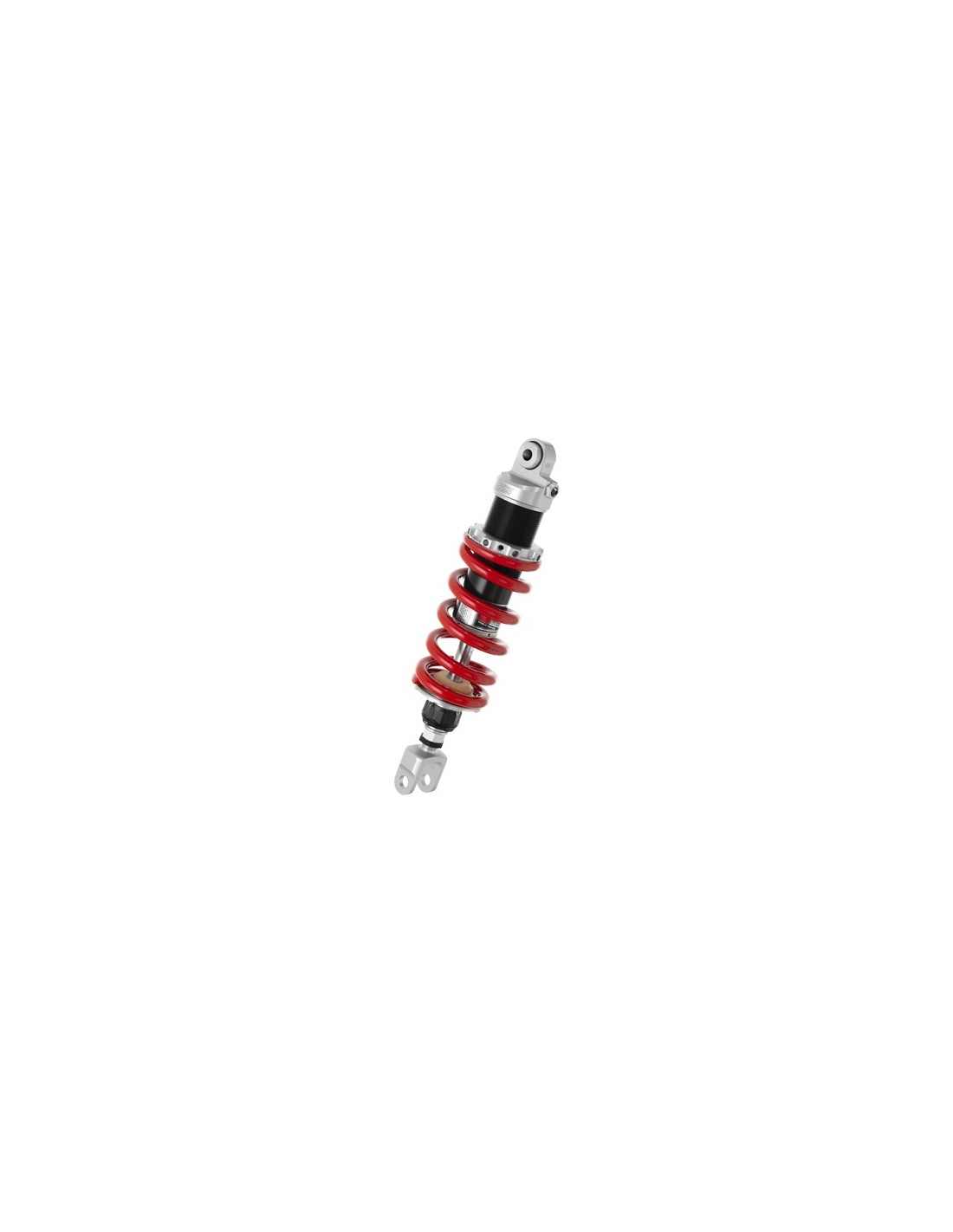

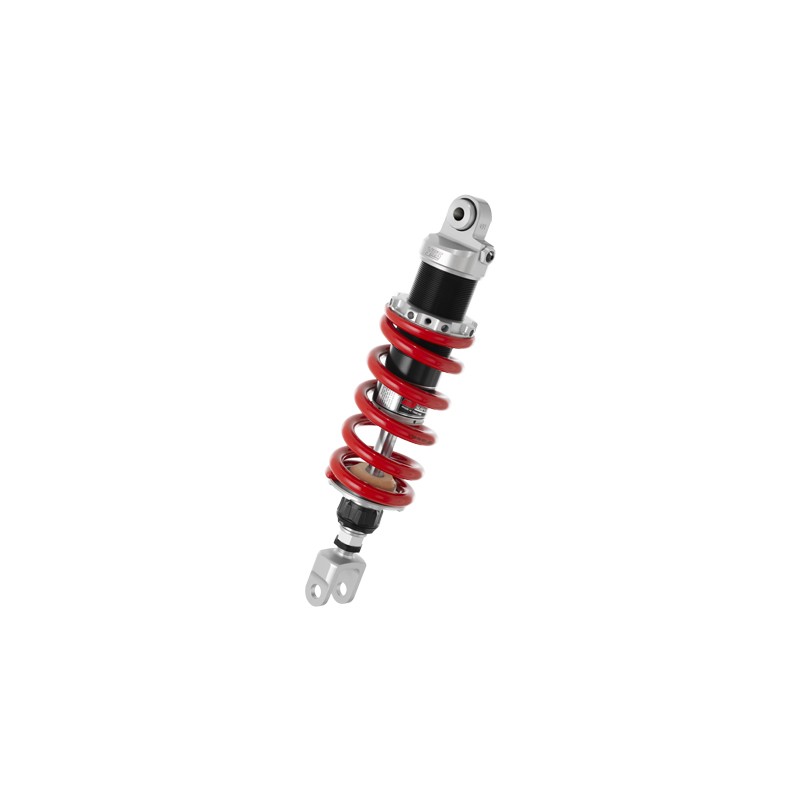

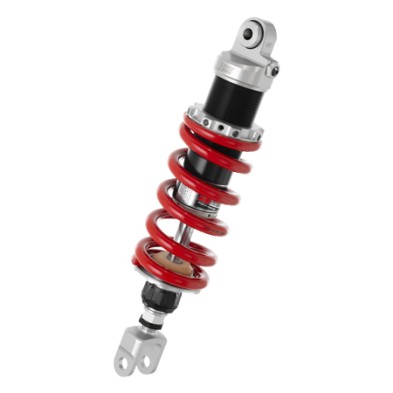

YSS SHOCK ABSORBER MZ456-350TRL-13-85
TRIUMPH TIGER 1050i 2007 - 2016
GAS TOP LINE TOP LINE (STD)
MZ456-350TRL-13-85
YSS SHOCK ABSORBER MZ456-350TRL-13-85
TRIUMPH TIGER 1050i 2007 - 2016
GAS TOP LINE TOP LINE (STD)
MZ456-350TRL-13-85
How to interpret the YSS product reference:
Digit 1 (product group):
F: Front twin shock absorber.
V: Front monotube shock absorber.
R: Rear twin shock absorber.
M: Rear monotube shock absorber.
T: Rear twin shock absorber (scooter).
O: Rear monotube shock absorber (scooter).
I: Inner tube.
K: Front cartridge. Digit 2 (product type):
G, C: Gas shock absorber with external Piggy Back reservoir (G=Top Line and C=Eco Line).
U, K: Gas shock absorber with external Piggy Back reservoir button (U=Top Line and K=Eco Line).
X, O: Gas shock absorber with external Piggy Back reservoir on the hose (X=Top Line and O=Eco Line).
A: Gas shock absorber with split piston.
Z, E: Emulsion gas shock absorber (Z=Top Line and E=Eco Line). T: Triple piston (ATPD).
B: Gas - DTG.
D: Shock absorber with double hydraulic tube.
S: Shock absorber with 1 hydraulic tube.
Digits 3-5 (piston and shaft diameter):
168: 16 mm piston + 8 mm shaft. 188: 18 mm piston + 8 mm shaft.
220: 22 mm piston + 10 mm shaft.
222: 16 mm piston + 12 mm shaft.
302: 30 mm piston + 12 mm shaft.
304: 30 mm piston + 14 mm shaft.
306: 30 mm piston + 16 mm shaft.
308: 30 mm piston + 8 mm shaft.
362: 36 mm piston + 12 mm shaft.
364: 36 mm piston + 14 mm shaft.
366: 36 mm piston + 16 mm shaft. 456: 45 mm piston + 16 mm shaft.
506: 50 mm piston + 16 mm shaft.
3020: 30 mm piston + 20 mm shaft.
Digit 6: This digit will show a hyphen (-) or a slash (/):
Digit 7: This digit indicates the length of the shock absorber in millimeters. Digits 10-13 (characteristics):
P: Spring preload adjustment via scale.
T: Spring preload adjustment via thread.
H: Hydraulic spring preload adjustment.
HI: Hydraulic spring preload adjustment (on the hose).
H2: Adjustment with pneumatic preload adjuster.
MI: Mechanical preload adjustment.
R: Adjustable rebound.
C: Adjustable compression.
W: Adjustable high and low speed compression. V: VBSC - High and low compression.
L: Adjustable height +5/-5mm.
Digit 14: This digit will contain a hyphen (-) or a slash (/):
Digit 15-16: This digit indicates the specification sheet number. Digit 18-19 (tube/spring/reservoir color (optional):
1: Chrome / 9 HT (Hard) / Pearl / Bronze. 2: White / A Silver. 3: Gold / P Pink. 4: Yellow / Z Zinc. 5: Red / T Platinum Gray. 6: Blue / Q Turquoise. 7: Orange / G Gray. 8: Black / Non Reservoir.
Digit 20 (optional):
AB: Damper with bearing and 30 clicks of compression.
B: Black Edition Damper (complete).
F: Off-Road Damper.
I: Idol Damper (90-degree reservoir against the damper body).
O: Shock with offset fork or eyelet.
R: Racing Product.
S: Classic Series (black sticker instead of red).
V: Barrel Spring.
