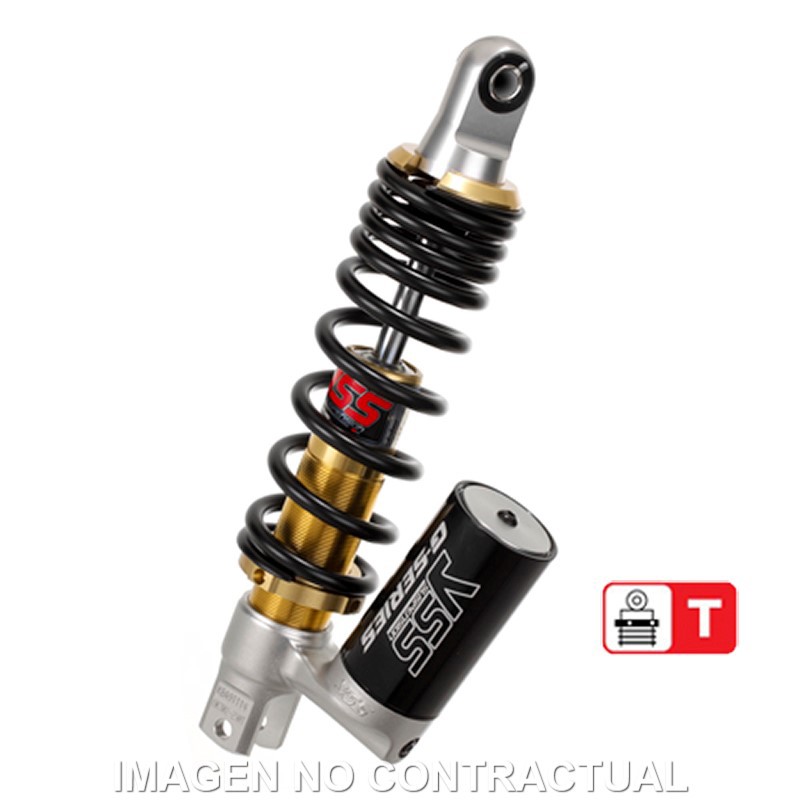

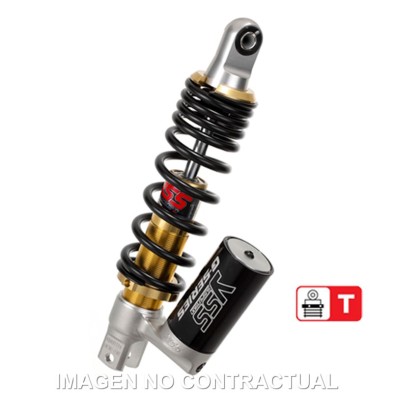

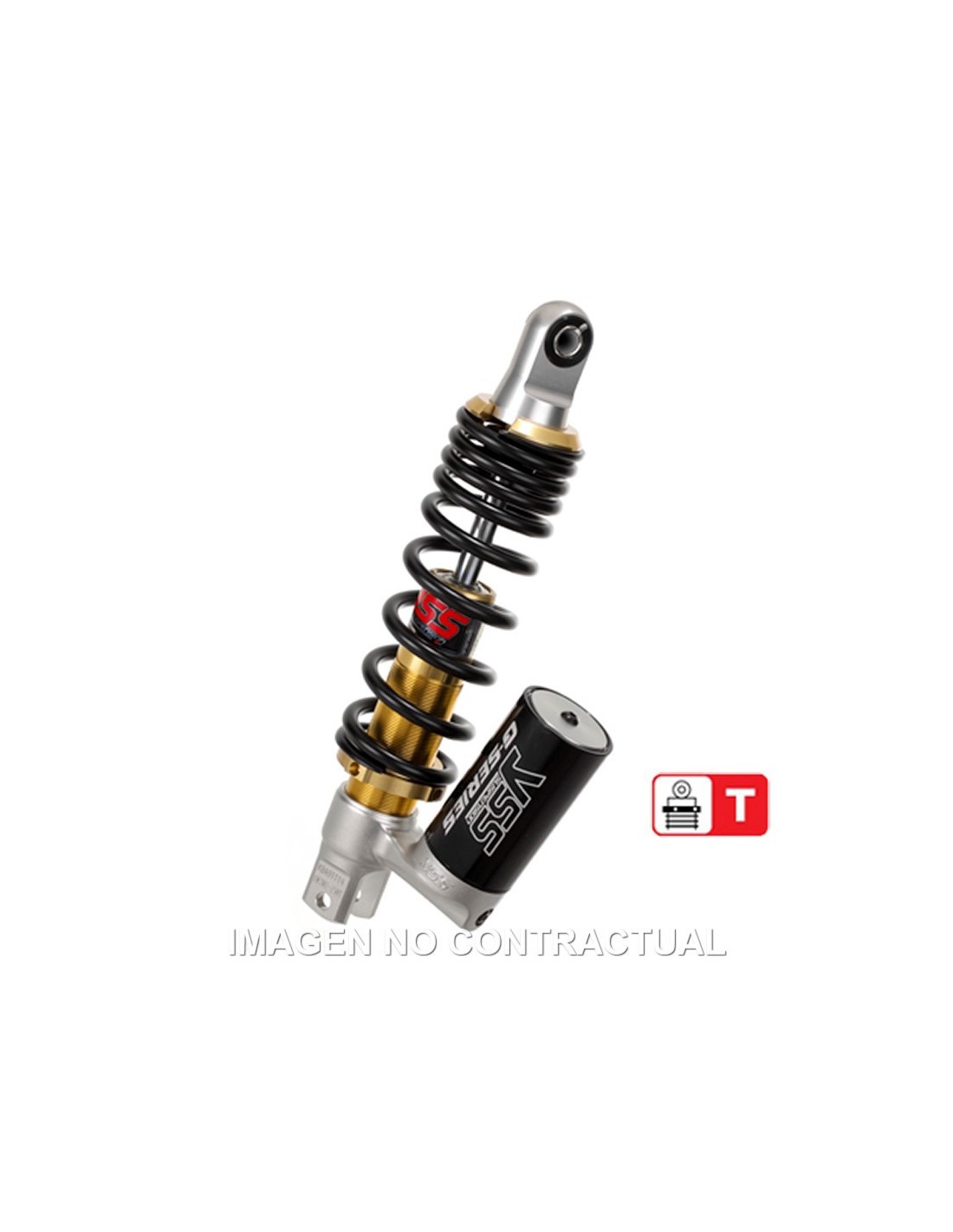

YSS REAR SHOCK ABSORBER OK302-280T-01AL-388

YSS REAR SHOCK ABSORBER OK302-280T-01AL-388

OK302-280T-01AL-388

YSS GAS ECO LINE REAR SHOCK ABSORBER WITH LOWER BOTTLE

OK302-280T-01AL / 50 EURO 1 2000-2005

OK302-280T-01AL / 50 EURO 2 2000-2005

OK302-280T-01AL / AEROX 100 2000-2003

OK302-280T-01AL / AEROX 50 2013-2016

OK302-280T-01AL / ARAGON 50 2007-2014

OK302-280T-01AL / ARAGON 50 GP 2006-2014

OK302-280T-01AL / BOOSTER 100 1999-2002

OK302-280T-01AL / BUBU 2003-2008

OK302-280T-01AL / BUXY 50 1995-1997

OK302-280T-01AL / BUXY M 50 1995-1997

OK302-280T-01AL / BUXY RS 50 1995-1997

OK302-280T-01AL / COMPETITION 50 2007-2007

OK302-280T-01AL / EAGLE 125 2007-2010

OK302-280T-01AL / EAGLE 50 2007-2010

OK302-280T-01AL / F-ACT 125 2008-2014

OK302-280T-01AL / F-ACT 50 2007-2016

OK302-280T-01AL / FOCUS 50 2005-2007

OK302-280T-01AL / IDEO 50 2005-2015

OK302-280T-01AL / METROPOLIS 50 SCLM 1989-2002

OK302-280T-01AL / NAKED 2013-2016

OK302-280T-01AL / NEO'S 100 1999-2003

OK302-280T-01AL / NITRO 100 2000-2003

OK302-280T-01AL / NITRO 50 1997-2006

OK302-280T-01AL / NITRO NAKED 2005-2006

OK302-280T-01AL / OLIVER 50 2003-2005

OK302-280T-01AL / OLIVER 50 CITY 2006-2007

OK302-280T-01AL / OLIVER 50 SPORT 2006-2007

OK302-280T-01AL / OVETTO 100 1999-2003

OK302-280T-01AL / OVETTO 50 1997-2005

OK302-280T-01AL / POPCORN 50 2000-2005

OK302-280T-01AL / RAPIDO 50 1985-1993

OK302-280T-01AL / RAPIDO 50 ST 1985-1993

OK302-280T-01AL / RAPIDO 50 STLS FUN RAPIDO 1985-1993

OK302-280T-01AL / SPEEDAKE 50 1995-1997

OK302-280T-01AL / SPEEDJET 50 2007-2015

OK302-280T-01AL / SPIN GE 50 2007-2009

OK302-280T-01AL / SQUAB 50 1996-1997

OK302-280T-01AL / STROKE 50 2005-2009

OK302-280T-01AL / TKR 307 WRC 50 2005-2005

OK302-280T-01AL / TKR 50 2001-2011

OK302-280T-01AL / TKR 50 METAL-X 2002-2003

OK302-280T-01AL / TKR 50 METAL-X FURIOUS 2003-2011

OK302-280T-01AL / TKR FURIOUS 50 2003-2011

OK302-280T-01AL / TREKKER 100 1998-2000

OK302-280T-01AL / TREKKER 50 1998-2000

OK302-280T-01AL / VIVACITY 100 1999-2007

OK302-280T-01AL / VIVACITY 50 1999-2004

OK302-280T-01AL / XOR 50 2005-2009

OK302-280T-01AL / YN 50 NEO'S 1997-2015

OK302-280T-01AL / YOUNG BUBU 2003-2008

How to interpret the YSS product reference:

Digit 1 (product group):

F: Front twin shock absorber.

V: Front monotube shock absorber.

R: Rear twin shock absorber.

M: Rear monotube shock absorber.

T: Rear scooter twin shock absorber.

O: Rear monotube shock absorber.

I: Inner tube.

K: Front cartridge.

Digit 2 (product type):

G, C: Gas-filled shock absorber with top-mounted external reservoir (G = Top Line and C = Eco Line).

U, K: Gas-filled shock absorber with external reservoir (U = Top Line and K = Eco Line).

X, O: Gas-filled shock absorber with external reservoir (X = Top Line and O = Eco Line).

A: Gas-filled shock absorber with split piston.

Z, E: Emulsion gas shock absorber (Z = Top Line and E = Eco Line). T: Triple piston (ATPD).

B: Gas - DTG.

D: Shock absorber with double hydraulic tube.

S: Shock absorber with single hydraulic tube.

Digits 3-5 (piston and shaft diameter):

168: 16 mm piston + 8 mm shaft.

188: 18 mm piston + 8 mm shaft.

220: 22 mm piston + 10 mm shaft.

222: 16 mm piston + 12 mm shaft.

302: 30 mm piston + 12 mm shaft.

304: 30 mm piston + 14 mm shaft.

306: 30 mm piston + 16 mm shaft.

308: 30 mm piston + 8 mm axle.

362: 36 mm piston + 12 mm axle.

364: 36 mm piston + 14 mm axle.

366: 36 mm piston + 16 mm axle.

456: 45 mm piston + 16 mm axle.

506: 50 mm piston + 16 mm axle.

3020: 30 mm piston + 20 mm axle.

Digit 6: This digit will display a hyphen (-) or a slash (/):

Digit 7: This digit indicates the shock length in millimeters. Digits 10-13 (characteristics):

P: Spring preload adjustment using a scale.

T: Threaded spring preload adjustment.

H: Hydraulic spring preload adjustment.

HI: Hydraulic spring preload adjustment (in the hose).

H2: Pneumatic preload adjustment.

MI: Mechanical preload adjustment.

R: Adjustable rebound.

C: Adjustable compression.

W: Adjustable high and low speed compression.

V: VBSC - High and low compression.

L: Adjustable height +5/-5 mm.

Digit 14: This digit will appear with a hyphen (-) or a slash (/):

Digit 15-16: This digit indicates the specification sheet number. Digits 18-19 (tube / spring / reservoir color (optional):

1: Chrome / 9 HT (Hard) / Pearl / Bronze. 2: White / A Silver. 3: Gold / P Pink. 4: Yellow / Z Zinc. 5: Red / T Platinum Gray. 6: Blue / Q Turqoise. 7: Orange / G Gray. 8: Black / Non-Reservoir.

Digit 20 (optional):

AB: Shock with bearing and 30 clicks of compression.

B: Black Edition shock (complete).

F: Off-Road shock.

I: Idol shock (90-degree reservoir against the shock body).

O: Shock with offset fork or eyelet.

R: Racing product.

S: Classic Series (black sticker instead of red)

V: Barrel spring.
