VERTEX PISTON KITS VTKTC24448D
Models More Information CC Year
Fantic XEF Euro5 450 450 22/24
Fantic XXF Euro5 450 450 22/24
Yamaha WR F 450 450 21/23
Yamaha YZ F (CJ26) 450 450 20/22
Vertex Piston Kit (D), Gasket Kit, and Timing Chain VERTEX - 4T

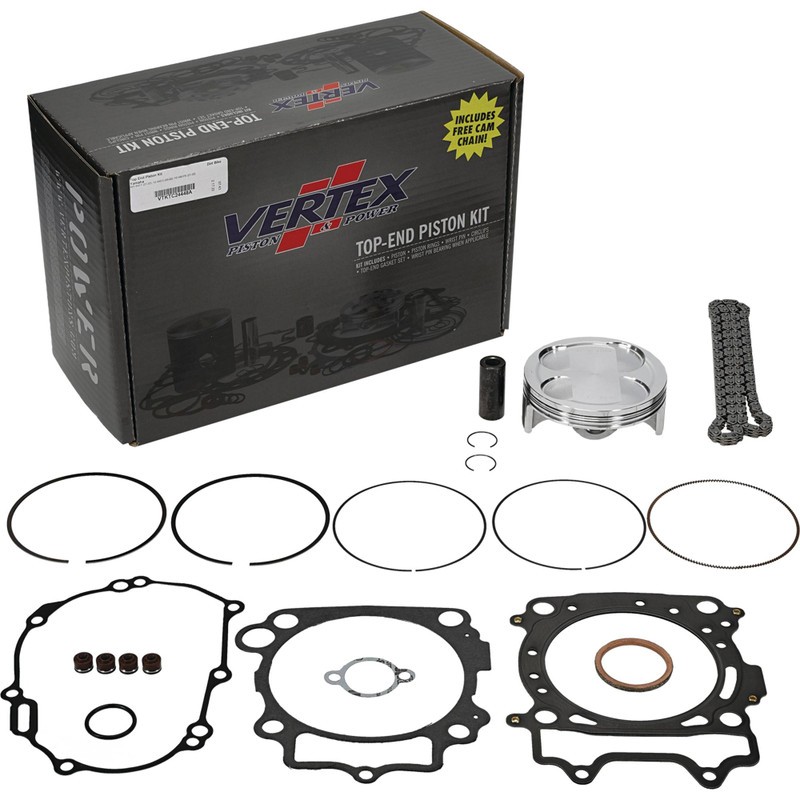

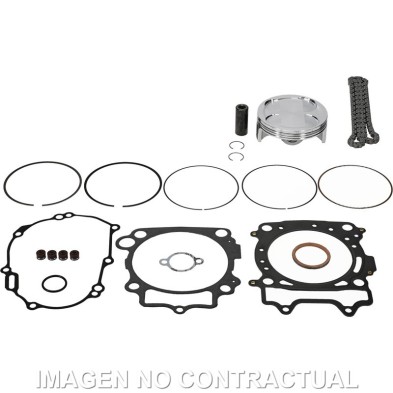

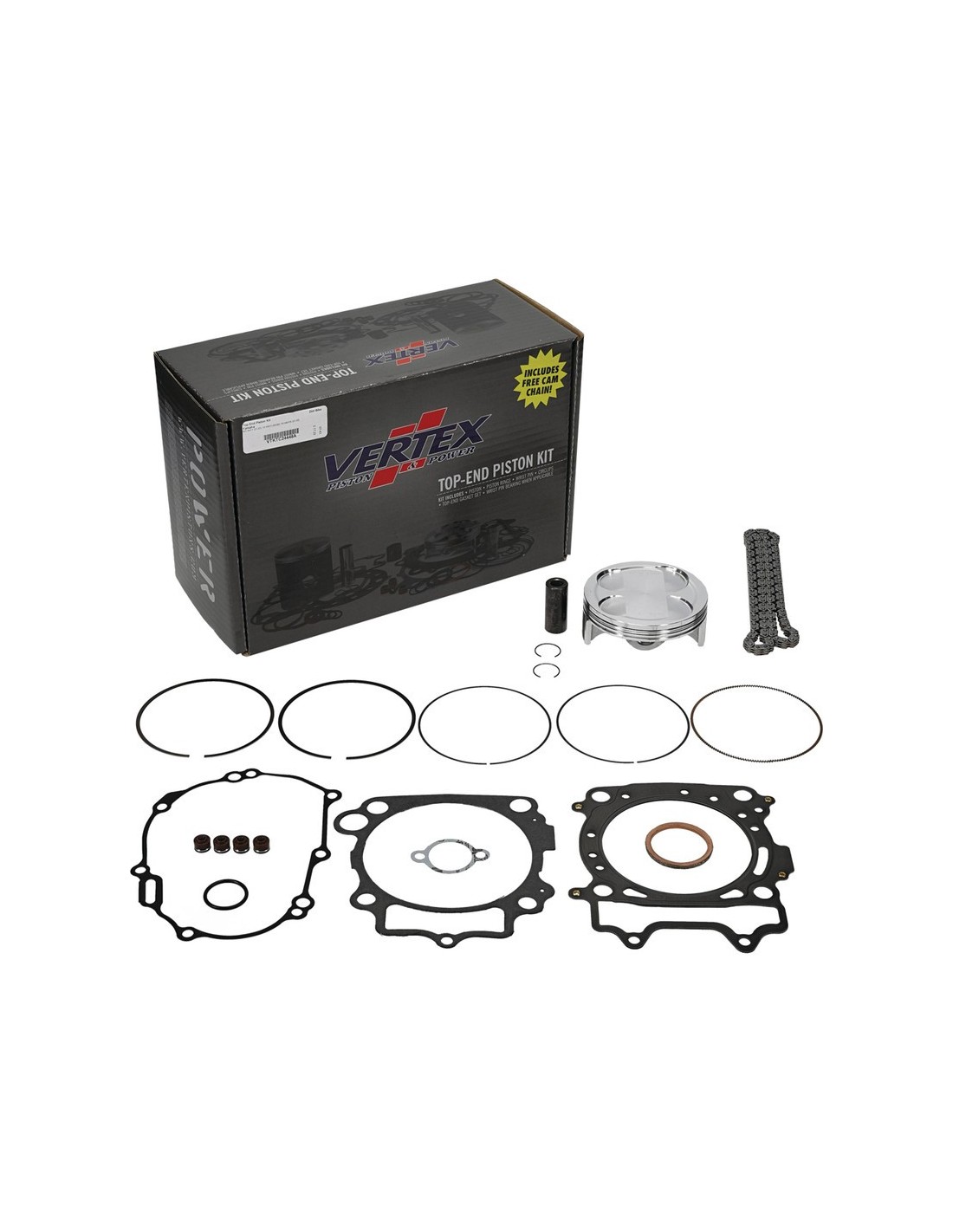

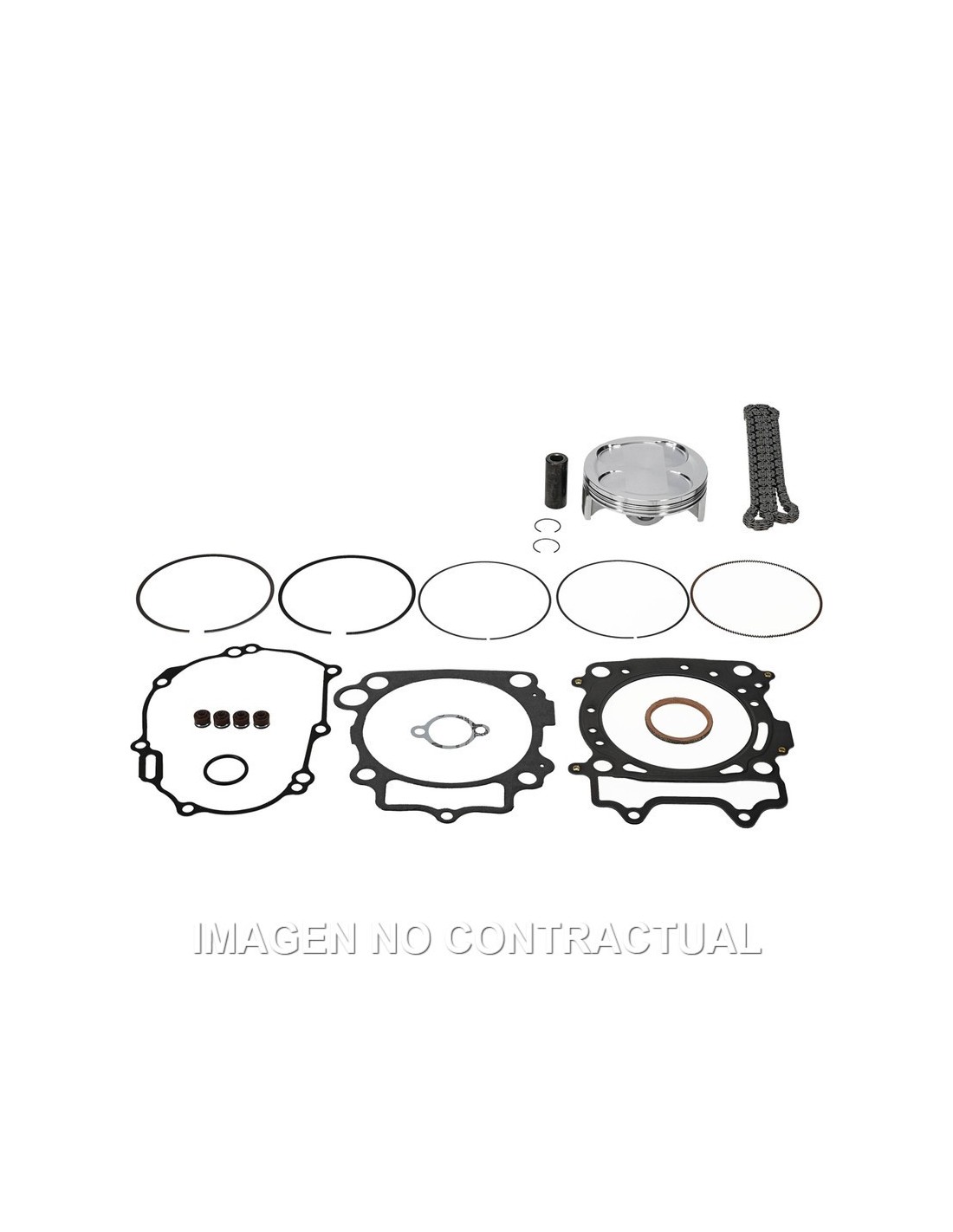

The Vertex top-end piston kit provides everything needed for top-end engine rebuilds, eliminating the hassle of sourcing separate components. The kit includes a Vertex piston, piston rings, gudgeon pin, circlips, and a top-end gasket kit.
VERTEX PISTON KITS VTKTC24448D
Models More Information CC Year
Fantic XEF Euro5 450 450 22/24
Fantic XXF Euro5 450 450 22/24
Yamaha WR F 450 450 21/23
Yamaha YZ F (CJ26) 450 450 20/22
Vertex Piston Kit (D), Gasket Kit, and Timing Chain VERTEX - 4T
The Vertex top-end piston kit provides everything needed for top-end engine rebuilds, eliminating the hassle of sourcing separate components. The kit includes a Vertex piston, piston rings, gudgeon pin, circlips, and a top-end gasket kit.
A piston can be used with the standard cylinder bore to maximize power and performance in 4-stroke applications. A Hot Cams timing chain is included.
Vertex Pistons: Vertex pistons are forged from a 2618 aluminum alloy containing copper and magnesium. This forging withstands higher temperatures and improves strength and durability, maximizing power and performance. It also reduces friction and oil consumption.
Vertex Gasket Kits: The gasket kit contains all the gaskets needed to rebuild the upper engine. The kit includes a cylinder head gasket, cylinder base gasket, and exhaust gasket, as well as the O-rings needed to assemble the cylinder and cylinder head.
Cylinder Bore (mm) 97
Displacement (cc) 450
Piston Bore (mm) 96.98
Compression Ratio 12.8:1
