VERTEX PISTON KITS VTK22584B2
VERTEX PISTON KIT (B) YAMAHA YZ-WR 250 (02/24) - FANTIC XX 250 (22/24)
Vertex Piston Kit (B), Top End Gaskets, and Needle Cage - 2-Stroke
The Vertex Top End Piston Kit provides everything needed for top end engine rebuilds, eliminating the hassle of sourcing separate components.
Models More Information CC Year
Fantic XX Euro5 250 250 22/24
Yamaha WR F 250 250 02/24
Yamaha YZ 250 250 02/24
VERTEX PISTON KITS VTK22584B2
VERTEX PISTON KIT (B) YAMAHA YZ-WR 250 (02/24) - FANTIC XX 250 (22/24)
Vertex Piston Kit (B), Top End Gaskets, and Needle Cage - 2-Stroke
The Vertex Top End Piston Kit provides everything needed for top end engine rebuilds, eliminating the hassle of sourcing separate components.
Models More Information CC Year
Fantic XX Euro5 250 250 22/24
Yamaha WR F 250 250 02/24
Yamaha YZ 250 250 02/24

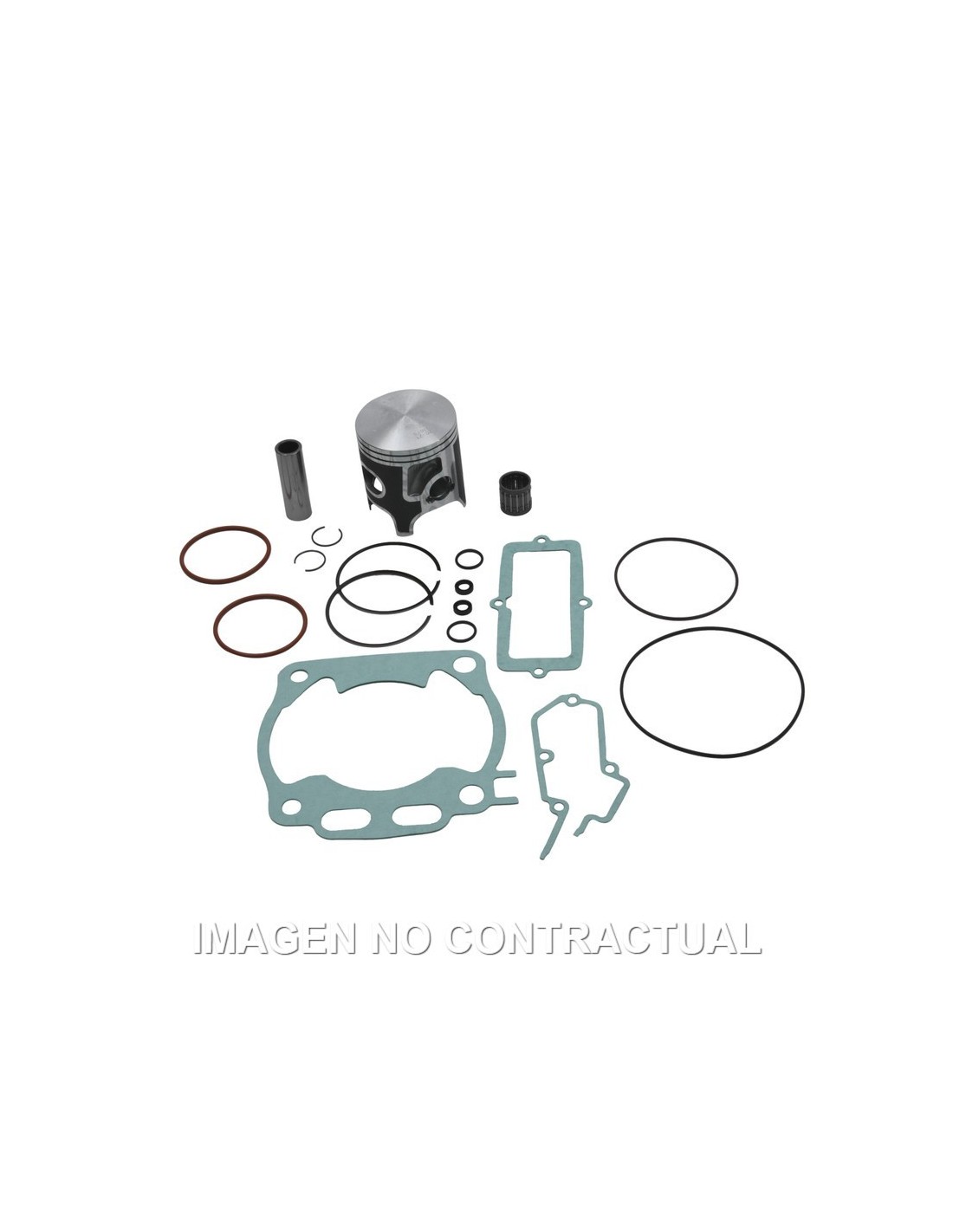

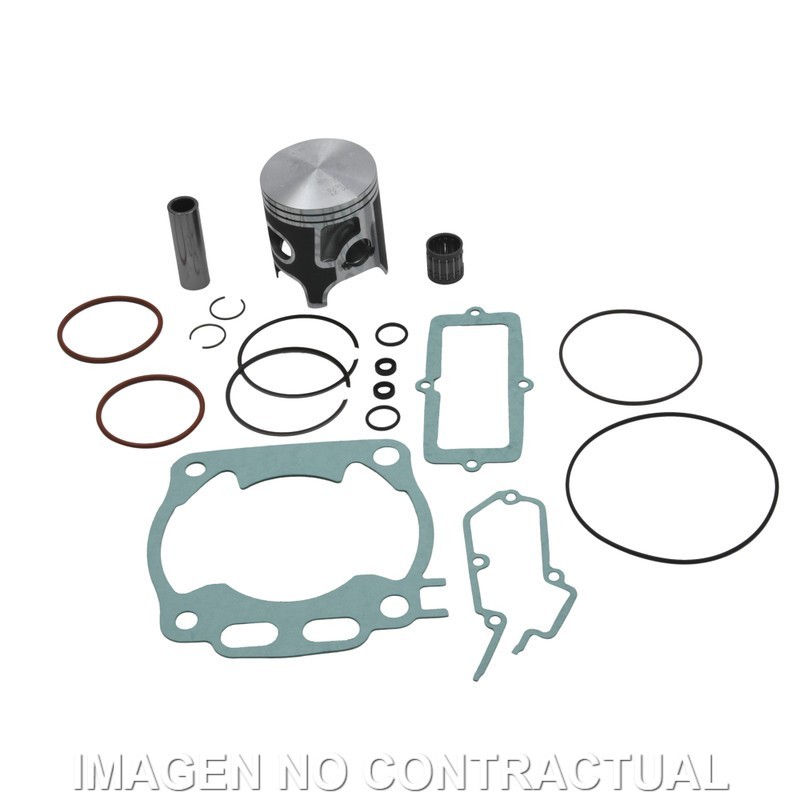

The kit includes a Vertex piston, piston rings, needle cage, gudgeon pin, circlips, and a top end gasket kit. Piston A utilizes the standard cylinder bore to maximize power and performance. Vertex Pistons: Vertex pistons are forged from a 2618 aluminum alloy containing copper and magnesium. This forging withstands higher temperatures and improves strength and durability, maximizing power and performance. It also reduces friction.
Vertex Gasket Kits: The gasket kit contains all the gaskets needed to rebuild the upper engine. The kit includes a cylinder head gasket, cylinder base gasket, and exhaust gasket, as well as the O-rings needed to assemble the cylinder and cylinder head.
Cylinder Bore (mm) 66.4
Displacement (cc) 250
Piston Bore (mm) 66.35
