VERTEX FORGED PISTON KITS VTKTC24615C

VERTEX FORGED PISTON KITS VTKTC24615C

Models More Information CC Year

Gas Gas EC-F 4-stroke (2020-2024) 250 250 24/24

Gas Gas MC-F 4-stroke (2021-2024) 250 250 24/24

Husqvarna FC 4-stroke 250 250 23/24

Husqvarna FE 4-stroke 250 250 24/24

KTM EXC F 4-stroke Euro 5 250 250 24/24

KTM SXF 4-stroke (2021-2025) 250 250 23/24

Vertex Piston Kit (C), Gasket Kit, and Timing Chain VERTEX - 4-stroke

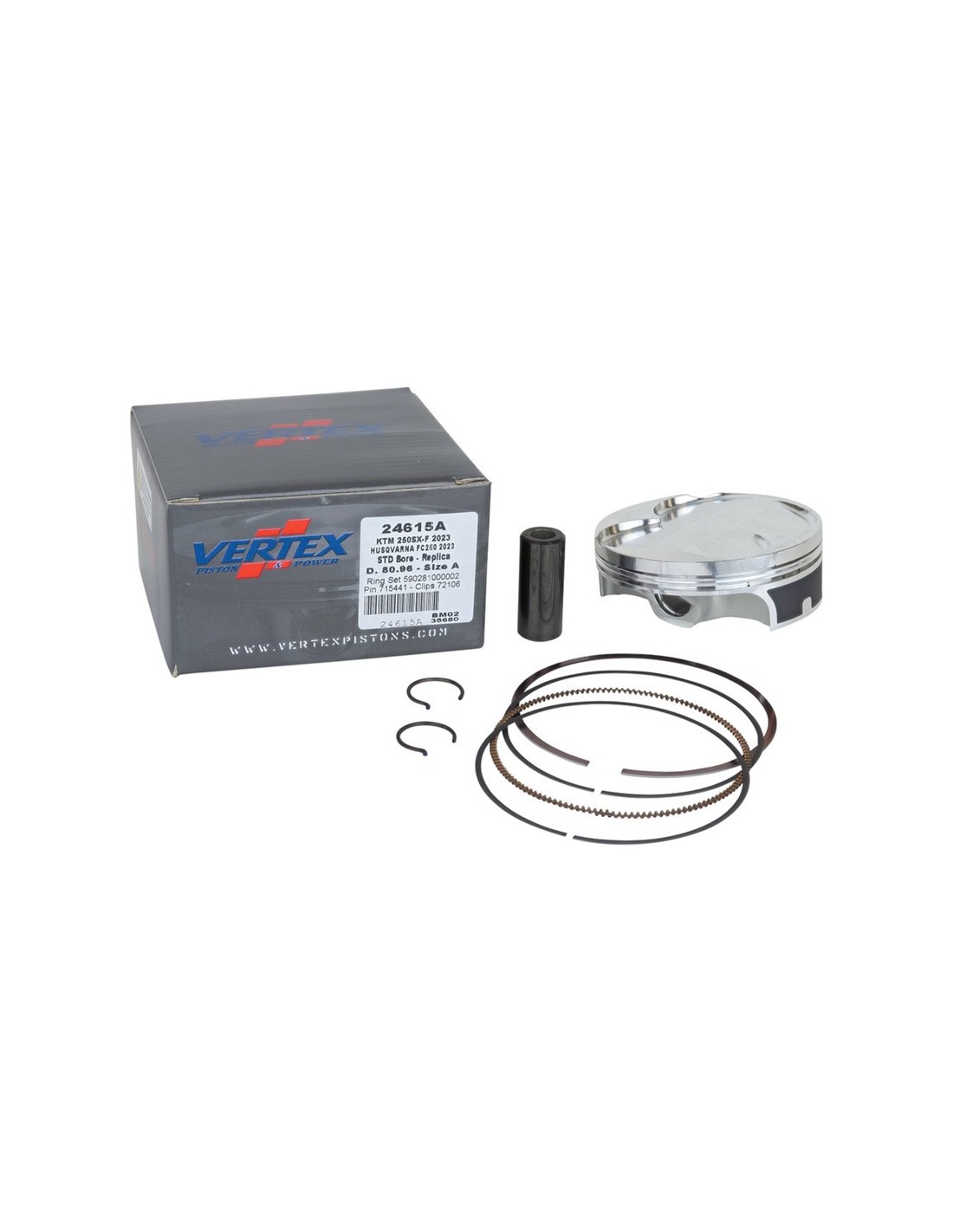

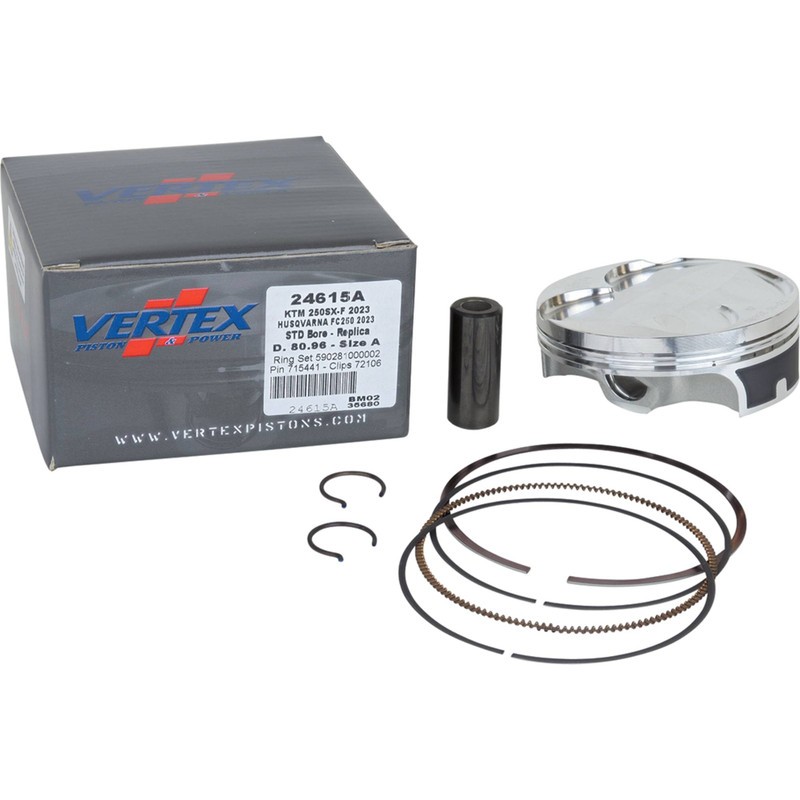

The Vertex top-end piston kit provides everything you need for the Top-end engine rebuild, eliminating the hassle of sourcing separate components. The kit includes a Vertex piston, piston rings, gudgeon pin, circlips, and a top-end gasket kit.

A-pistons are used with the standard cylinder bore to maximize power and performance in 4-stroke applications. A Hot Cams timing chain is included.

Vertex Pistons: Vertex pistons are forged from a 2618 aluminum alloy containing copper and magnesium. This forging withstands higher temperatures and improves strength and durability, maximizing power and performance. It also reduces friction and oil consumption.

Vertex Gasket Kits: The gasket kit contains all the gaskets needed to rebuild the top end of the engine. The kit includes a cylinder head gasket, cylinder base gasket, and exhaust gasket, as well as the O-rings needed to assemble the cylinder and cylinder head.

Cylinder Diameter (mm) 81

Displacement (cc) 250

Piston Diameter 80.98
