VERTEX FORGED PISTON KITS VTKTC24456A

VERTEX FORGED PISTON KITS VTKTC24456A

VERTEX PISTON KIT (A) KAWASAKI KX 250F (20) Kawasaki KX F 250 250 20/20

Vertex Piston Kit (A), Gasket Kit, and Vertex VERTEX Timing Chain - 4-Stroke

VTKTC24456A Piston Diameter 77.95

VTKTC24456B Piston Diameter 77.96

VTKTC24456C Piston Diameter 77.97

INDICATE YOUR MODEL WHEN ORDERING

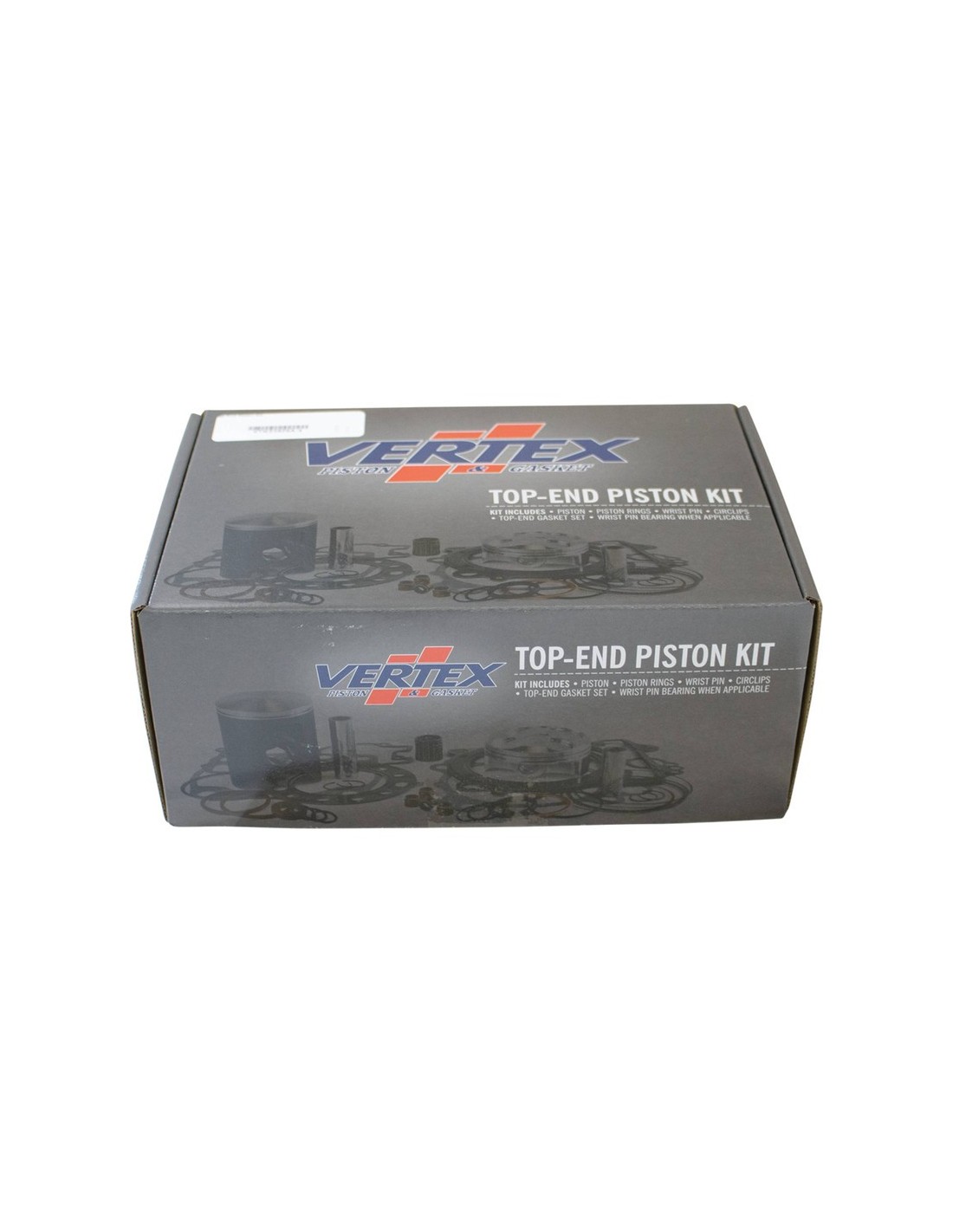

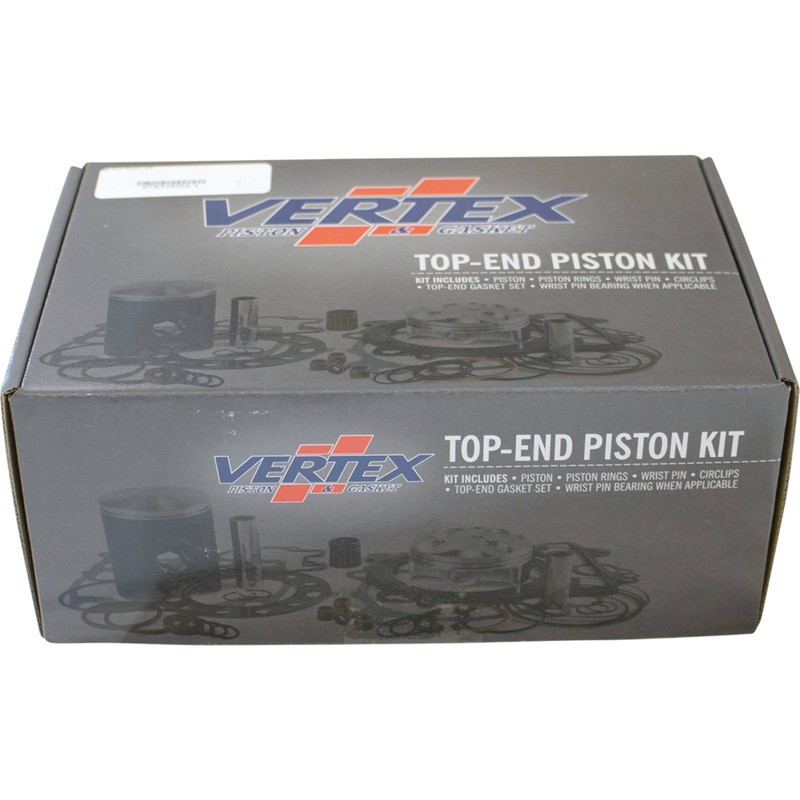

The Vertex top-end piston kit provides everything needed for top-end engine rebuilds, eliminating the hassle of sourcing separate components. The kit includes a Vertex piston, piston rings, gudgeon pin, circlips, and a top-end gasket kit. A pistons are used with the standard cylinder bore to maximize power and performance in 4-stroke applications. A Hot Cams timing chain is included.

Vertex Pistons: Vertex pistons are forged from a 2618 aluminum alloy containing copper and magnesium. This forging withstands higher temperatures and improves strength and durability, maximizing power and performance. It also reduces friction and oil consumption.

Vertex Gasket Kits: The gasket kit contains all the gaskets needed to rebuild the upper engine. The kit includes a cylinder head gasket, cylinder base gasket, and exhaust gasket, as well as the O-rings needed to assemble the cylinder and cylinder head.

Cylinder Bore (mm) 78

Displacement (cc) 250

Piston Bore 77.95
