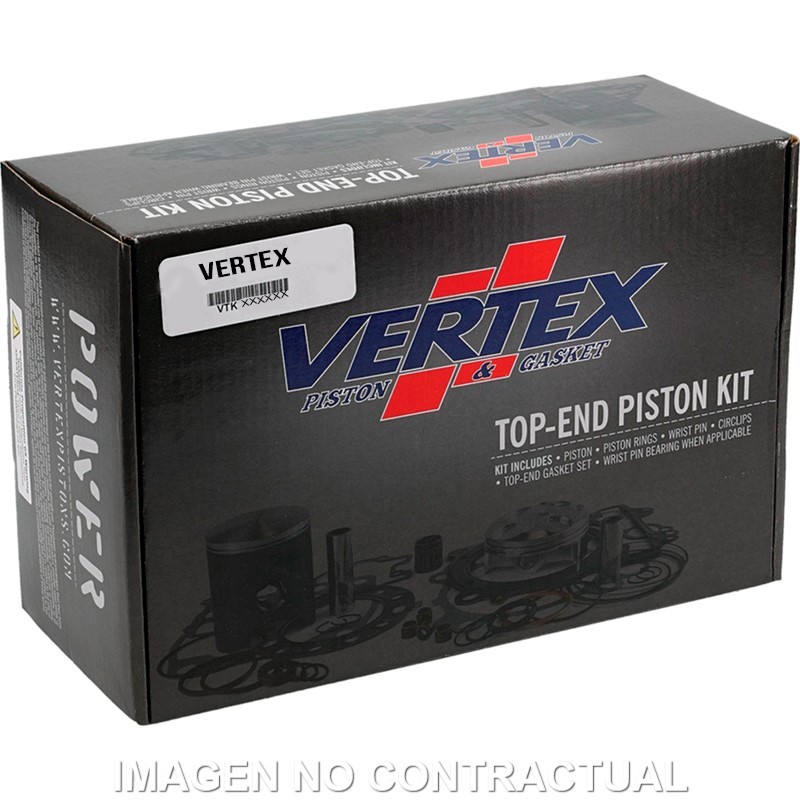

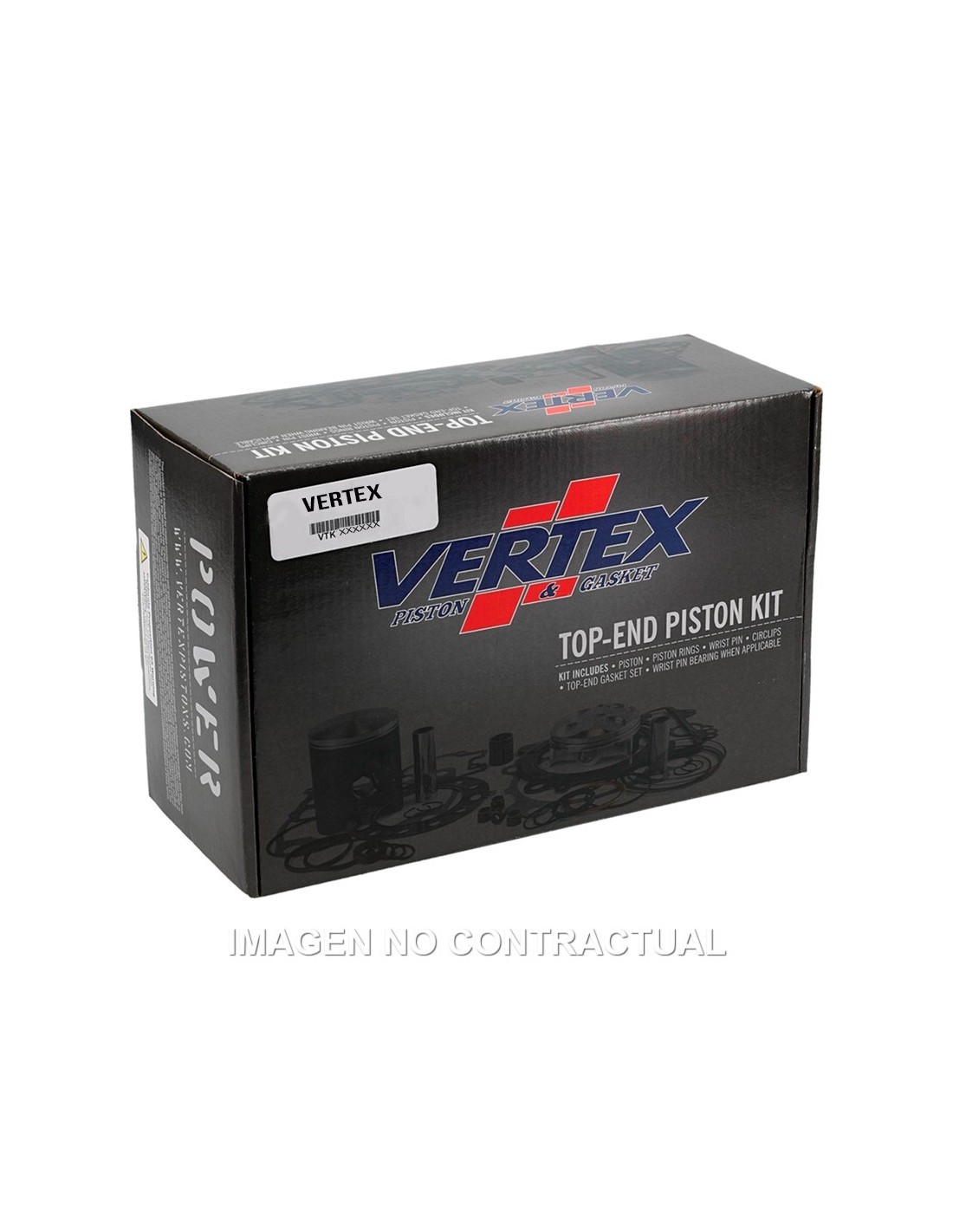

VERTEX A PISTON KITS VTK23119A
Vertex piston kit (A), top end gaskets, and needle cage - 2-stroke
ATTENTION: Vertex 1-ring piston kit.
The Vertex top end piston kit provides everything needed for top end engine rebuilds, eliminating the hassle of sourcing separate components.
Models More information CC Year
Fantic XE Euro5 125 125 21/21
Fantic XX Euro5 125 125 21/21
Yamaha YZ 125 125 05/20
VERTEX A PISTON KITS VTK23119A
Vertex piston kit (A), top end gaskets, and needle cage - 2-stroke
ATTENTION: Vertex 1-ring piston kit.
The Vertex top end piston kit provides everything needed for top end engine rebuilds, eliminating the hassle of sourcing separate components.
Models More information CC Year
Fantic XE Euro5 125 125 21/21
Fantic XX Euro5 125 125 21/21
Yamaha YZ 125 125 05/20
The kit includes a Vertex piston, 1 ring, needle cage, gudgeon pin, circlips, and a top end gasket kit. Piston A utilizes the standard cylinder bore to maximize power and performance. Vertex Pistons: Vertex pistons are forged from a 2618 aluminum alloy containing copper and magnesium. This forging withstands higher temperatures and improves strength and durability, maximizing power and performance. It also reduces friction.
Vertex Gasket Kits: The gasket kit contains all the gaskets needed to rebuild the upper engine. The kit includes a cylinder head gasket, cylinder base gasket, and exhaust gasket, as well as the O-rings needed to assemble the cylinder and cylinder head.
Cylinder Bore (mm) 54
Displacement (cc) 125
Piston Bore (mm) 53.93
