SENA ACS10-01 BLUETOOTH INTERCOM
SENA COMMUNICATION FOR ARAI QUANTIC, RX-7V, AND RX-7V EVO
The Sena ACS10 is a Bluetooth communication system specifically designed for the Arai QUANTIC, RX-7V, RX-7V EVO, and TOUR-X5 helmet models.

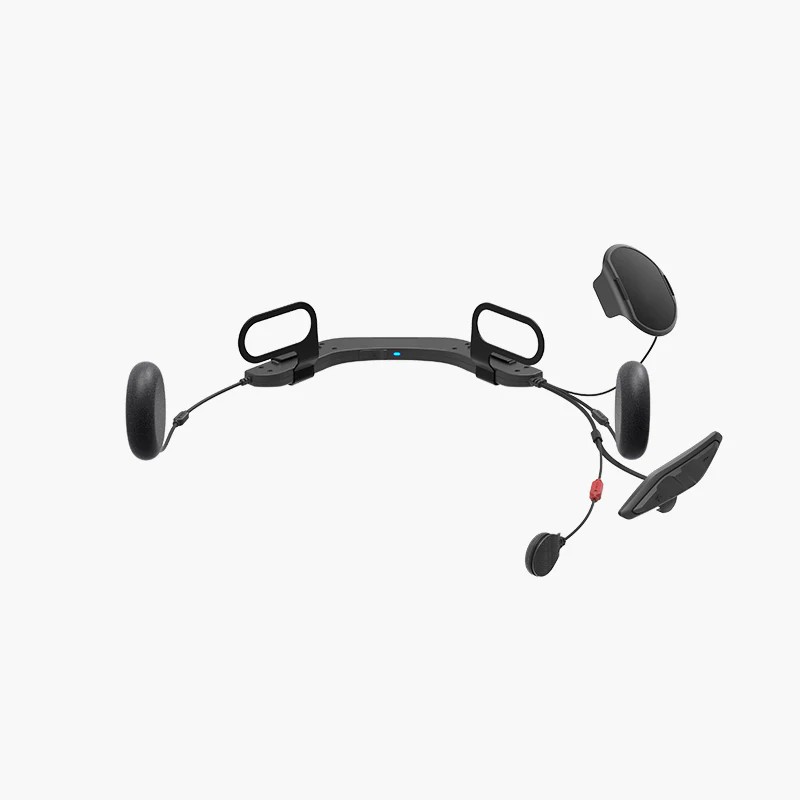

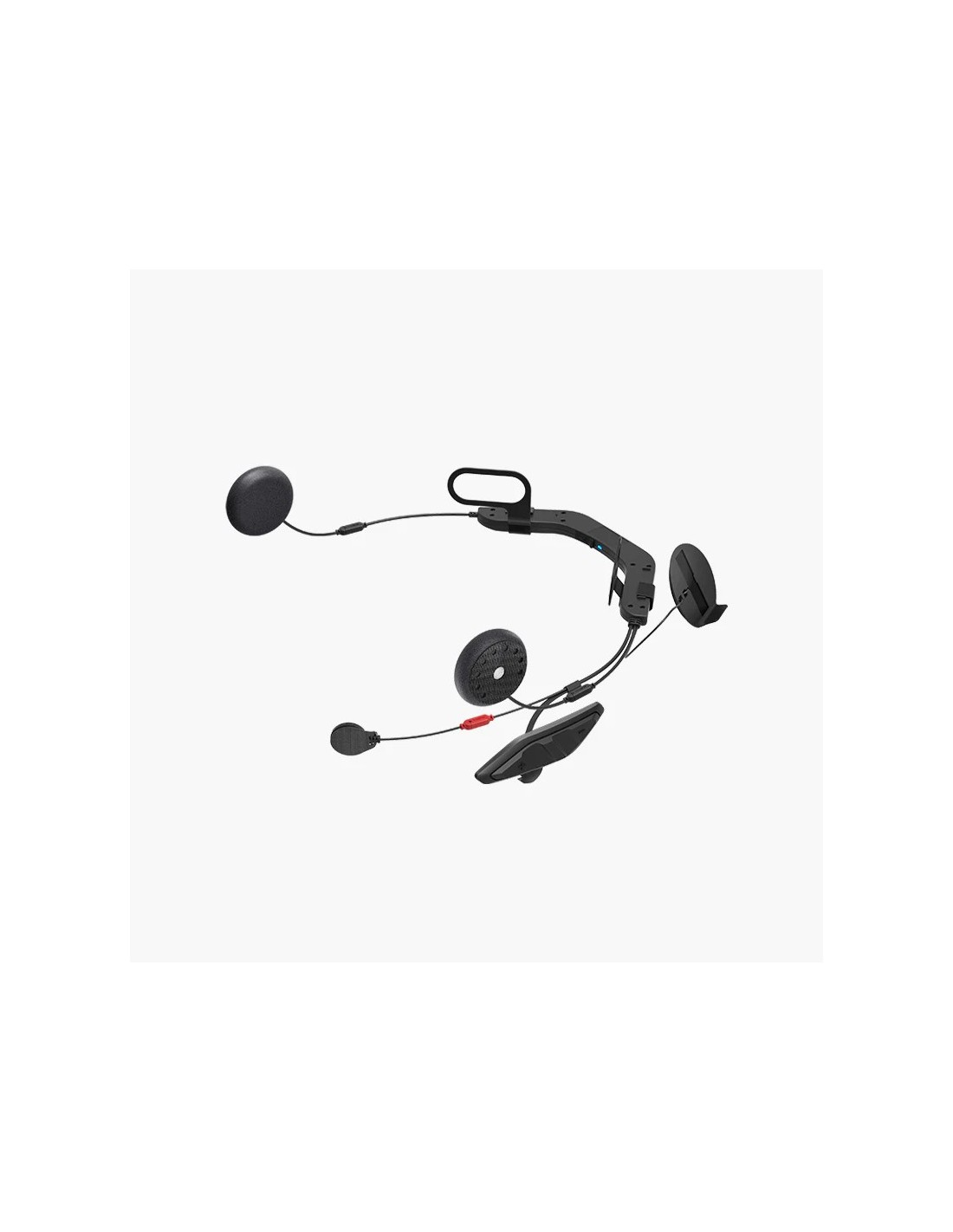

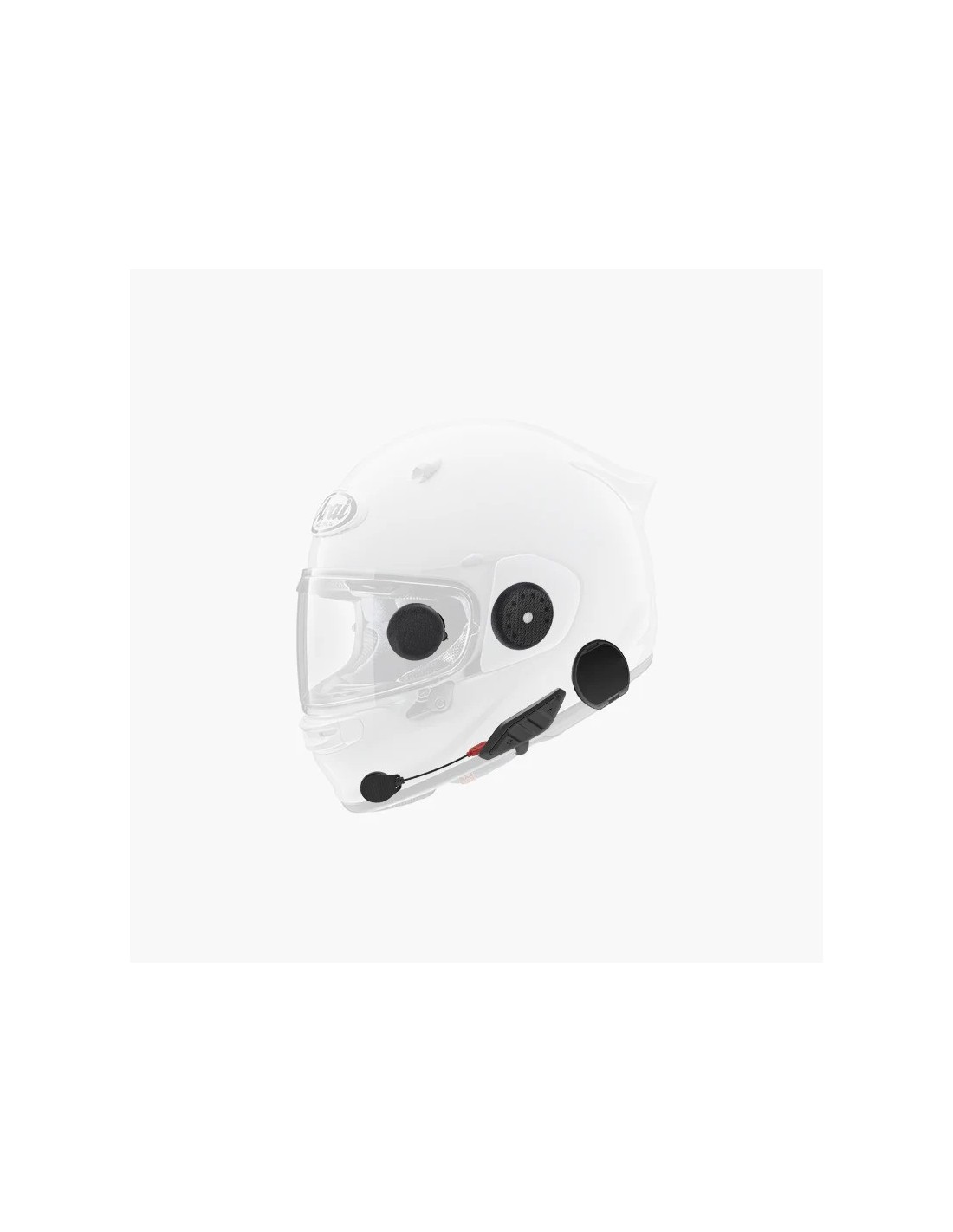

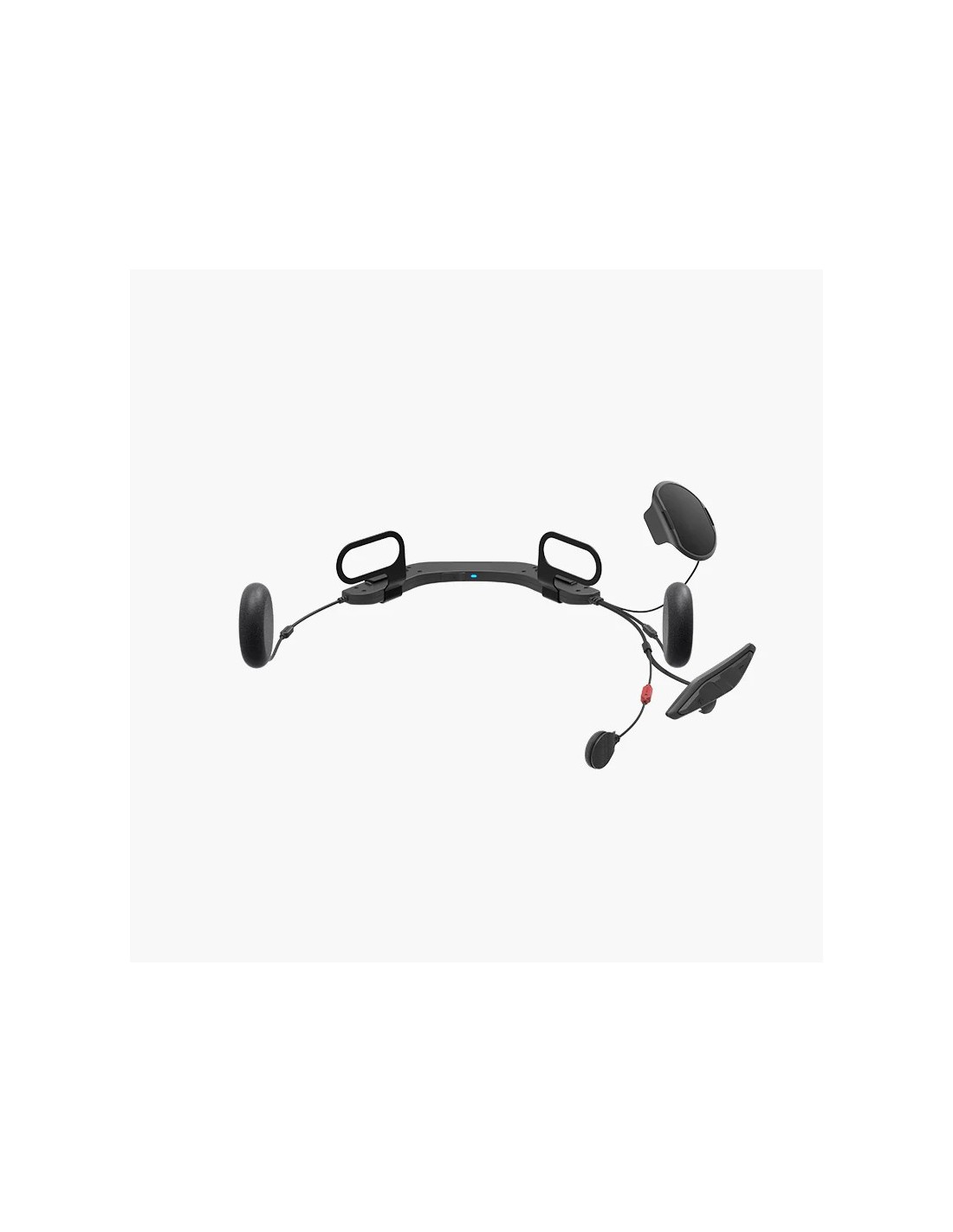

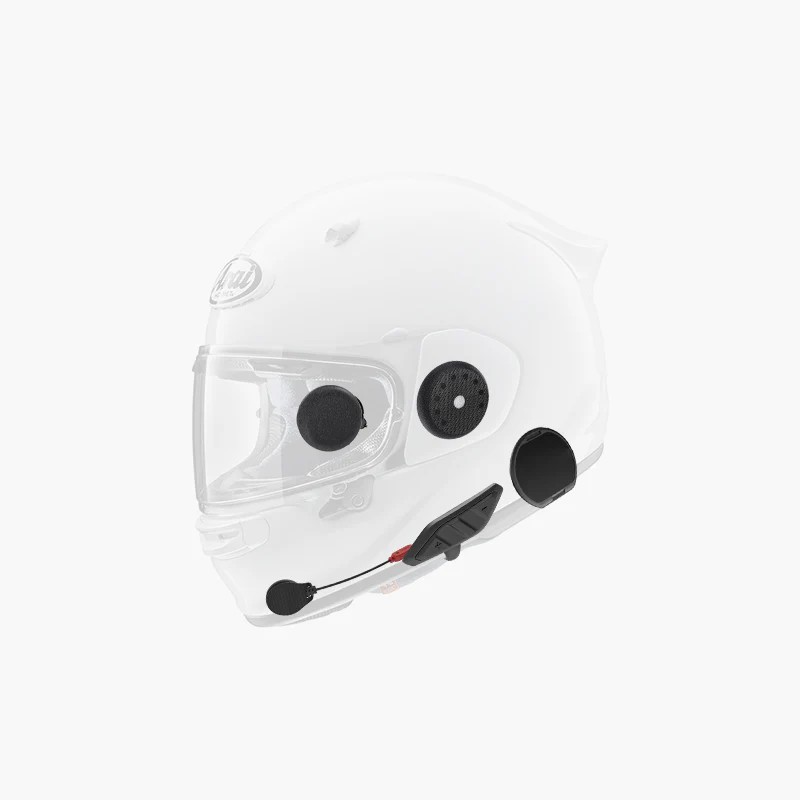

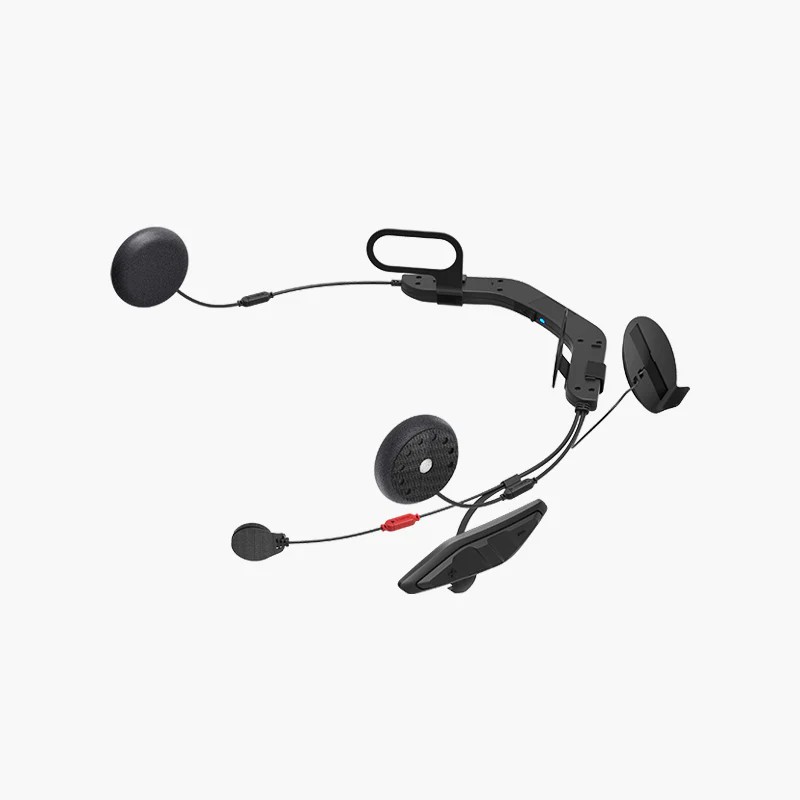

The ACS10 communication device is discreetly mounted on the helmet and consists of HD speakers, a microphone, a three-button interface, and a battery. It is easily installed on the QUANTIC, RX-7V, and RX-7V EVO models, as it has been designed to fit into the pre-designed spaces inside the helmet and provide a perfect fit.
SENA ACS10-01 BLUETOOTH INTERCOM
SENA COMMUNICATION FOR ARAI QUANTIC, RX-7V, AND RX-7V EVO
The Sena ACS10 is a Bluetooth communication system specifically designed for the Arai QUANTIC, RX-7V, RX-7V EVO, and TOUR-X5 helmet models.
The ACS10 communication device is discreetly mounted on the helmet and consists of HD speakers, a microphone, a three-button interface, and a battery. It is easily installed on the QUANTIC, RX-7V, and RX-7V EVO models, as it has been designed to fit into the pre-designed spaces inside the helmet and provide a perfect fit.
Important: Update the device's firmware before first use.
HD SOUND FOR YOUR RIDE
The ACS10 delivers high-quality audio with Sena's exceptional HD speakers. The HD speakers deliver dramatic bass boosts and audio clarity for music, intercom conversations, phone calls, and more. The ACS10 also features Sena's Advanced Noise Control technology, which filters out wind and white noise for consistently clear sound.
BLUETOOTH INTERCOM PLUS AUDIO MULTITASKING
The ACS10 features a four-way Bluetooth intercom with a range of up to 1.6 km. Riders can also connect their smartphone to hear GPS directions, play music, or answer a call—all directly from their Arai QUANTIC, RX-7V, or RX-7V EVO! The ACS10 is equipped with Sena's convenient Audio Multitasking technology, allowing riders to talk through the intercom while simultaneously listening to music, FM radio, or GPS.
ALWAYS CONNECTED WITH THE SENA UTILITY APP
Connect the ACS10 with the Sena Utility app to have all the device's functions at your fingertips. Users can configure settings and access the quick start guide on their smartphone.
SPECIFICATIONS:
HD Speakers
Four-Way Intercom Talk
HD Intercom
1.6 km / 1.0 mile Intercom
Bluetooth 4.1
Smartphone App
Smart Intercom Pairing
Multilingual Voice Prompts
Advanced Noise Control
Upgradable Firmware
GENERAL
Talk Time: 10 hours
Operating Temperature: -10ºC / 55ºC
Charging Temperature: 0ºC / 45ºC
Dimensions
Main Module: 77 mm x 68 mm x 58 mm
Speaker Unit: 40 mm - Thickness 7.2 mm
Wired Microphone: 200 mm long
Inter-Speaker Cable: 100 mm long
Module Weight: 63 g
BLUETOOTH
Bluetooth 4.1
Headset Profile (HSP)
Hands-Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
Audio Video Remote Control Profile (AVRCP)
INTERCOM
Operating distance: up to 1.6 kilometers in open field
Supports up to 4 users
AUDIO
Noise cancellation: Advanced Noise Control
Codec: Built-in SBC codec
HD Voice for high-quality audio calls
BATTERY
Talk time: 10 hours
Charging time: 2.5 hours
2 built-in 300 mAh lithium-polymer batteries
CERTIFICATES
CE, FCC, IC, UKCA
