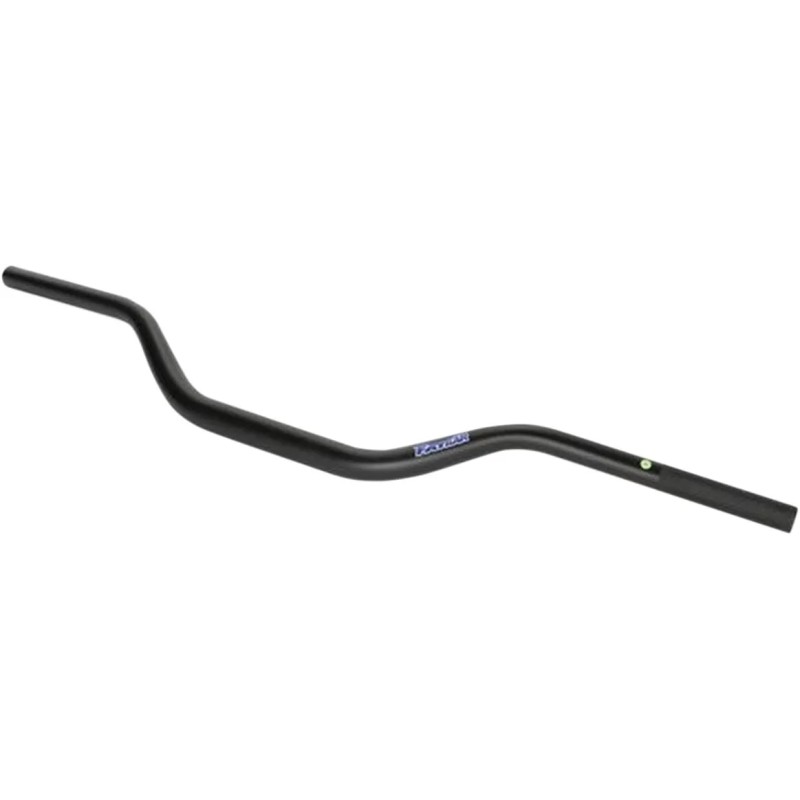

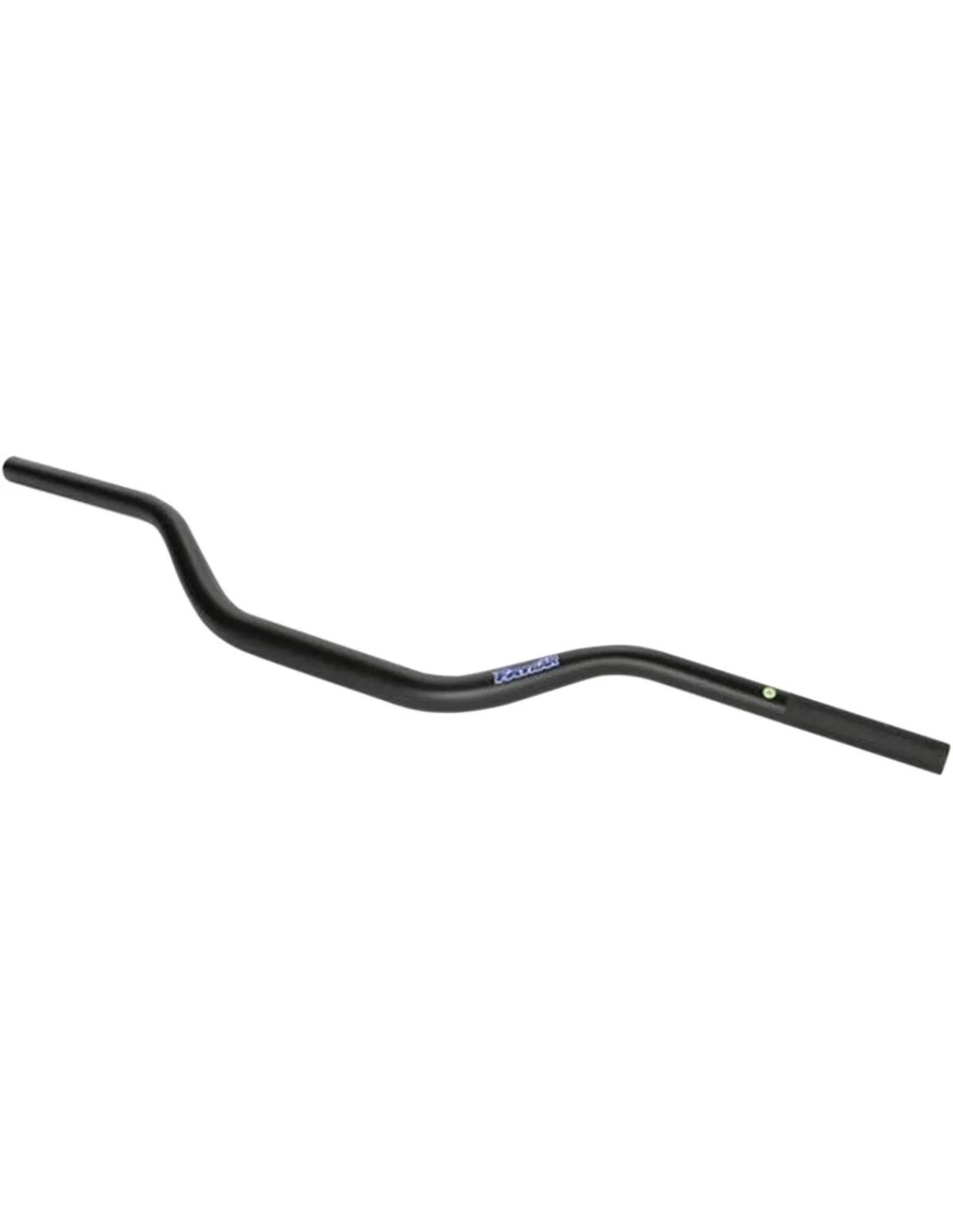

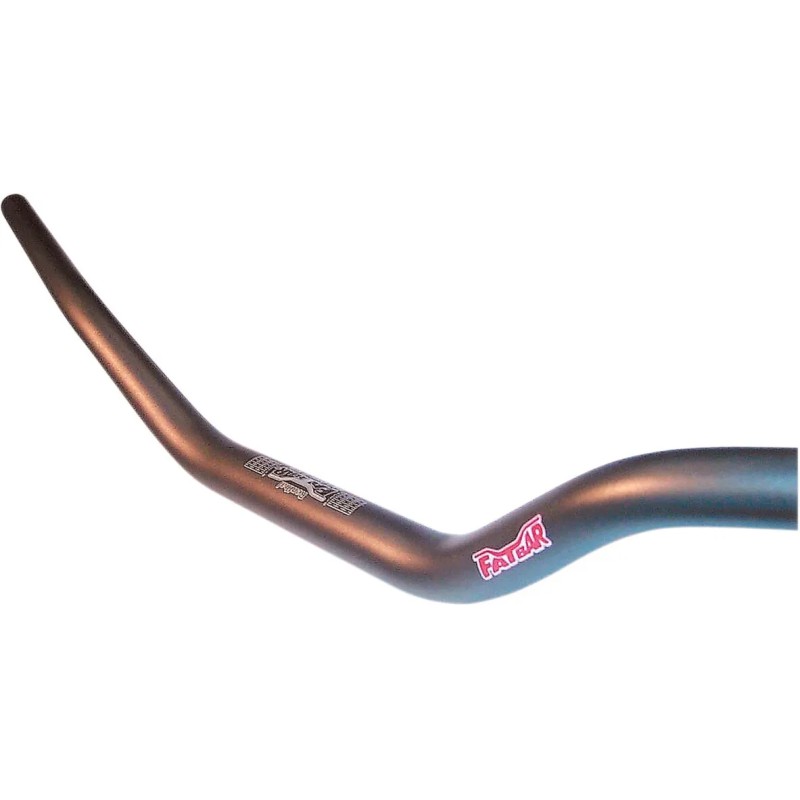

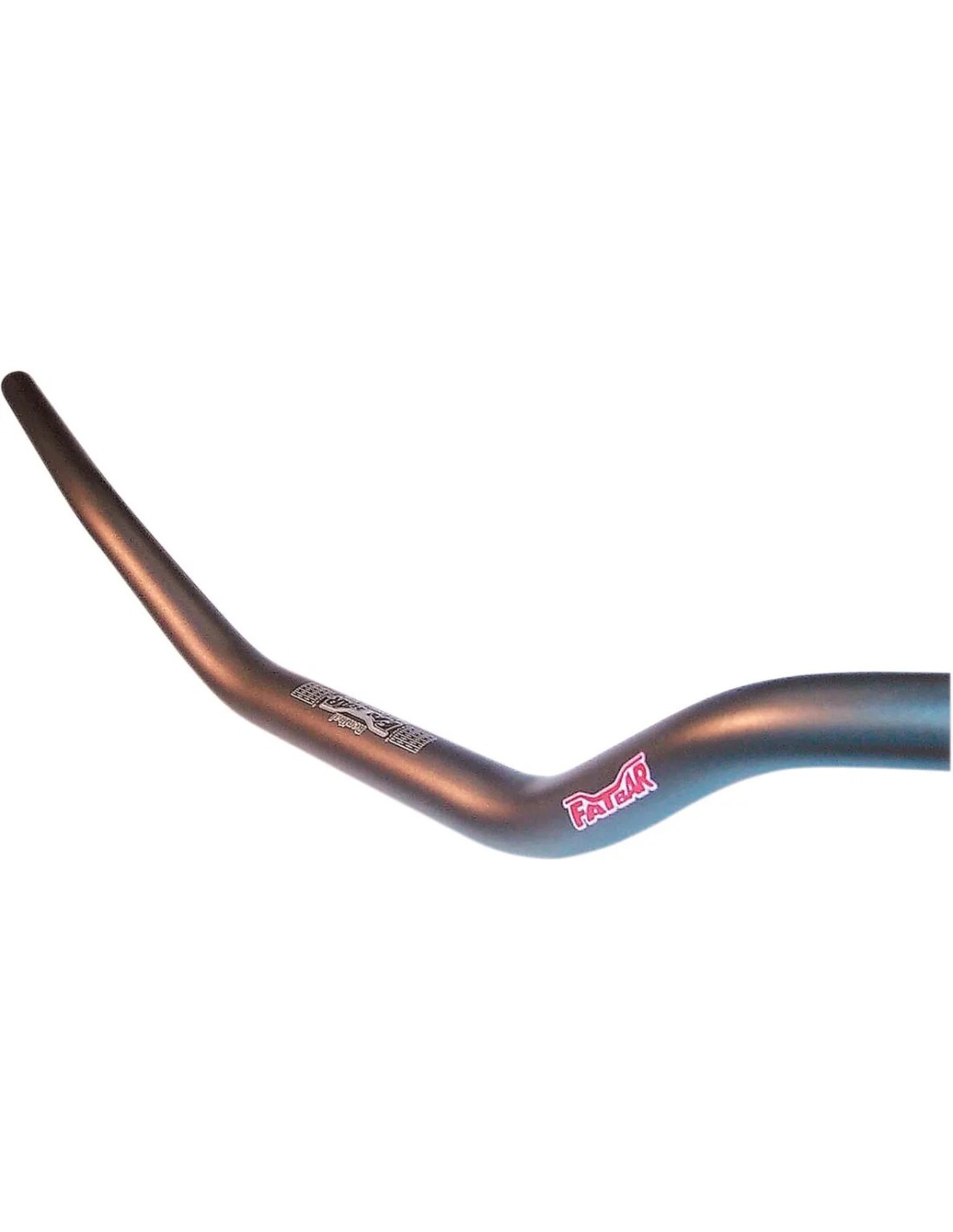

RENTHAL FATBAR 603 REED / WINDHAM 603-01 HANDLEBAR
Product Description
The tapered profile of its outer wall gives the clamp a larger diameter (28.6 mm) and narrows at the ends (22.2 mm). Furthermore, the Fatbar's stay-less design combines strength with flexibility.
KTM and Suzuki have chosen the Renthal Fatbar as the ultimate in stay-less handlebars, and install it as original equipment when they prefer this design.
RENTHAL FATBAR 603 REED / WINDHAM 603-01 HANDLEBAR
Product Description
The tapered profile of its outer wall gives the clamp a larger diameter (28.6 mm) and narrows at the ends (22.2 mm). Furthermore, the Fatbar's stay-less design combines strength with flexibility.
KTM and Suzuki have chosen the Renthal Fatbar as the ultimate in stay-less handlebars, and install it as original equipment when they prefer this design.
7010 Aluminum
Chrome Finish
Positioning Rack
Fatbar Handlebar Sponge Included
Brand
RENTHAL
Supplier Reference
603-01-TT
Finish
Anodized
Height
98 mm (3-7/8")
Width
80 cm (31-1/2")
Mounting Area Width
100 mm (4")
Features
Smooth, Unknurled
Mounting Area Diameter
28.6 mm (1-1/8")
Control Area Diameter
22 mm (7/8")
Handlebar Diameter
28.6 mm (1-1/8")
Rise
74 mm (2-15/16")
Style
Universal
Material
7010-T6 Aluminum
Product Name
Handlebar
Recess
55 mm (2-3/16")
Type/Bend
McGrath Fatbar
Units
Unit
