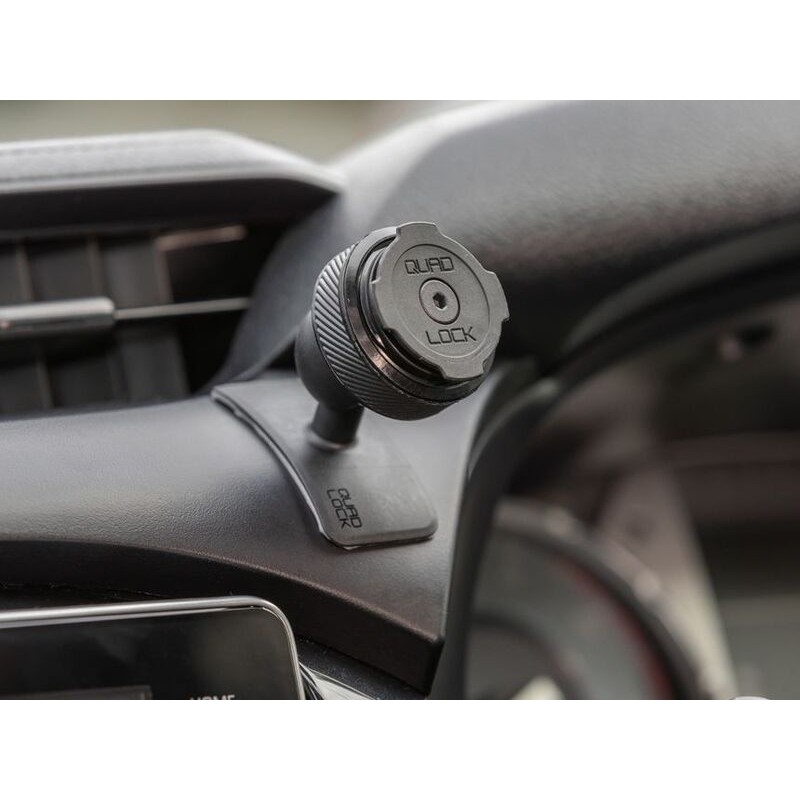

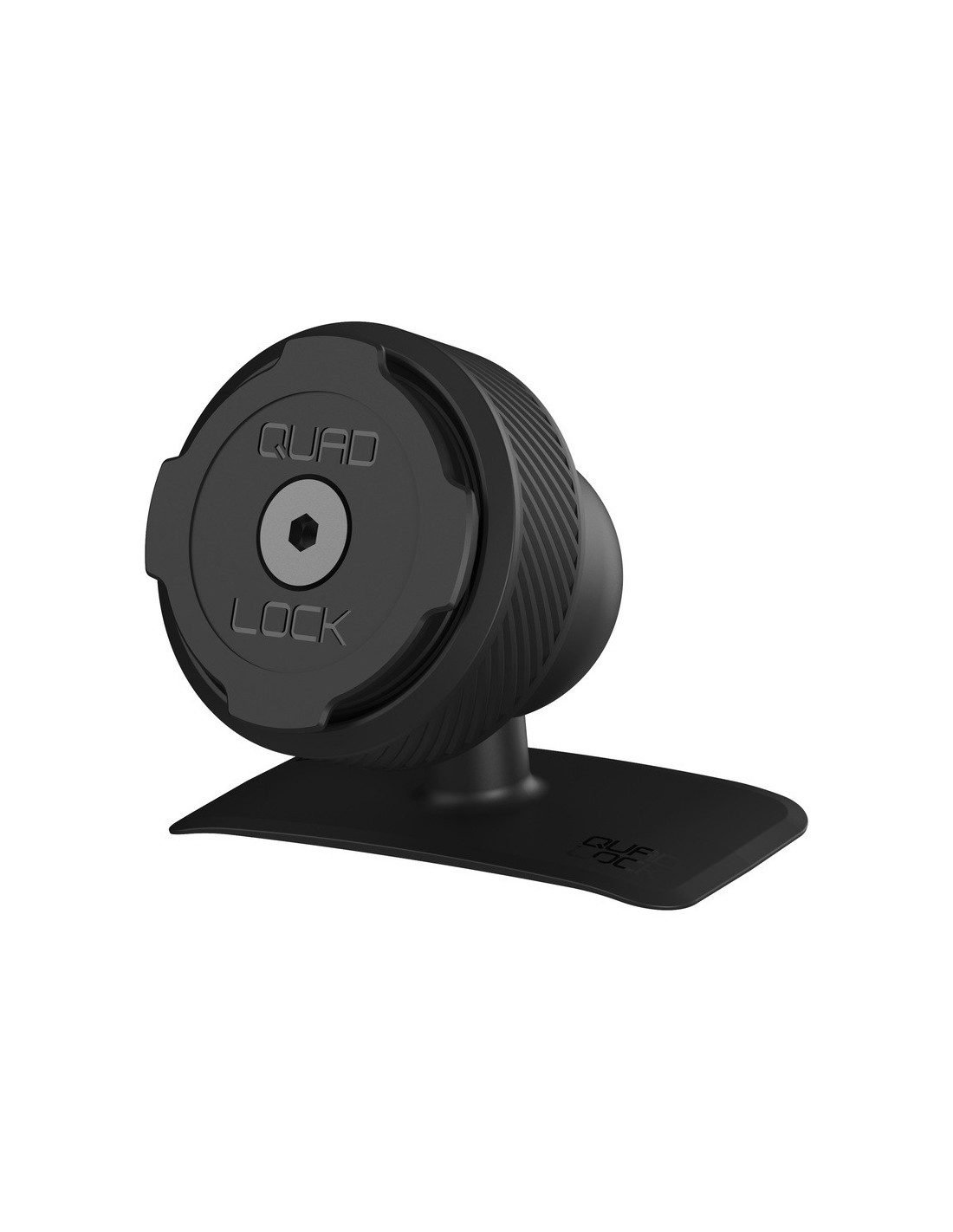

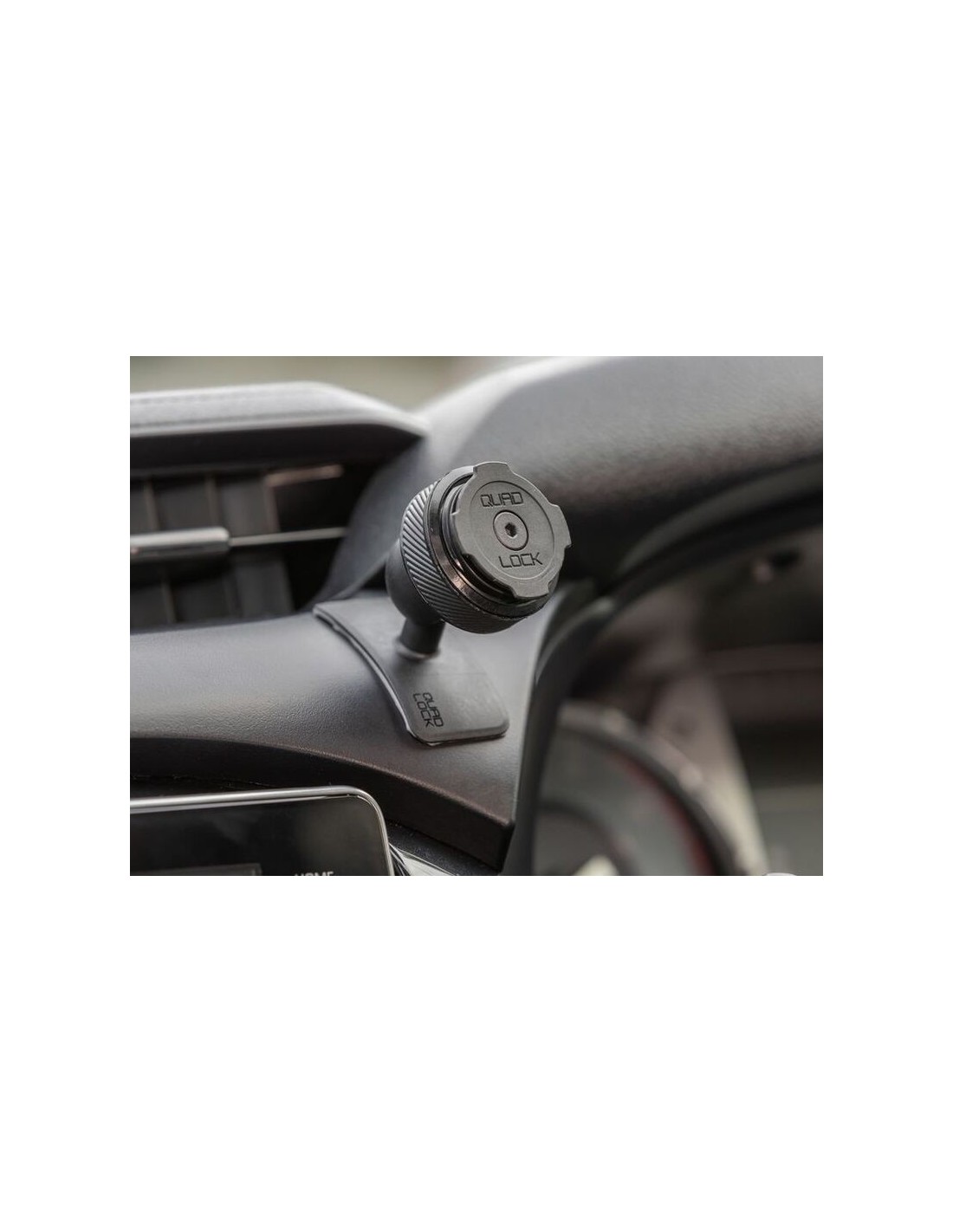

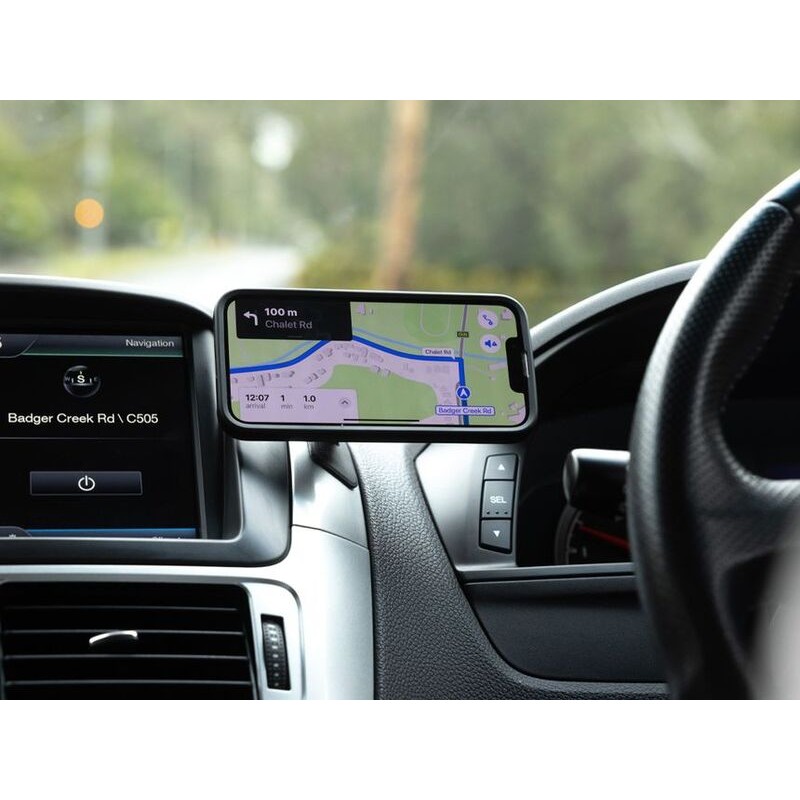

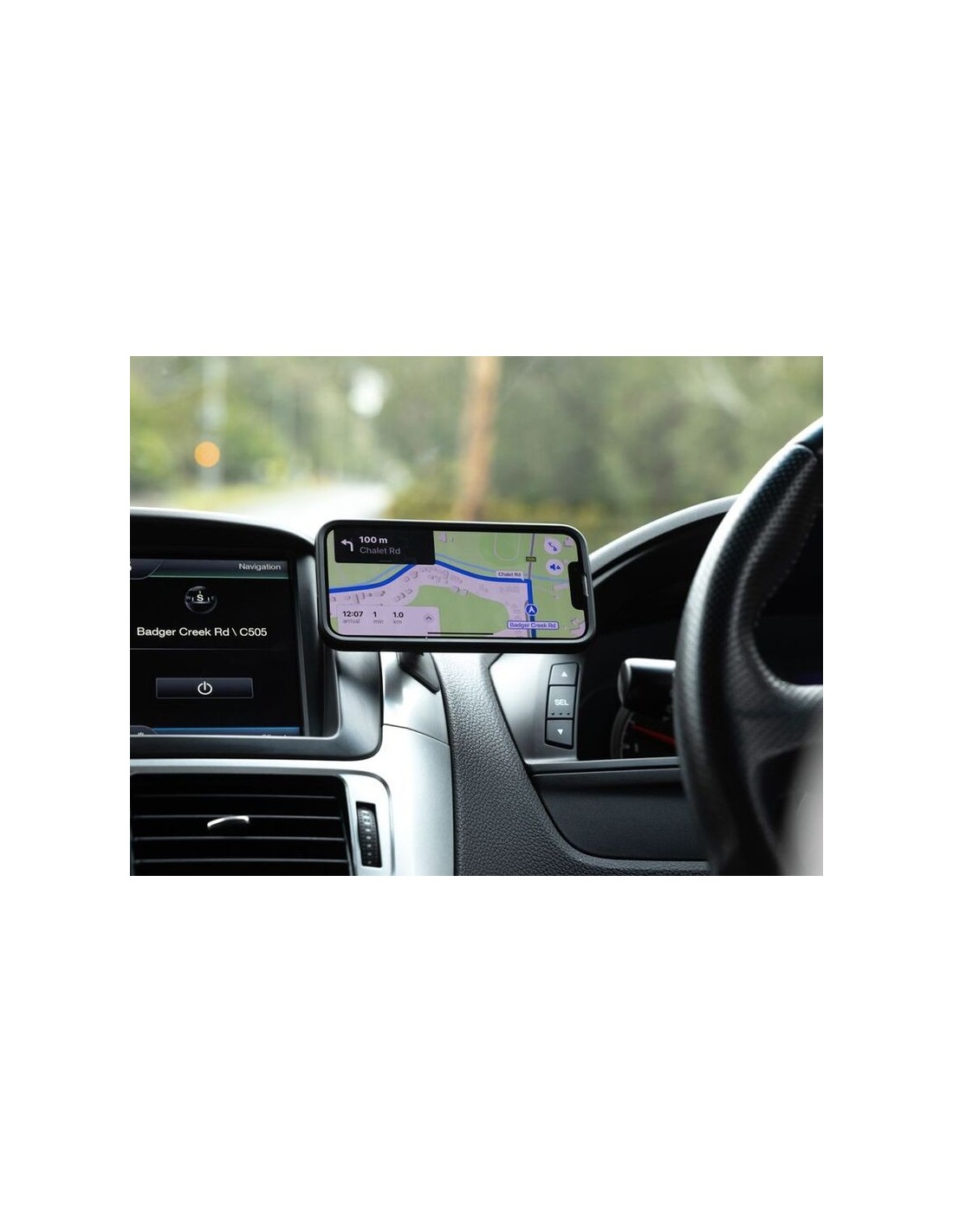

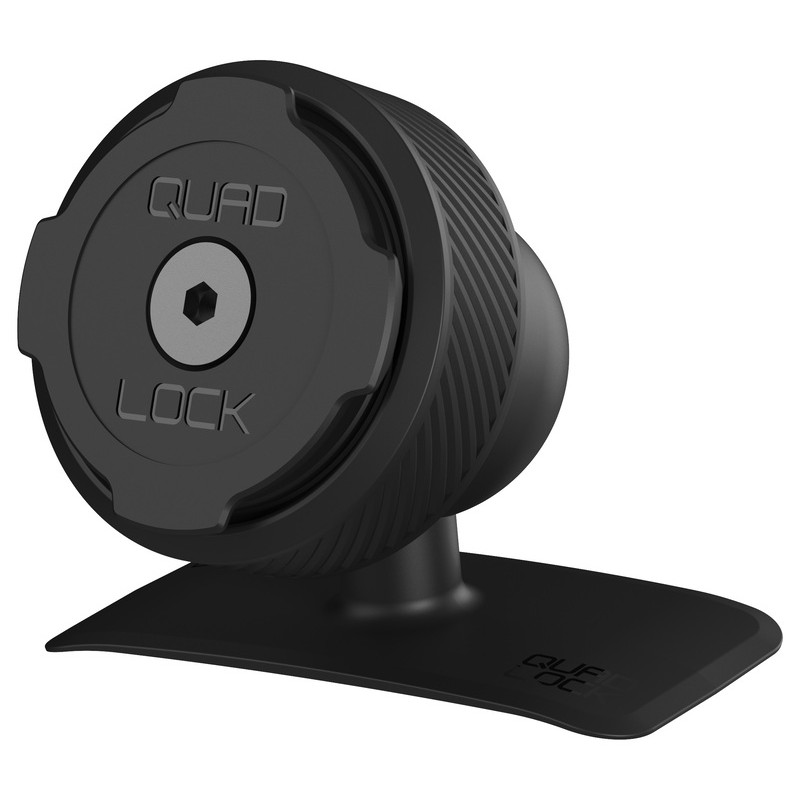

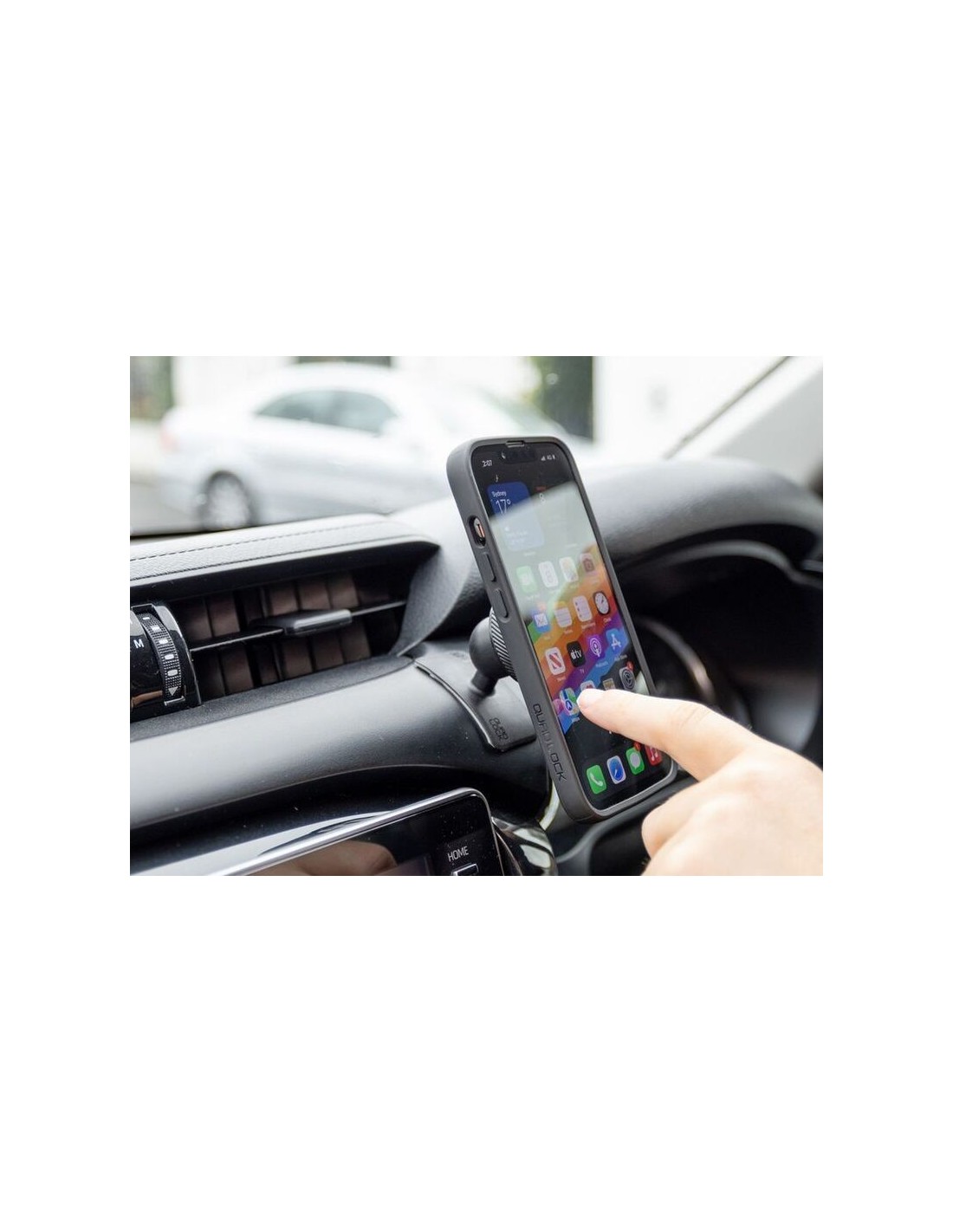

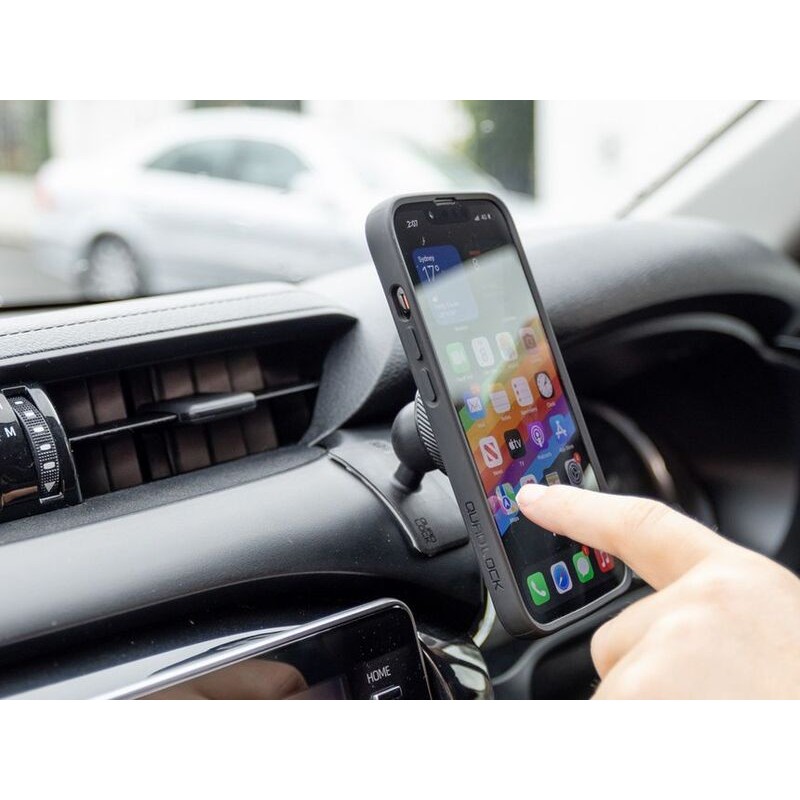

QUAD LOCK MAG Dashboard Smartphone Mount

Suitable for use with all Quad Lock cases, the Quad Lock Adhesive Dashboard Mount offers a versatile mounting solution with its slim adhesive base and swivel head.

SECURE MOUNTING

Thanks to 3M VHB adhesive and a flexible base, the mount can adhere to flat or slightly curved surfaces.

ADJUSTABLE VIEWING ANGLE

The unique swivel joint allows 180º rotation of the head on the Z-axis and 360º rotation around the base. Mounting your phone in the optimal viewing position is simple.

CLEAN DESIGN

The slim-profile base and black material blend seamlessly into your vehicle's surroundings.

Includes:

1 x Quad Lock Adhesive Dashboard/Console Car Mount

1 x Quad Lock 360 Top Cap

1 x Replacement 3M VHB Adhesive Pad

1 x Alcohol Wipe

Technical Specifications:

Made of nylon

TPU bead overmolding

3M VHB adhesive

Compatible with all Quad Lock Universal Cases and Adapters.

Compatible with the Quad Lock Wireless Charging Head.

Compatible with all Quad Lock MAG heads.

Surface Guide

The Quad Lock Dash/Console Adhesive Mount uses 3M VHB 5611 adhesive that adheres to smooth, non-textured, non-porous surfaces such as:

Plastics such as PC, ABS, PVC, nylon, or acrylic (e.g., vehicle dashboard or console).

Uncoated glass (e.g., windshields)

Metals

Fiberglass

The adhesive does not adhere to the following substrates:

Rubber, TPU, TPE

Leather

Silicone

Soft-touch coating or paint

Low surface energy plastics such as polypropylene (PP), polyethylene (PE), acetal, and HDPE.

Application Temperature:

The ideal application temperature is between 21ºC (70ºF) and 38ºC (100ºF).

Bonding the substrate is not recommended at temperatures below 10ºC (50ºF).

Please ensure the substrate is completely clean and dry before applying the dash/console substrate.

3M VHB adhesive is for single use only and cannot be re-applied.

The dash/console mount is not recommended for use on motorcycles, scooters, ATVs, or other high-frequency engine vibration applications.

Phone case type

MAG

Use

Car
