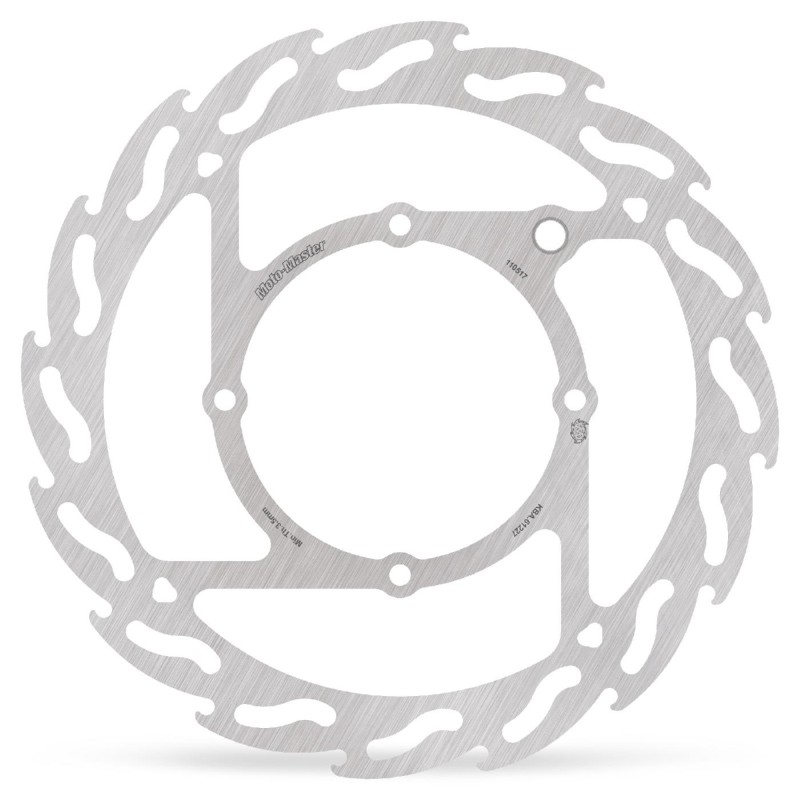

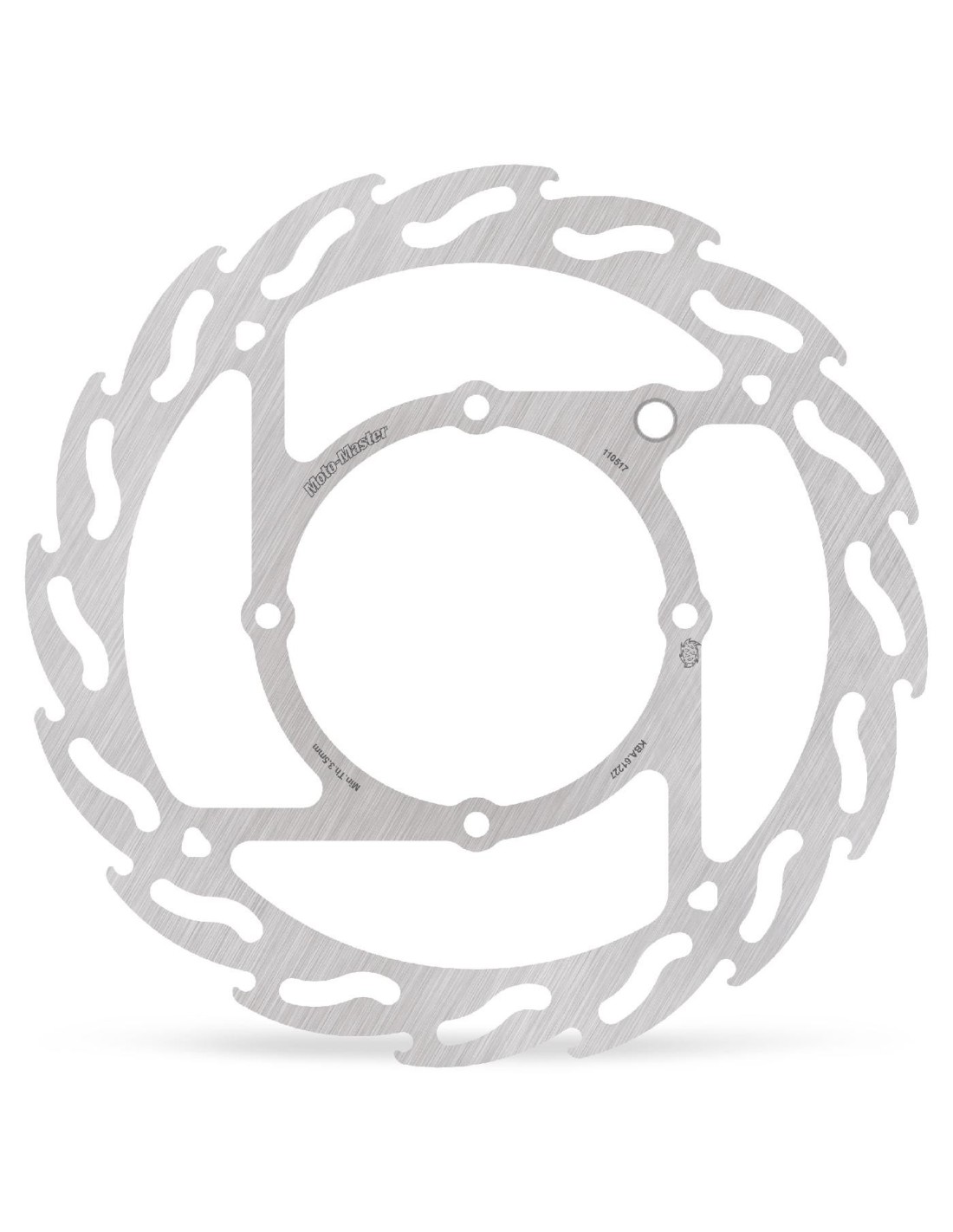

MOTO MASTER FLAME FIXED BRAKE DISC 110517
Flame Series Fixed Discs - Front/Rear
Moto-Master Flame fixed discs are manufactured to the strictest tolerances and specifications using specially hardened premium stainless steel. However, we take performance to the next level by integrating our FLAME design into the disc.
The FLAME design facilitates cooling and cleaning of the contact surface.
Flame fixed discs are laser-cut, CNC-machined, and double-precision ground for perfect fit and flatness.
For optimal performance, we recommend using Moto-Master brake pads with the pad compound that best suits your riding style.
The most winning design in current Motocross GP racing.
SeriesFlame
Outer diameters240.0mm
Inner diameter95.0mm
Thickness4.0mm
Number of holes4
Hole diameter6.5mm
Pitch110.0mm
TypeFixed Disc
Turning directionLeft Side Mount
Speedometer preparedYes
Applications
Front left fixed Flame series
E-ROCKIT E-Rockit E-Bike 2013
GASGAS MC 85 17/14 2022-2024
GASGAS MC 85 17/14 2025
GASGAS MC 85 19/16 2021-2024
GASGAS MC 85 19/16 2025
HUSQVARNA TC 85 (17/14) 2016-2017
HUSQVARNA TC 85 (17/14) 2018-2020
HUSQVARNA TC 85 (17/14) 2021-2024
HUSQVARNA TC 85 (17/14) 2025
HUSQVARNA TC 85 (19/16) 2014-2017
HUSQVARNA TC 85 (19/16) 2018-2020
HUSQVARNA TC 85 (19/16) 2021-2024
HUSQVARNA TC 85 (19/16) 2025
KTM 85 SX (17/14) 2016-2017
KTM 85 SX (17/14) 2018-2020
KTM 85 SX (17/14) 2021-2024
KTM 85 SX (17/14) 2025
KTM 85 SX (19/16) 2013
KTM 85 SX (19/16) 2014-2017
KTM 85 SX (19/16) 2018-2020
KTM 85 SX (19/16) 2021-2024
KTM 85 SX (19/16) 2025
KTM Freeride E-SX E-Bike 2012-2014
KTM Freeride E-XC E-Bike 2021-2022
