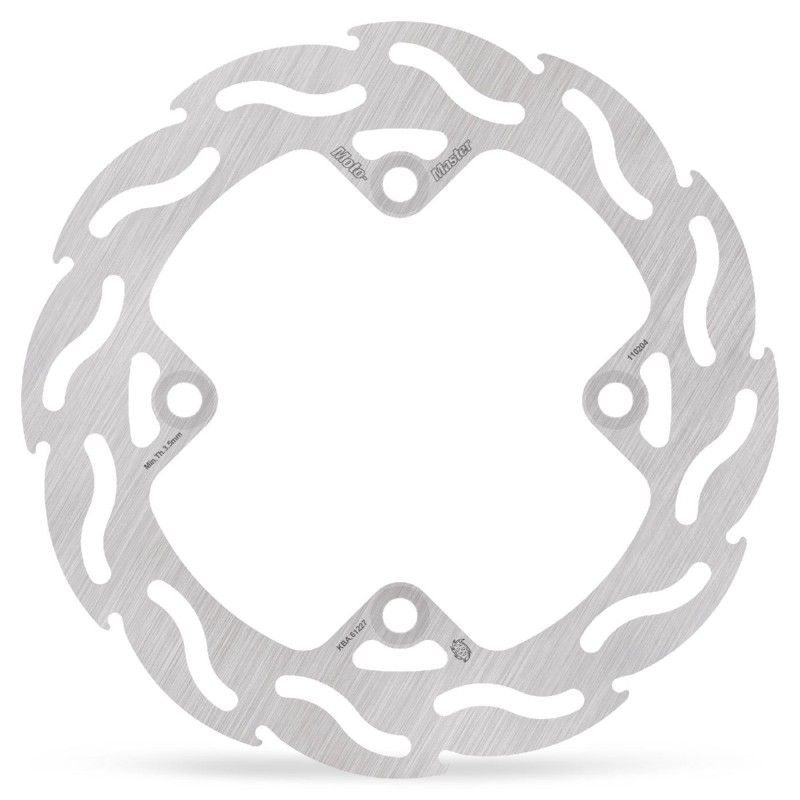

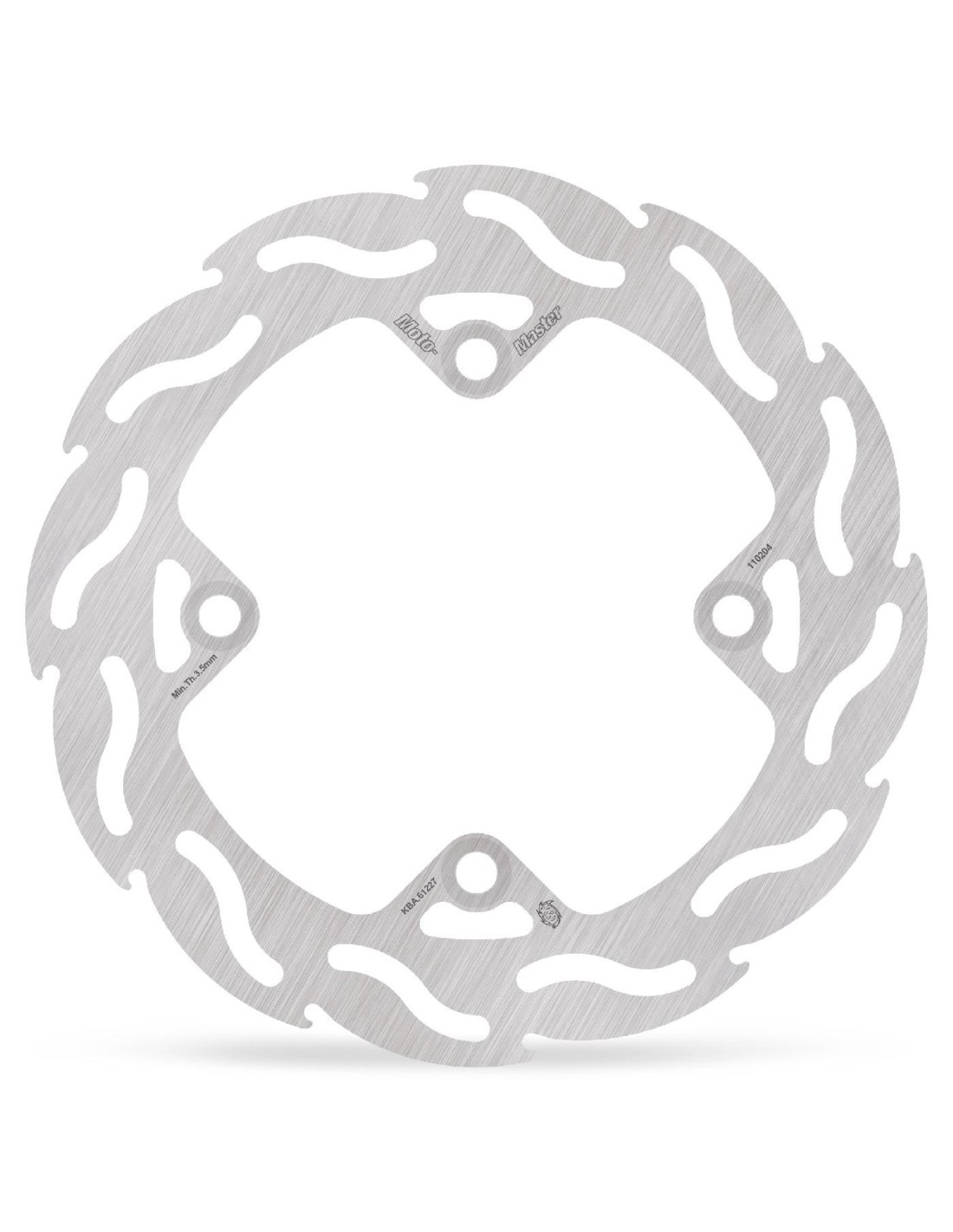

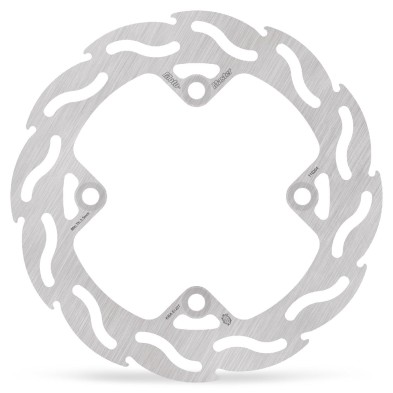

MOTO MASTER FLAME FIXED BRAKE DISC 110204
Flame Series Fixed Discs - Front/Rear
Moto-Master Flame fixed discs are manufactured to the strictest tolerances and specifications using specially hardened premium stainless steel. However, we take performance to the next level by integrating our FLAME design into the disc.
The FLAME design facilitates cooling and cleaning of the contact surface.
Flame fixed discs are laser-cut, CNC-machined, and double-precision ground for perfect fit and flatness.
For optimal performance, we recommend using Moto-Master brake pads with the pad compound that best suits your riding style.
MOTO MASTER FLAME FIXED BRAKE DISC 110204
Flame Series Fixed Discs - Front/Rear
Moto-Master Flame fixed discs are manufactured to the strictest tolerances and specifications using specially hardened premium stainless steel. However, we take performance to the next level by integrating our FLAME design into the disc.
The FLAME design facilitates cooling and cleaning of the contact surface.
Flame fixed discs are laser-cut, CNC-machined, and double-precision ground for perfect fit and flatness.
For optimal performance, we recommend using Moto-Master brake pads with the pad compound that best suits your riding style.
The most winning design in current Motocross GP racing.
SeriesFlame
Outer diameters220.0mm
Inner diameter105.0mm
Thickness4.0mm
Number of holes4
Hole diameter10.5mm
Pitch125.0mm
TypeFixed Disc
Turning directionRight Side Mount
Speedometer preparedNo
Applications
Rear Flame series
HONDA CBR 125 R 2004-2010
HONDA CBR 125 R 2011-2017
HONDA XLV 125 Varadero 2001-2011
HONDA XR 250 2000-2003
HONDA XR 250 Baja 2000-2003
HONDA XR 250 Motard (MD30) 2003-2005
HONDA XR 250 R 1991-1995
HONDA XR 250 R 1996-1997
HONDA XR 250 R 1998-2004
HONDA XR 400 R 1996-2004
HONDA XR 600 R 1991-1992
HONDA XR 600 R 1993-2000
