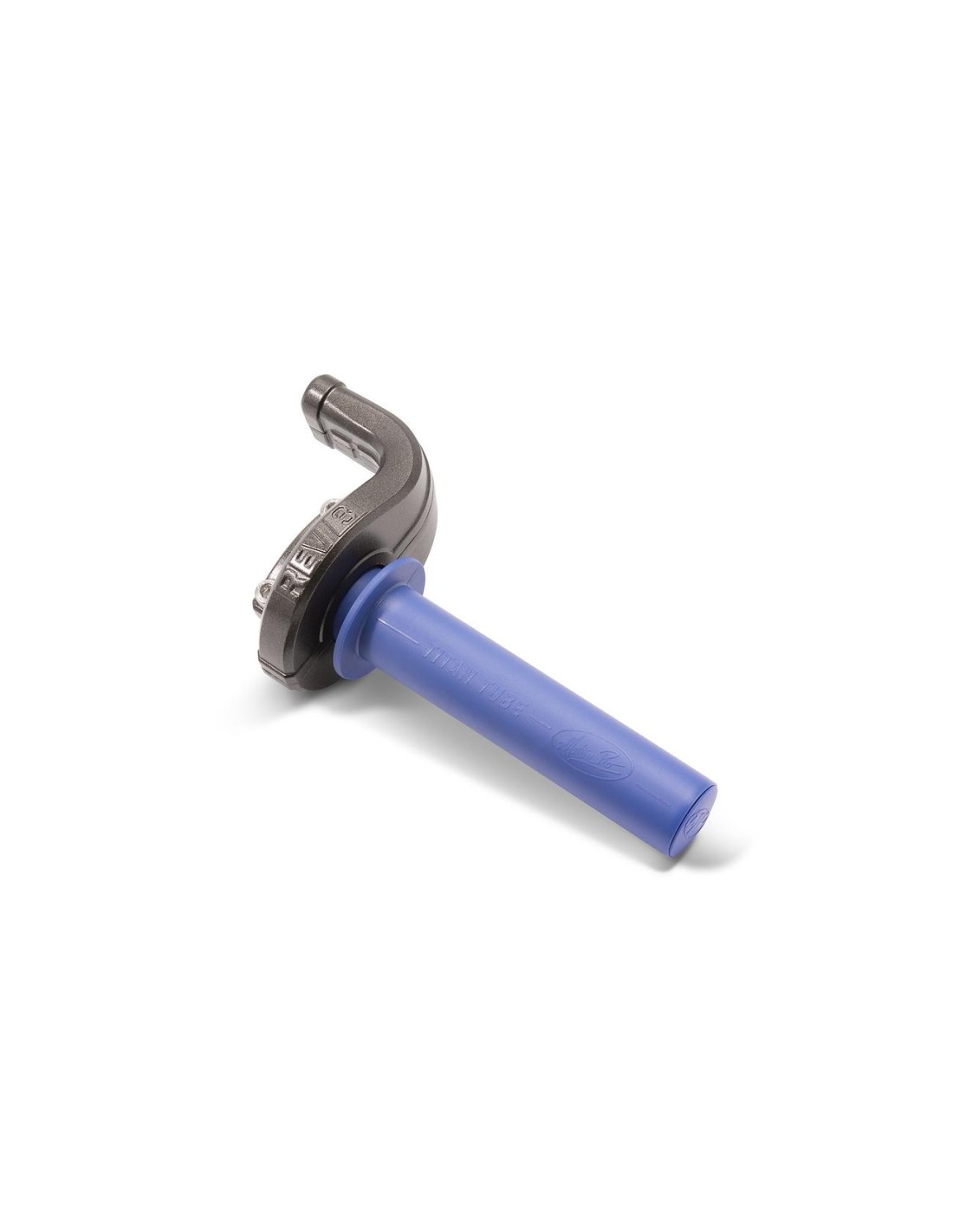

MOTION PRO QUICK GRIP REV3 HUSABERG / HUSQVARNA / KTM 01-2913

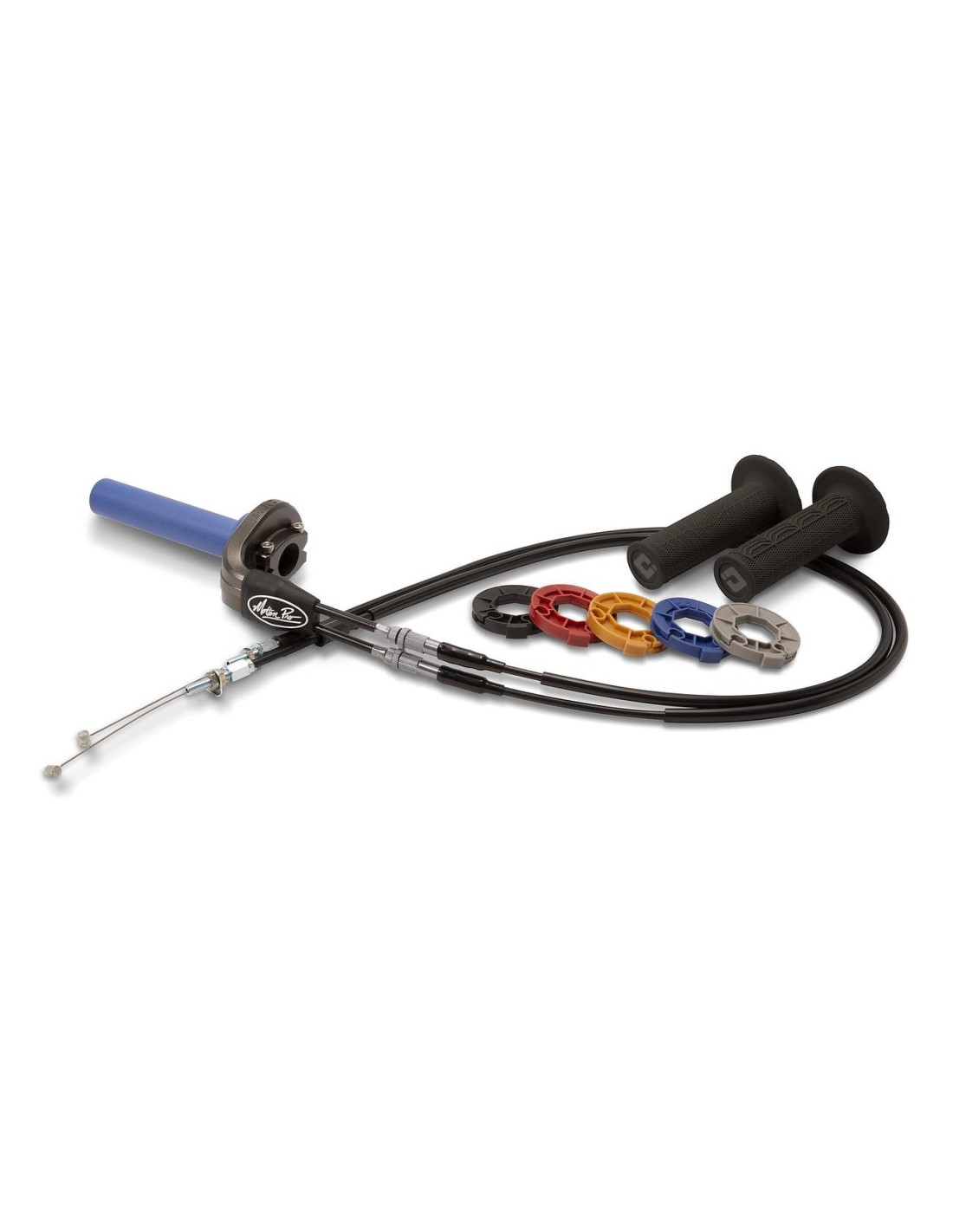

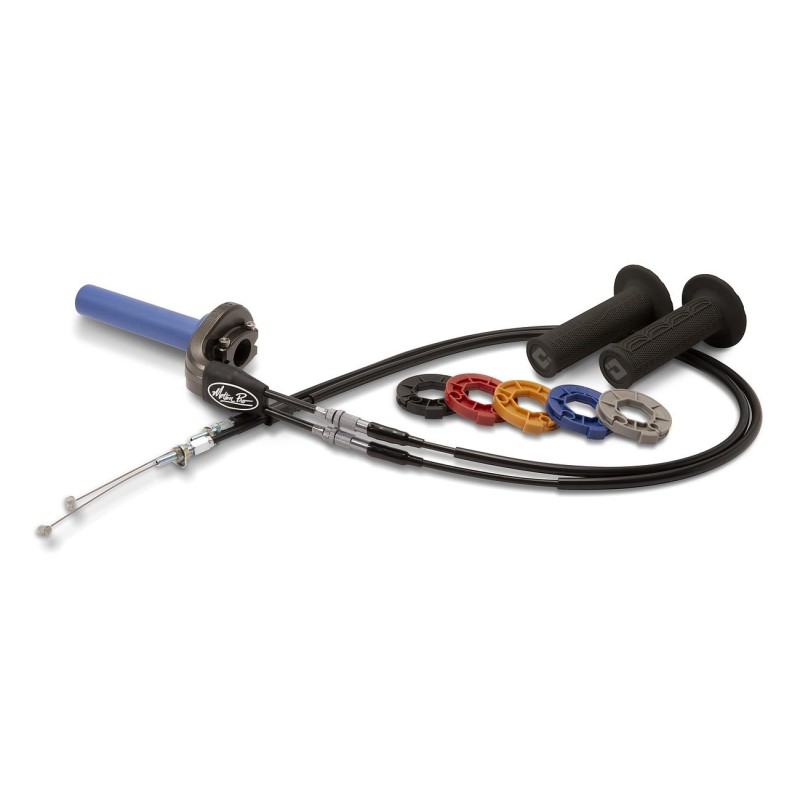

Variable Speed Rev3 Throttle Kit.
Features:

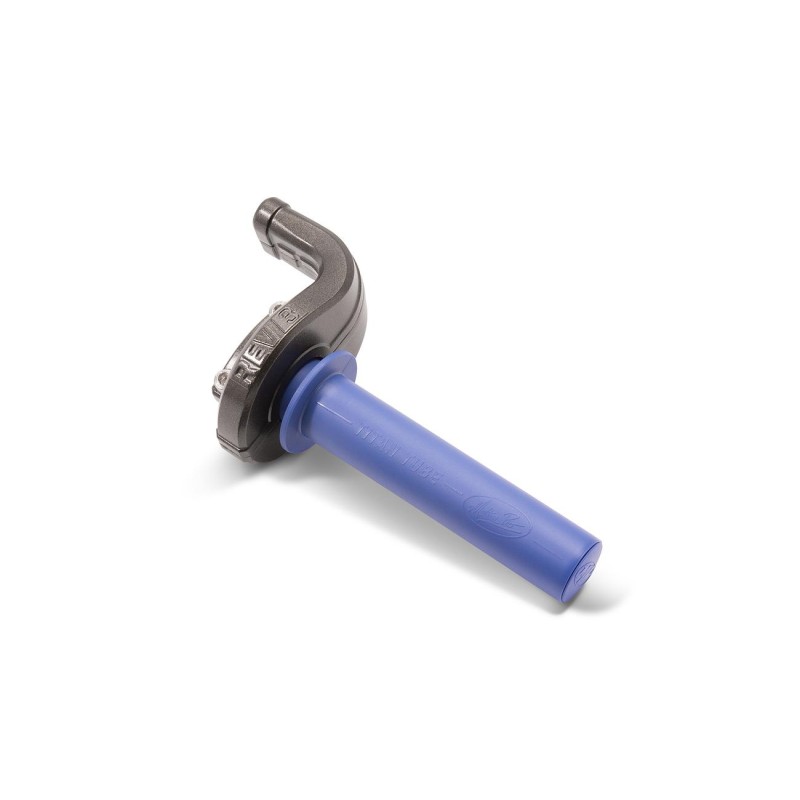

- The slim REV3 throttle housing allows more room for lever play and throttle housing position adjustment.
- The innovative spool-changing system lets you tailor throttle speed to your preferences and riding conditions.
https://www.beracing1.com/img/cms/2021_REV3_Applications_Oct_update.pdf
MOTION PRO QUICK GRIP REV3 HUSABERG / HUSQVARNA / KTM 01-2913
Variable Speed Rev3 Throttle Kit.
Features:
- The slim REV3 throttle housing allows more room for lever play and throttle housing position adjustment.
- The innovative spool-changing system lets you tailor throttle speed to your preferences and riding conditions.
https://www.beracing1.com/img/cms/2021_REV3_Applications_Oct_update.pdf
Features:
- The slim REV3 throttle housing allows more room for lever play and throttle housing position adjustment.
- The innovative spool shift system lets you match the throttle speed to your preferences and riding conditions.
- The cable boot keeps dirt and dust out for smooth, reliable operation.

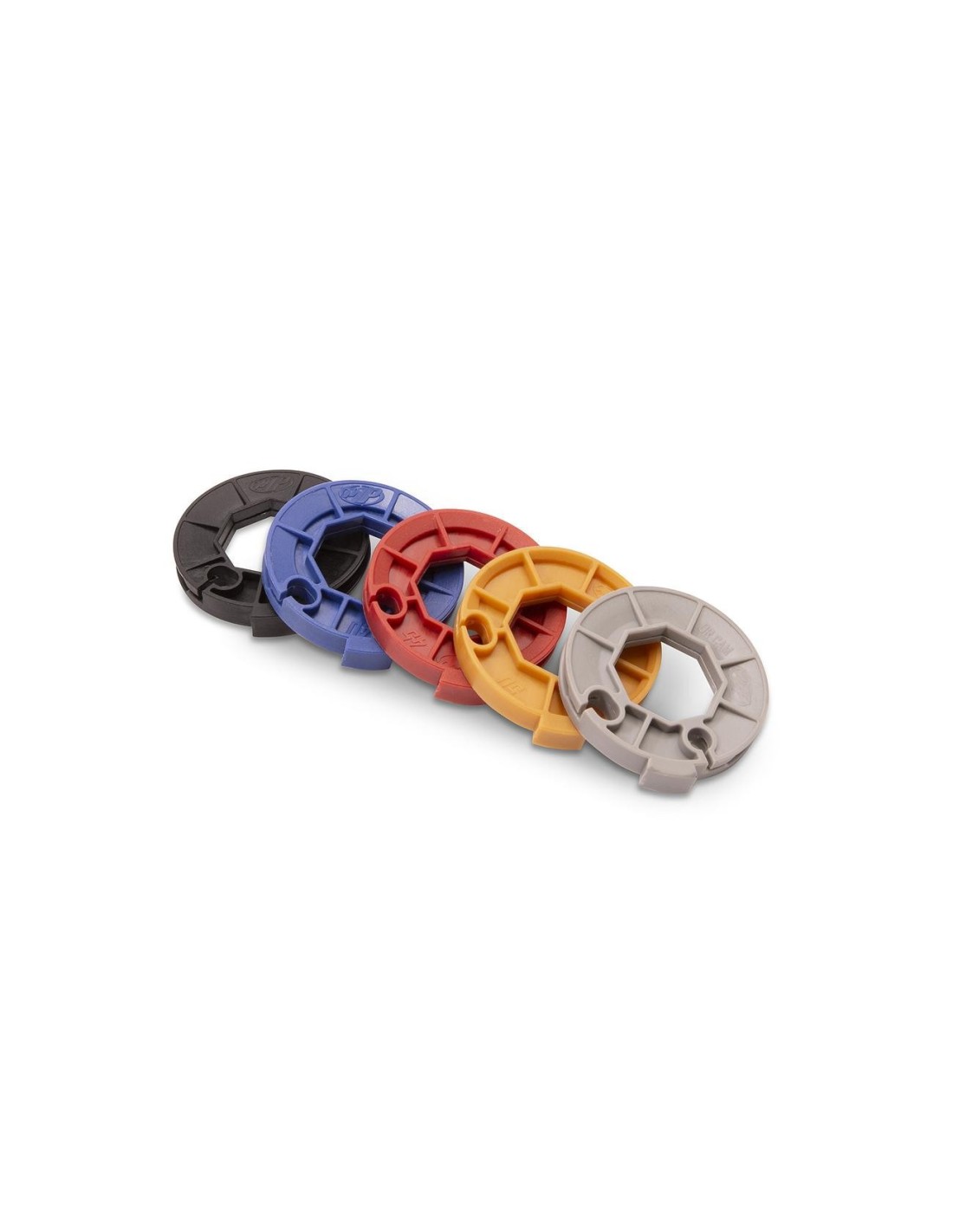

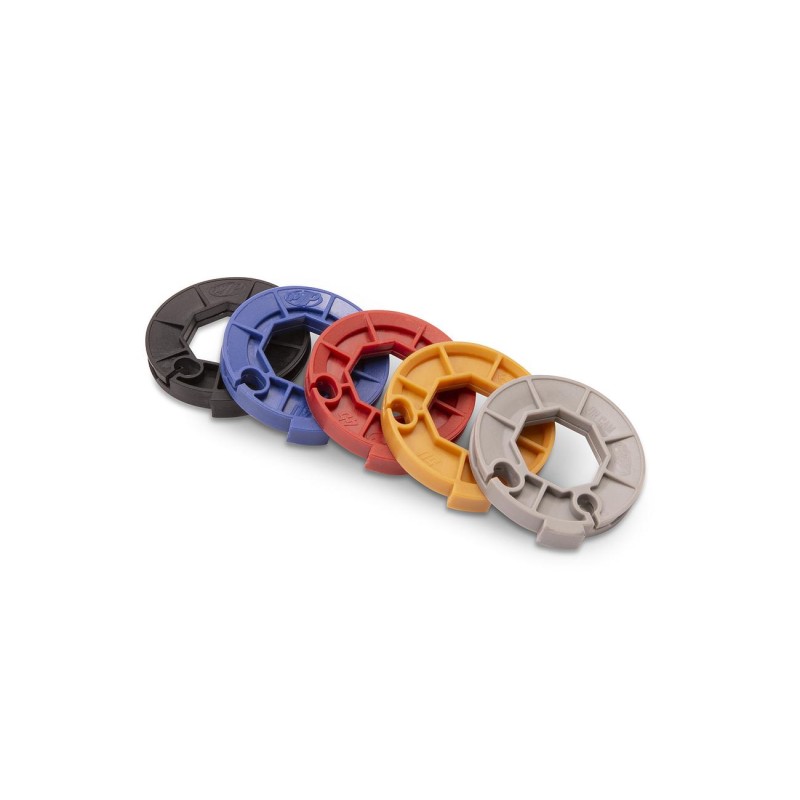

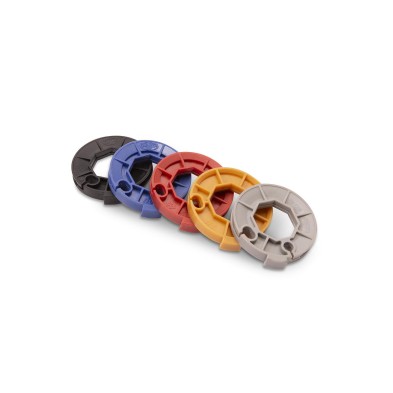

- Five different spools provide perfect throttle response for any condition: use smaller spools for a slower acceleration speed and larger spools for a faster acceleration speed. The included cam spool provides a progressive throttle response that some riders prefer.
- The improved throttle stop provides greater strength and durability. Snap-in elbows make installing and changing spools even easier. - REV3 Off-Road Kits are compatible with Motion Pro DirtControl V2 Lock-On Grips and ODI Lock-On Grips.
- Machined aluminum in-line cable adjusters make installation and adjustment easy.
- Easy to install and maintain.
- The upper cable section uses 6mm housing to provide solid support for the adjusters.

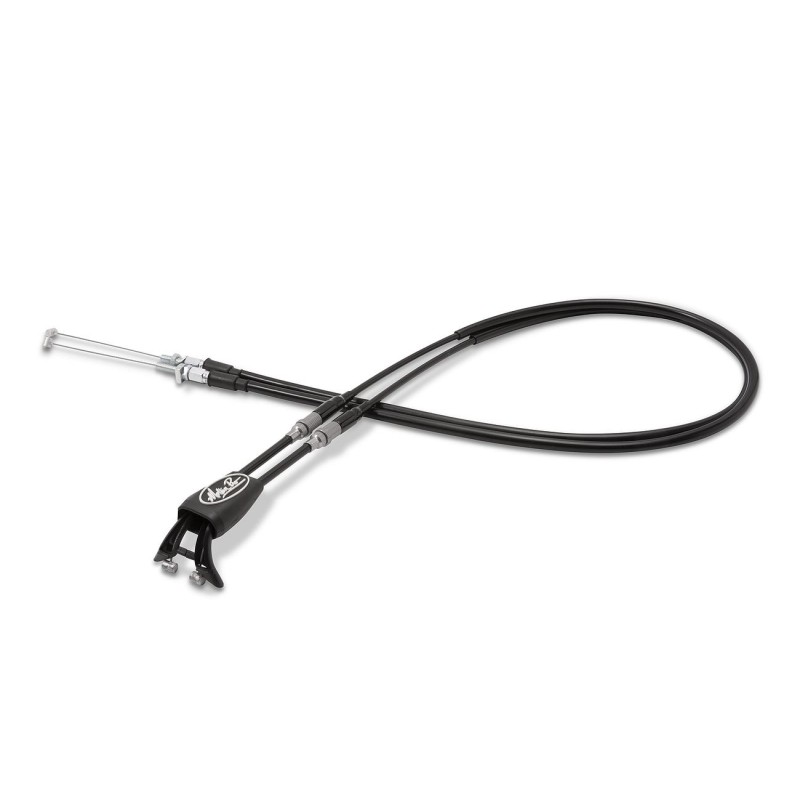

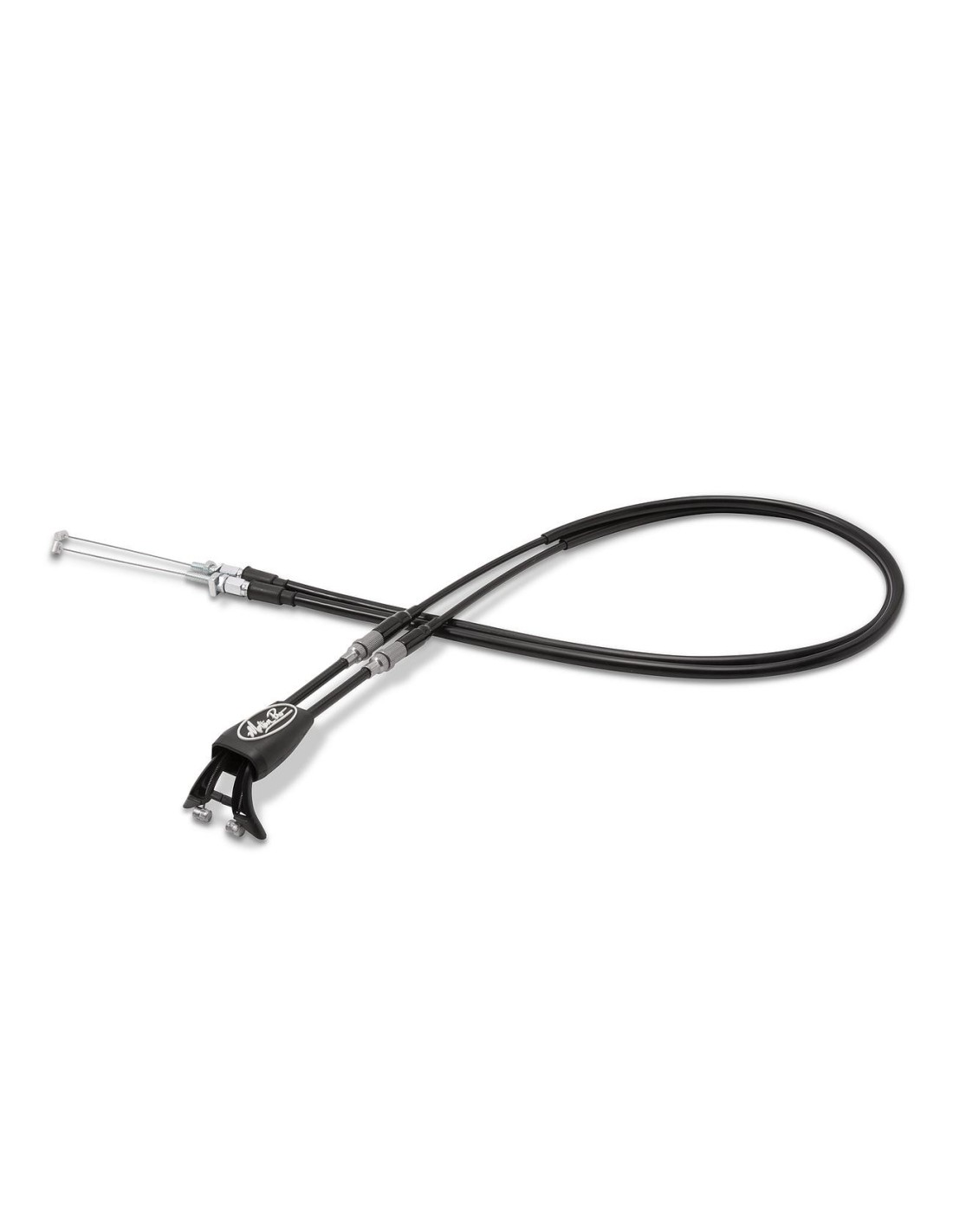

- The lower cable section uses 5mm PTFE-lined housing to reduce friction, increase routing flexibility, and reduce weight.
- Patented.
- Rev3 kits have cables specifically designed for model-specific mounting, but the Rev3 throttle itself is not model-specific. Therefore, in some situations, the Rev3 kit may not be a direct-mount installation due to space limitations on the stock handlebar. In some installations, it may be necessary to move other control components on the stock handlebar, shorten the Rev3 throttle tube and grip, install longer aftermarket handlebars, or possibly all of the above. It is up to the end user to determine the best mounting method on their motorcycle and ensure the Rev3 kit is installed correctly and with the correct clearances for safe operation. Installation should be performed by a qualified mechanic and carefully inspected for proper operation. Warning: Improper installation could result in serious bodily injury or death.
Specifications:
- Features: Cable included.
- For handlebar diameter: 22 mm (7/8")
- For handlebar diameter (Imperial): 7/8"
- For handlebar diameter (Metric): 22 mm
- Material: Aluminum, plastic.
- Style: Twist throttle, dual cable.
- Type: Handlebar.
Husaberg
FE250 - 2013-2014
FE350 - 2013
FE450 2014
FE501 2013-2014
Husqvarna
FC250 - 2014-2015
FC350 - 2014-2015
FC450 - 2015
FE250 - 2014-2016
FE350 2014-2016
FE350S 2015-2016
FE450 2016
FE501 2014-2016
FE501S 2015-2016
KTM
250 SX-F - 2005-2015
250 XC-F - 2007-2009, 2012-2015
250 XCF-W - 2007-2009, 2012-2016
250 XCF-W Champions Edition - 2010
250 XCF-W Six Days - 2011
350 EXC-F - 2012-2016
350 SX-F - 2011-2015
350 XC-F - 2011-2015
350 XCF-W - 2012-2016
350 XCF-W Six Days - 2015-2016
400 XC-W - 2009-2010
450 EXC - 2009-2012
450 EXC-R - 2008
450 SMR - 2012-2013
450 SX-F - 2007-2015
450 SX-F Factory Edition 2012-2013
450 XC-F 2008-2009, 2013-2015
450 XCR-W 2008
450 XC-W 2009
450 XC-W Champions Edition 2010
450 XC-W Six Days 2010-2011
500 EXC 2012-2016
500 XC-W 2012-2016
505 SX-F 2008
505 XC-F 2008-2009
530 EXC 2009-2012
530 EXC Champions Edition 2010
530 EXC-R 2008
530 XCR-W 2008
530 XC-W 2009
530 XC-W Six Days 2010-2011
