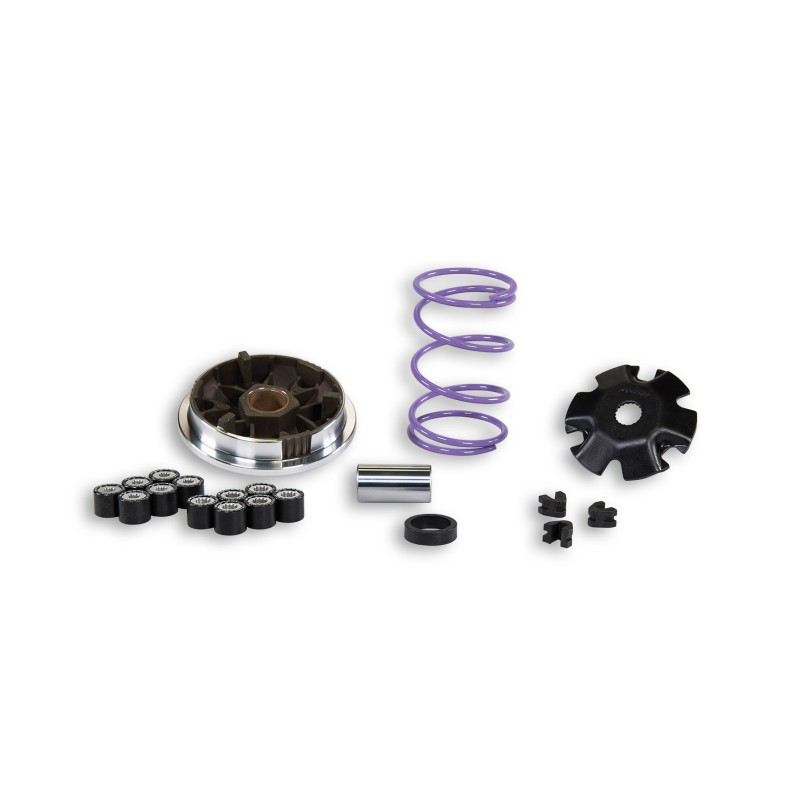

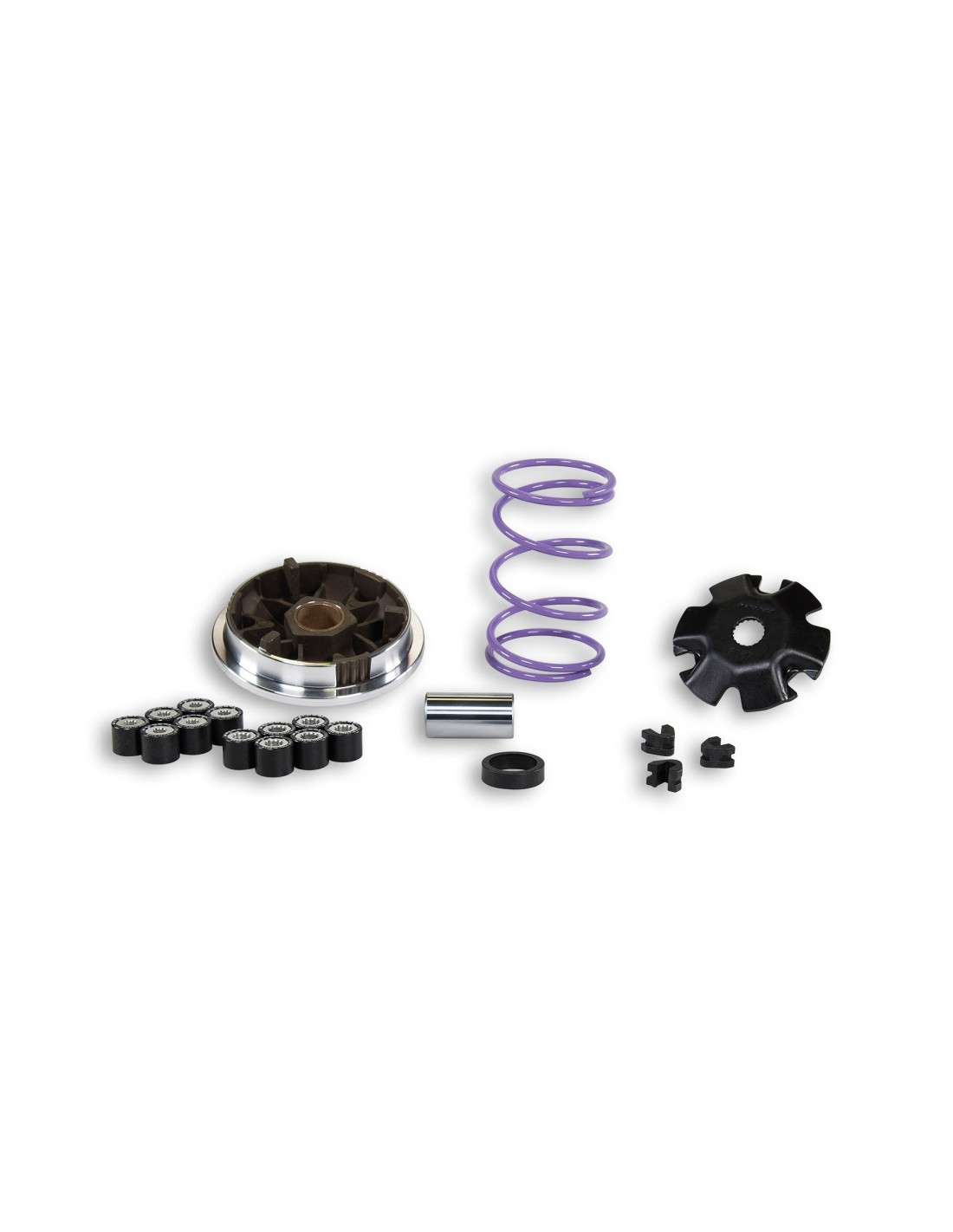

MALOSSI MULTIVAR MHR 51 8648
Description
MULTIVAR 2000 MHR
Innovative features of the new Multivar 2000 MHR variator
GILERA - PIAGGIO - VESPA
New profile of the sliding tracks
New HTROLL rollers
MALOSSI MULTIVAR MHR 51 8648
Description
MULTIVAR 2000 MHR
Innovative features of the new Multivar 2000 MHR variator
GILERA - PIAGGIO - VESPA
New profile of the sliding tracks
New HTROLL rollers
The variator has two sets of rollers with different weights
Hub made of steel alloy with a sliding surface partially hard chrome-plated and ground and polished
A wide range of replacement HTROLL roller weights has been developed for fine-tuning
In the Piaggio engine version, the dimensions of the tracks and rollers have been increased, and a new ramp cover has been added.
Technical Specifications
Availability range: 28 to 88 mm average diameter (effective dimension on the belt sliding surface: 20 mm to 99.5 mm diameter)
Moving pulley half made of special high-silicon steel alloy with a hardened nickel surface treatment
Sliding bushing made of self-lubricating sintered bronze
Shaft made of steel alloy with a hard chrome-plated sliding surface, ground and polished
Ramp cover made of heat-treated steel with a polished surface treatment
High-strength calibrated HTROLL rollers made of CPT with a specific formula and marked with their respective weight
Contrast spring of the driven pulley half made of pre-hardened chrome-silicon steel and painted in various colors indicating the respective K.
The Minarelli version includes a ventilated fixed pulley half made of high-silicon aluminum with a hardened chemical nickel surface.
With a variator of such technical sophistication, don't be surprised if your scooter gains acceleration, smoother shifting, greater mechanical "quietness" at high speeds, and consistent performance that are unknown in the base version.
GILERA
GILERA EASY MOVING 50 2T
GILERA
GILERA STORM 50 2T
GILERA
GILERA TYPHOON 50 2T
PIAGGIO
PIAGGIO FREE 50 2T
PIAGGIO
PIAGGIO NRG MC2 50 2T LC <-1997
PIAGGIO
PIAGGIO NRG 50 2T LC
PIAGGIO
PIAGGIO NTT 50 2T LC
PIAGGIO
PIAGGIO QUARTZ 50 2T LC
PIAGGIO
PIAGGIO SFERA RESTYLING 50 2T
PIAGGIO
PIAGGIO ZIP Fast Rider 50 2T
PIAGGIO
PIAGGIO ZIP SP 50 2T LC <-2000
VESPA
VESPA ET2 50 2T <-1999
YAMAHA ZUMA 50 2T
