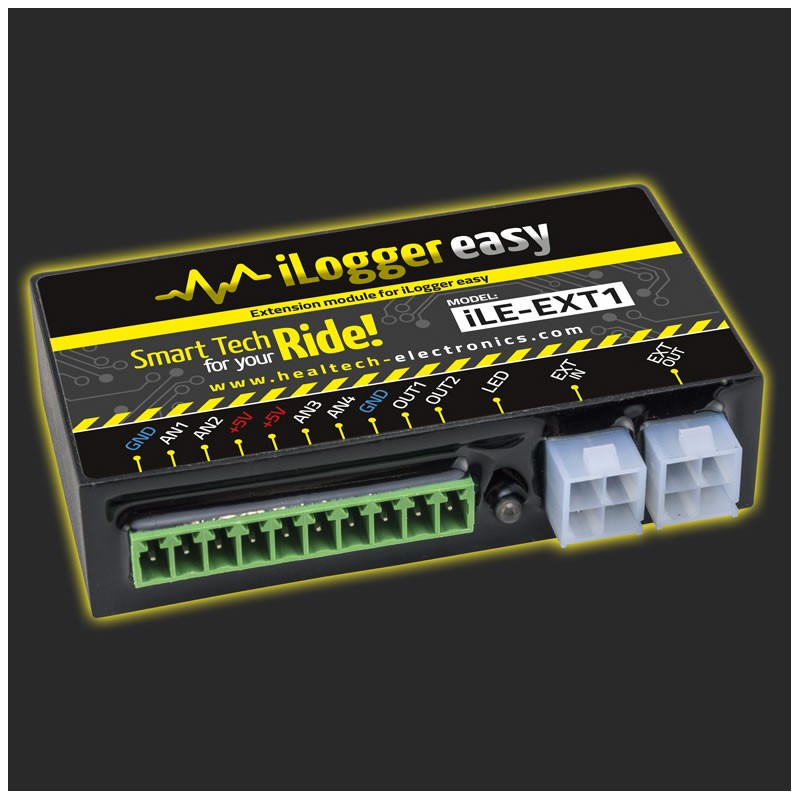

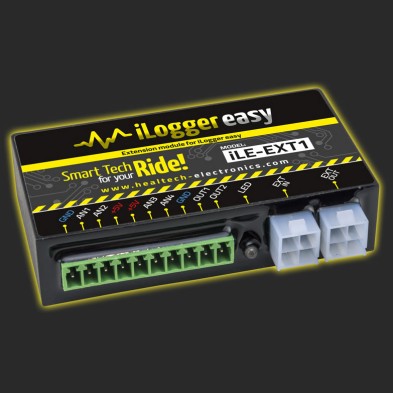

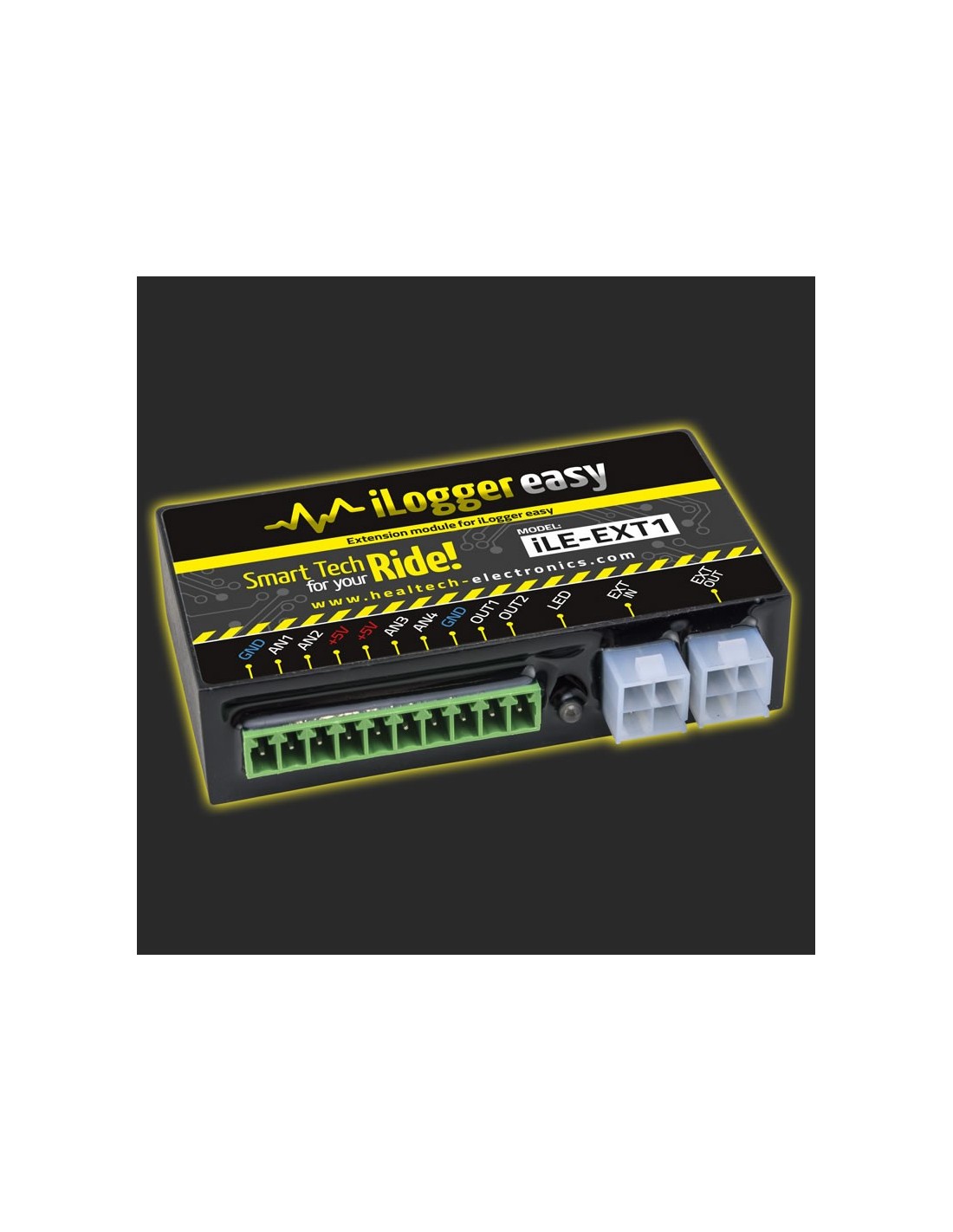

HEALTECH EASY ILE-EXT1 EXPANSION MODULE
Expansion module for the Healtech iLogger.
The iLE-EXT1 extension module provides additional input and output channels for the iLE datalogger.
Multiple iLE-EXT1 extension modules can be daisy chained together.
HEALTECH EASY ILE-EXT1 EXPANSION MODULE
Expansion module for the Healtech iLogger.
The iLE-EXT1 extension module provides additional input and output channels for the iLE datalogger.
Multiple iLE-EXT1 extension modules can be daisy chained together.
iLE-EXT1 Features
Input Channels (+4)
The main iLE-1 module provides five (5) input channels.
The EXT1 extension module adds another four (4) channels which can be digital or analog (0-5V).
Output Channels (+2)
The main iLE-1 module provides one (1) output channel.
The iLE-EXT1 extension module adds two (2) more output channels.
These channels can supply a switched GND signal to control relays, fans, pumps, etc.
Any analog or digital input from the iLE-EXT1 module can be used as a control signal for an output channel.
+5V Power Supply
The iLE-EXT1 extension module provides two (2) +5V and two (2) GND power connections to supply any additional sensors that are not powered by the vehicle's main wiring.
Kit Contents
iLE-EXT1 Expansion Module
iLE/iLE-EXT1 connection cable
Blank cover for the CAN connector.
