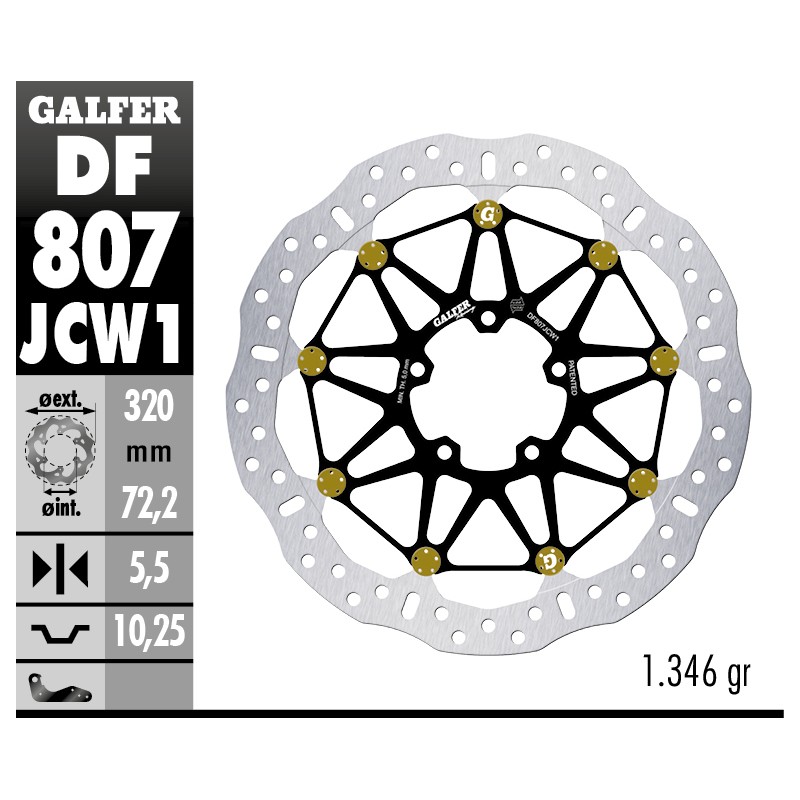

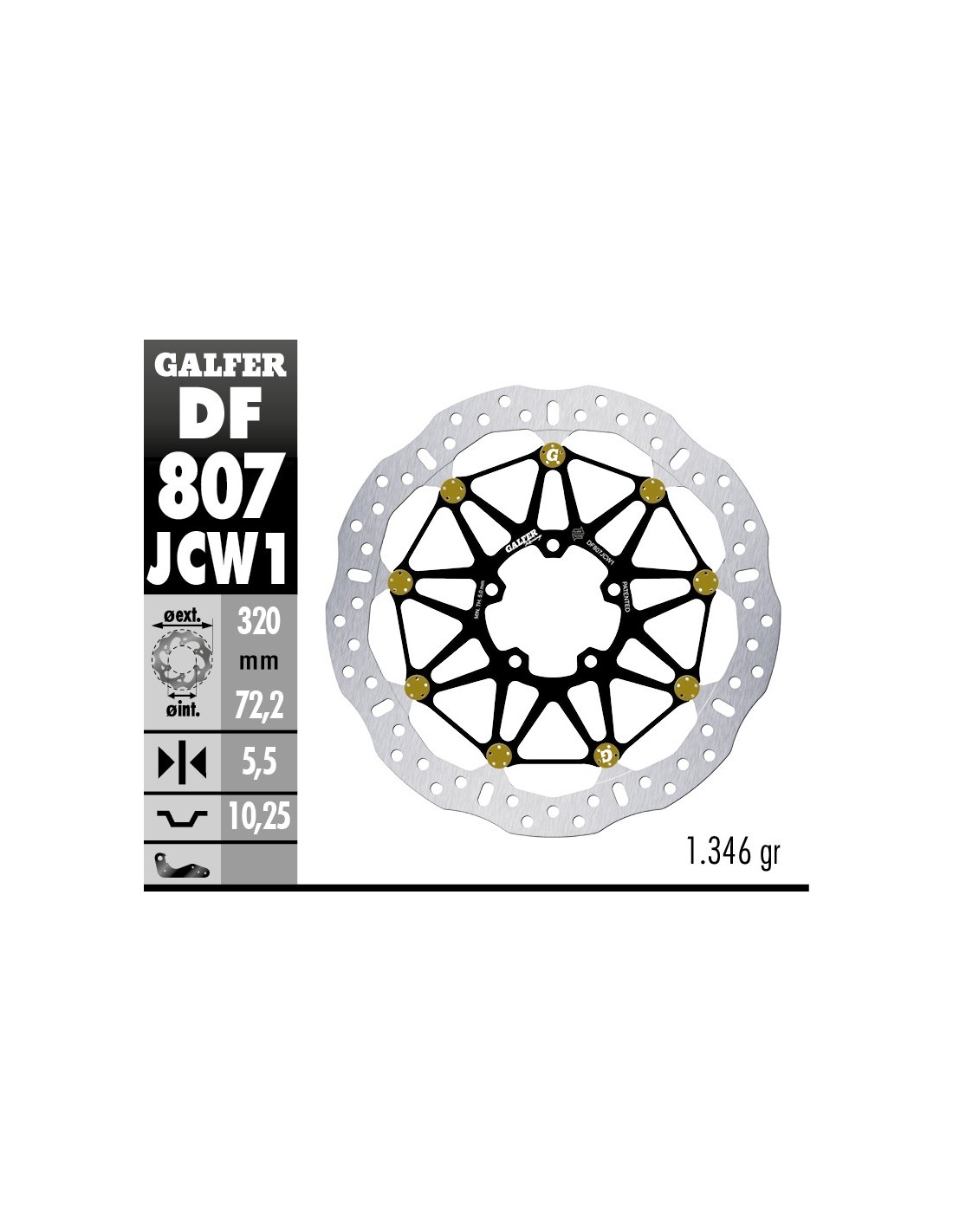

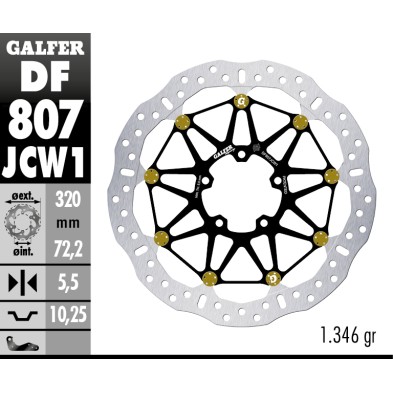

GALFER FRONT BRAKE DISC W FLOATECH RACING DF807JCW1G03

GALFER FRONT BRAKE DISC W FLOATECH RACING DF807JCW1G03

FLOATECH RACING 320X5.5MM

DF807JCW1G03

This is Galfer's JCW1 competition brake disc. It features a brake track made of high-carbon, laser-cut stainless steel, while the core is made of high-strength aluminum (7075 T6 - 6082 T6), offering high strength and significantly reducing the disc's weight.

It is TÜV-approved (KBA no. 61148). It is specifically designed for supersport/sport and racing motorcycles.

These are manufactured using the patented Floatech system:

More stable and lighter: This allows the brake discs to perform better and be more stable in any position or temperature, as well as contributing to a reduction in weight, and therefore, improved motorcycle maneuverability and increased rider confidence.

Improved thermal behavior: Above 200ºC (high temperatures), the brake track tends to expand in all directions. However, thanks to the Floatech system, this increase can be controlled and prevents potential problems with the brake track blocking relative to the disc core.

Improved thermal cutoff: Thanks to the gold-nitrided pins that connect the track and the disc core, they are made of titanium and improve thermal cutoff between the two parts due to their low temperature conductivity. This does not occur, for example, with other materials such as aluminum, which is more conductive than titanium. Optimized structure: Based on studies conducted on disc stresses during braking and the possibility of designing directional discs (left/right) for each side of the wheel, it has been possible to determine the key points of the hub, allowing for an optimal design that provides maximum rigidity with the lowest possible weight. Perfect self-alignment of the pads with the brake disc: This allows for expansion of the track, preventing loss of floatation, thanks to a washer pack and a preloaded spring. The spring tightens and secures the track so that it maintains the same position at all times and is correctly aligned with the brake pads in any situation. This eliminates the free movement characteristic of most discs, preventing the pads from being pushed out uncontrollably when strong vibrations and gyroscopic forces are present when the bike moves during competition, which can cause difficulties when braking. In addition to these advantages, unlike other brands, Galfer discs generally stand out for:

They offer greater braking power.

Lower operating temperatures.

Less prone to warping.

Excellent corrosion resistance.

Make Model Model Year Number of Brakes Position

DUCATI 848 STREETFIGHTER 848cc 11 - 12 2 Front brake disc

DUCATI DESERT X 937cc ≥ 21 2 Front brake disc

DUCATI DESERT X RALLY 937cc ≥ 24 2 Front brake disc

DUCATI DIAVEL 1200 1200cc ≥ 11 2 Front brake disc

DUCATI DIAVEL 1260cc ≥ 19 2 Front brake disc

DUCATI DIAVEL LAMBORGHINI 1260cc ≥ 21 2 Front brake disc

DUCATI DIAVEL S 1260cc ≥ 19 2 Front brake disc

DUCATI DIAVEL STRADA 1200 1200cc 13 - 18 2 Front brake disc

DUCATI DIAVEL V4 1150cc ≥ 22 2 Front brake disc

DUCATI DIAVEL X 1200 1200cc 16 - 18 2 Front brake disc

DUCATI DIAVEL X S 1200 1200cc 16 - 18 2 Front brake disc

DUCATI HYPERMOTARD 821cc ≥ 13 2 Front brake disc

DUCATI HYPERMOTARD 939 937cc ≥ 16 2 Front brake disc

DUCATI HYPERMOTARD 950 937cc ≥ 19 2 Front brake disc

DUCATI HYPERMOTARD 950 RVE 937cc ≥ 21 2 Front brake disc

DUCATI HYPERMOTARD 950 S 937cc ≥ 19 2 Front brake disc

DUCATI HYPERMOTARD 950 SP 937cc ≥ 19 2 Front brake disc

DUCATI HYPERMOTARD SP 821cc ≥ 13 2 Front brake disc

DUCATI HYPERMOTARD SP 939 937cc ≥ 16 2 Front brake disc

DUCATI HYPERSTRADA 821cc ≥ 13 2 Front brake disc

DUCATI HYPERSTRADA 939 937cc ≥ 16 2 Front brake disc

DUCATI MONSTER 1100cc ≥ 09 2 Front brake disc

DUCATI MONSTER 1200 1200cc ≥ 14 2 Front brake disc

DUCATI MONSTER 796 796cc ≥ 10 2 Front brake disc

DUCATI MONSTER 796 ABS 796cc ≥ 10 2 Front brake disc

DUCATI MONSTER 797 803cc ≥ 17 2 Front brake disc

DUCATI MONSTER 797cc ≥ 17 2 Front brake disc

DUCATI MONSTER 821 821cc ≥ 14 2 Front brake disc

DUCATI MONSTER 821 STEALTH 821cc ≥ 19 2 Front brake disc

DUCATI MONSTER 937 937cc ≥ 21 2 Front brake disc

DUCATI MONSTER 937 SP 937cc ≥ 22 2 Front brake disc

DUCATI MONSTER EVO 1100cc ≥ 11 2 Front brake disc

DUCATI MULTISTRADA 1200 1200cc 10 - 14 2 Front brake disc

DUCATI MULTISTRADA 1200 1200cc ≥ 15 2 Front brake disc

DUCATI MULTISTRADA 1200 ENDURO 1200cc ≥ 15 2 Front brake disc

DUCATI MULTISTRADA 1200 PIKES PEAK 1200cc 13 - 14 2 Front brake disc

DUCATI MULTISTRADA 1200 S GRAN TURISMO 1200cc 13 - 14 2 Front brake disc

DUCATI MULTISTRADA 1200 SS 1200cc 10 - 14 2 Front brake disc

DUCATI MULTISTRADA 1200 ST 1200cc 10 - 14 2 Front brake disc

DUCATI MULTISTRADA 1260 1260cc ≥ 18 2 Front brake disc

DUCATI MULTISTRADA 950 937cc ≥ 17 2 Front brake disc

DUCATI MULTISTRADA 950 S 937cc ≥ 19 2 Front brake disc

DUCATI MULTISTRADA V4 1103cc ≥ 21 2 Front brake disc

DUCATI SCRAMBLER 1100 1100cc ≥ 18 2 Front brake disc

DUCATI SCRAMBLER 1100 SPECIAL 1100cc ≥ 18 2 Front brake disc

DUCATI SCRAMBLER 1100 SPORT 1100cc ≥ 18 2 Front brake disc

DUCATI SCRAMBLER 1100 SPORT PRO 1100cc ≥ 20 2 Front brake disc

DUCATI SUPERSPORT 950 937cc ≥ 17 2 Front brake disc

DUCATI SUPERSPORT 950 S 937cc ≥ 17 2 Front brake disc

DUCATI X DIAVEL 1260 1260cc 19 - 23 2 Front brake disc

DUCATI X DIAVEL 1260 DARK 1260cc 21 - 23 2 Front brake disc

DUCATI X DIAVEL 1260 S 1260cc 19 - 23 2 Front brake disc

DUCATI XDIAVEL BLACK STAR 1260cc 21 - 23 2 Front brake disc

DUCATI XDIAVEL NERA 1260cc 22 - 23 2 Front brake disc
