GALFER CUBIQ FIXED BRAKE DISC DF496Q

GALFER CUBIQ FIXED BRAKE DISC DF496Q

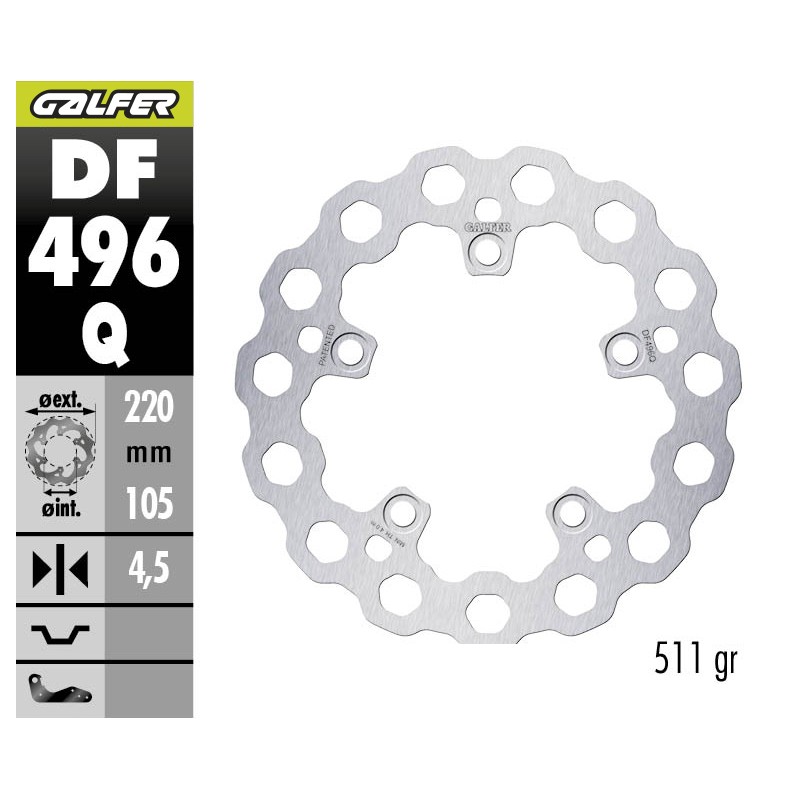

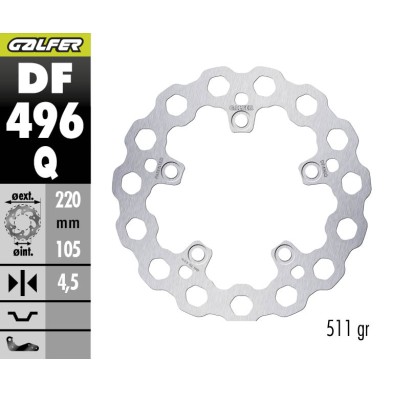

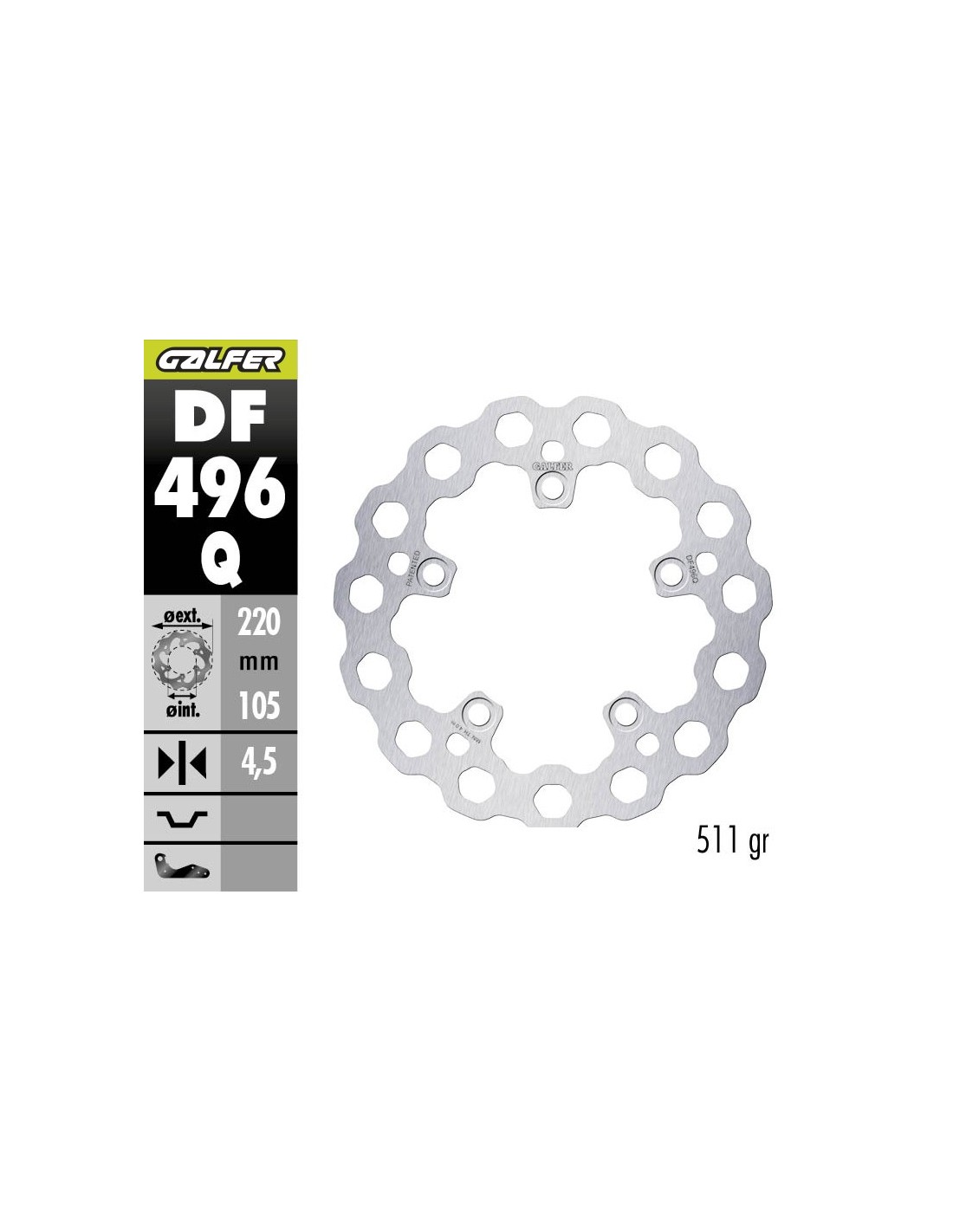

CUBIQ FIXED DISC 220X4.5MM

DF496Q

This is the "Wave" type brake disc, made of high-carbon stainless steel and laser-cut.

It features the original OEM size and is TÜV certified (KBA no. 61147).

These are the advantages of Wave W discs:

Lower sprung weight.

More braking power.

Better heat dissipation.

Excellent corrosion resistance.

Less prone to warping.

The contact surface of the braking track between the disc and the pad remains cleaner.

Rear

Make Model Model Year Number of Brakes Position

YAMAHA MT-10 1000cc ≥ 16 2 Rear Brake Disc

YAMAHA MT-10 SP 1000cc ≥ 17 2 Rear Brake Disc

YAMAHA MT-10 TOURER EDITION 1000cc ≥ 18 2 Rear Brake Disc

YAMAHA YZF-R1 1000cc 04 - 05 2 Rear Brake Disc

YAMAHA YZF-R1 1000cc 09 - 11 2 Rear Brake Disc

YAMAHA YZF-R1 1000cc 07 - 08 2 Rear Brake Disc

YAMAHA YZF-R1 1000cc ≥ 06 2 Rear Brake Disc

YAMAHA YZF-R1 1000cc 15 - 23 2 Disc Rear brake disc

YAMAHA YZF-R1 TCS 1000cc 12 - 14 2 Rear brake disc

YAMAHA YZF-R1M 1000cc 15 - 24 2 Rear brake disc

YAMAHA YZF-R46 600cc ≥ 05 2 Rear brake disc

YAMAHA YZF-R6 600cc ≥ 05 2 Rear brake disc

YAMAHA YZF-R6 600cc 08 - 16 2 Rear brake disc

YAMAHA YZF-R6 600cc 17 - 20 2 Rear brake disc

YAMAHA YZF-R6 600cc 06 - 07 2 Rear brake disc

YAMAHA YZF-R6 600cc 03 - 04 2 Rear brake disc

YAMAHA YZF-R6 RACE 600cc 21 - 23 2 Rear Brake Discs

YAMAHA YZF-R9 900cc ≥ 25 2 Rear Brake Discs
