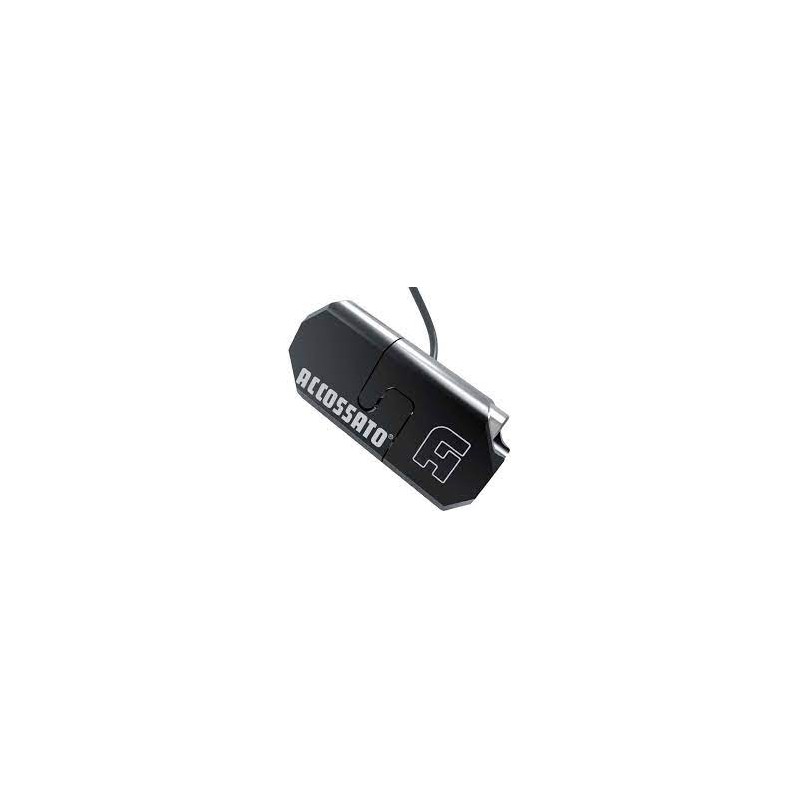

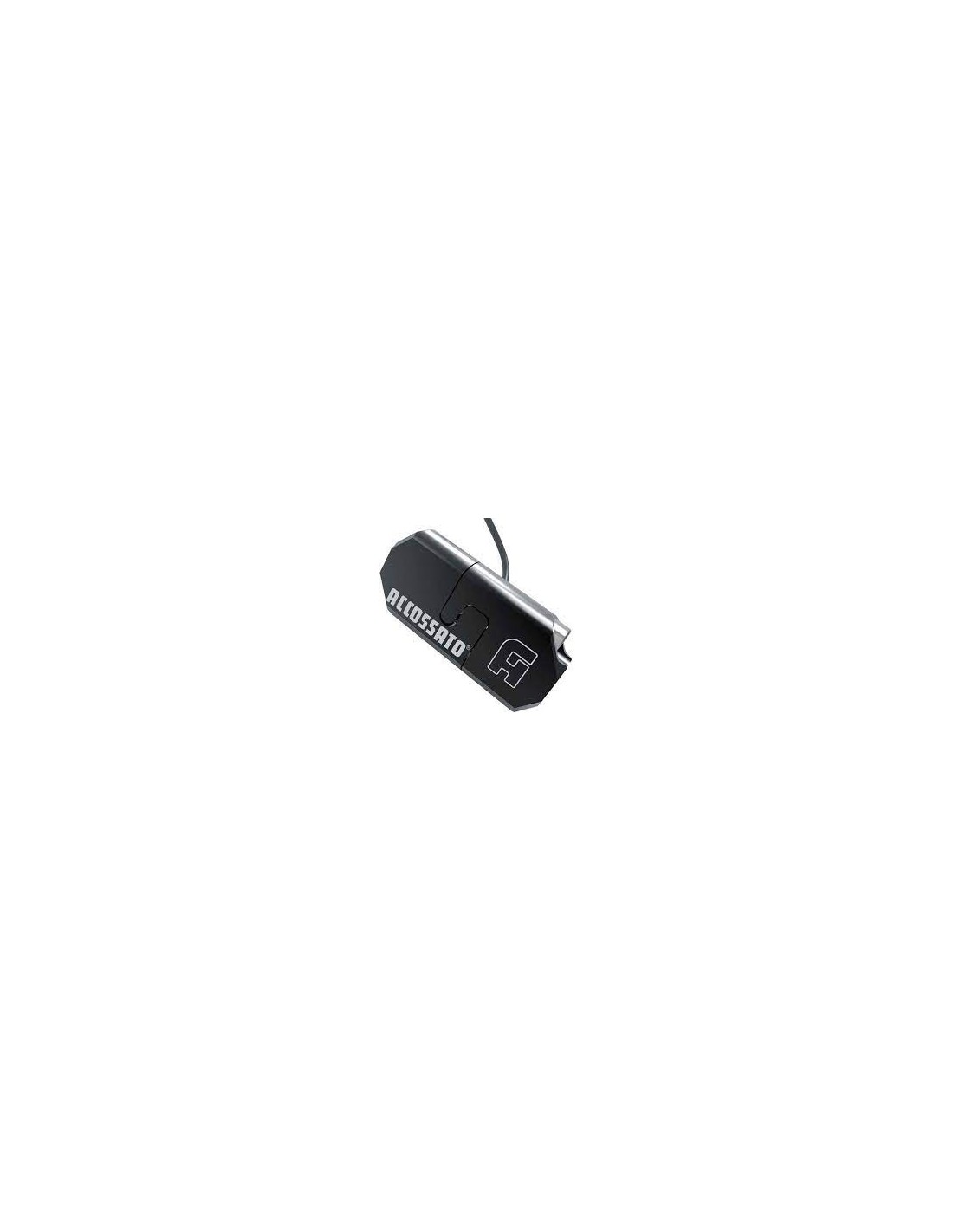

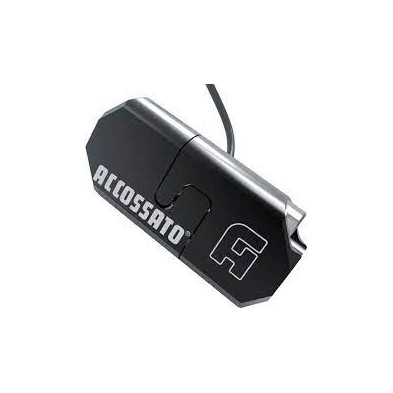

ACCOSSATO QUICK SHIFTER IN EXTENSION

The new quickshifter accossato sensor has been designed to ensure the possibility of adjusting the shifting sensitivity according to the needs of the rider and the gearbox of his motorcycle.

Thanks to the study of the technicians who follow our riders on the track, we have developed this new product to be able to meet the most demanding demands.

- Quickshifter sensor data sheet

- The device sends a NO signal to the control unit, which cuts off the power to the engine to allow the engagement of a higher gear. In this way the rider can operate the gearbox while keeping the throttle open, reducing times to a minimum.

- Main body material: anodized aluminum alloy (ergal 7075)

- Both holes for inserting the motorcycle gearbox rod are m6 threaded, and allow both right-hand and left-hand threaded screwing.

- Sensor dimensions:

- ag_sens-01: 43x26x10

- ag_sens-02 : 44.5x22x10

- Sensor weight:

- ag_sens-01: 30 g

- ag_sens-02: 25 g

- Sensor load range:

- ag_sens-01: min. 4 kg - max. 25 kg

- ag_sens-02: min. 3 kg - max. 30 kg

- The sensor is sold with 25 cm of cable and as a terminal it uses a female connector with 2 universal in-line mini mate-n-lok connectors.

On request, it is also possible to have 0.8 m of free cable with the corresponding male connector already wired, to connect to the output cables of the control unit (code ag_cav08)

- Material: Aluminum AL 7075

- Support pitch: M6 right/left

- Dimensions: 43 x 26 x 10

- Weight: 30 gr

- Cable length: 25 cm

- Connector: 2-port female collector

- Output yes
